Home >> Buick >> 2011 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Air Door Actuator / Motor >> Service and Repair >> Mode Control Cam Actuator Replacement (Left Hand Drive)

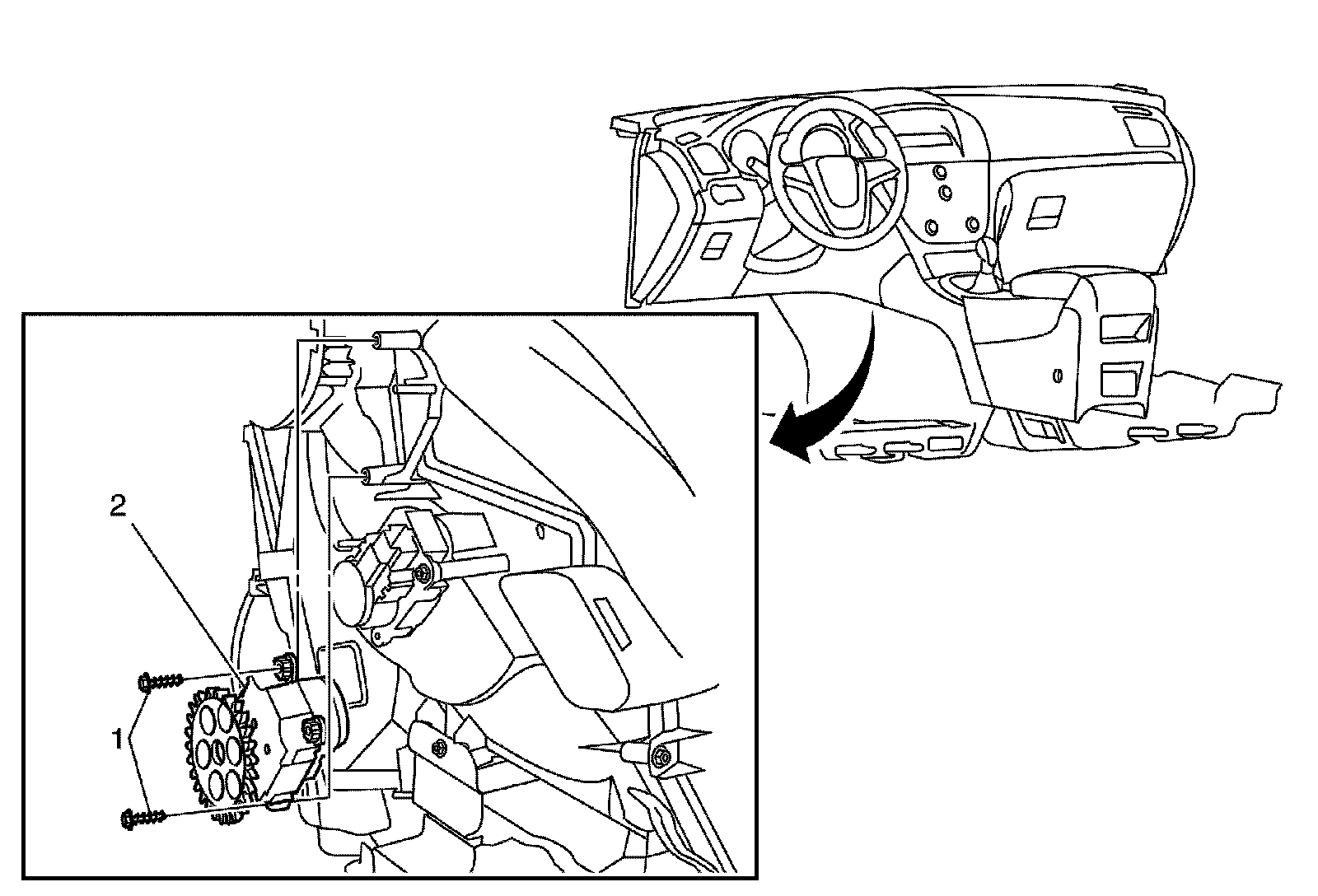

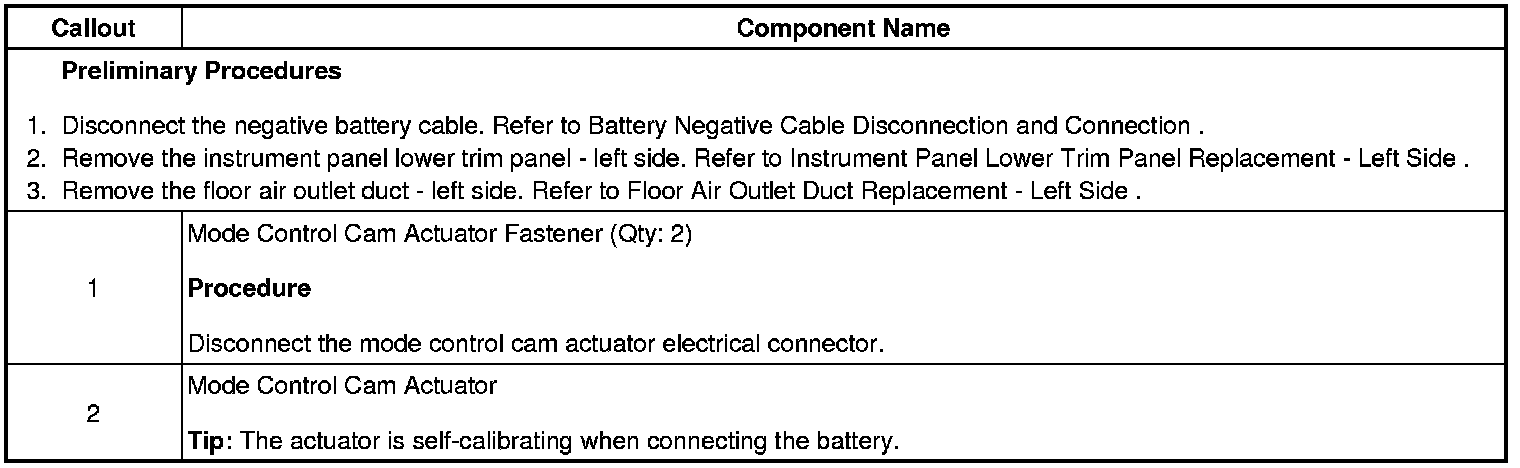

Mode Control Cam Actuator Replacement (Left Hand Drive)




Mode Control Cam Actuator Replacement (Left Hand Drive)
