64. Engine Oil Cooler Installation

Engine Oil Cooler Installation (LDK, LHU) (2.0L)





Note: The oil cooler cannot be flushed or otherwise cleaned of contamination. Replace the oil cooler if a mechanical condition is suspected that could cause the oil cooler to be contaminated.

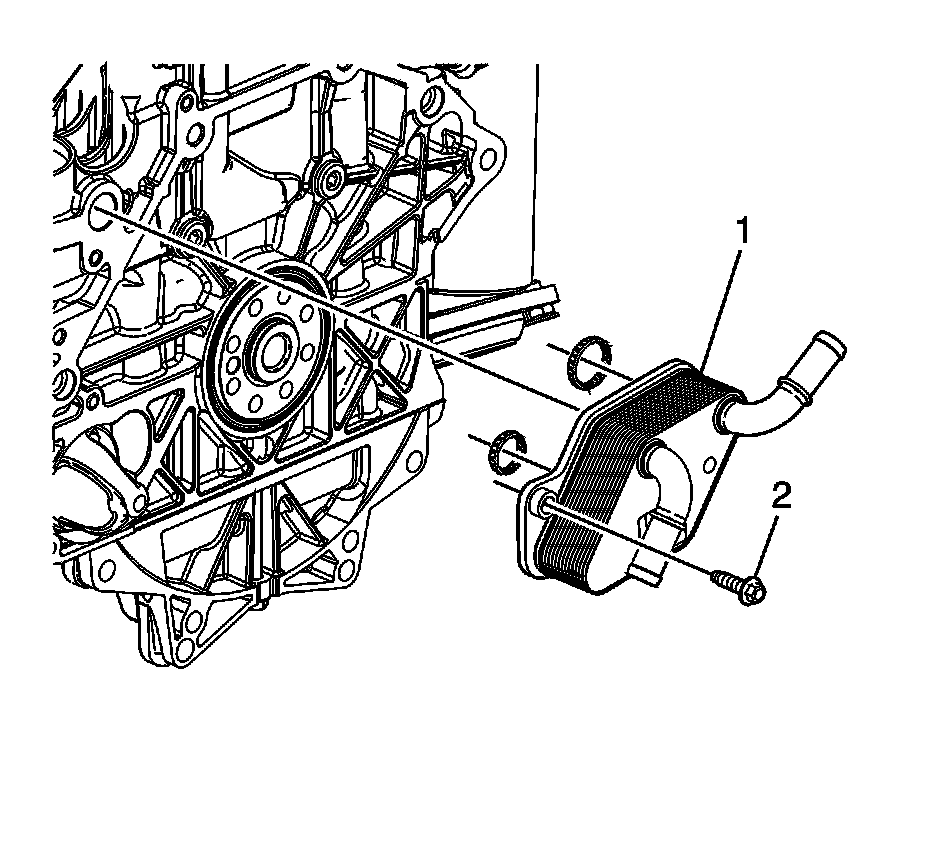

1. Install the oil cooler (1).

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the oil cooler bolts (2) and tighten to 25 Nm (18 lb ft).
