Suspension - Right Front Harness Routing (F45)
Suspension - Right Front Harness Routing (F45)
Harness Routing Views

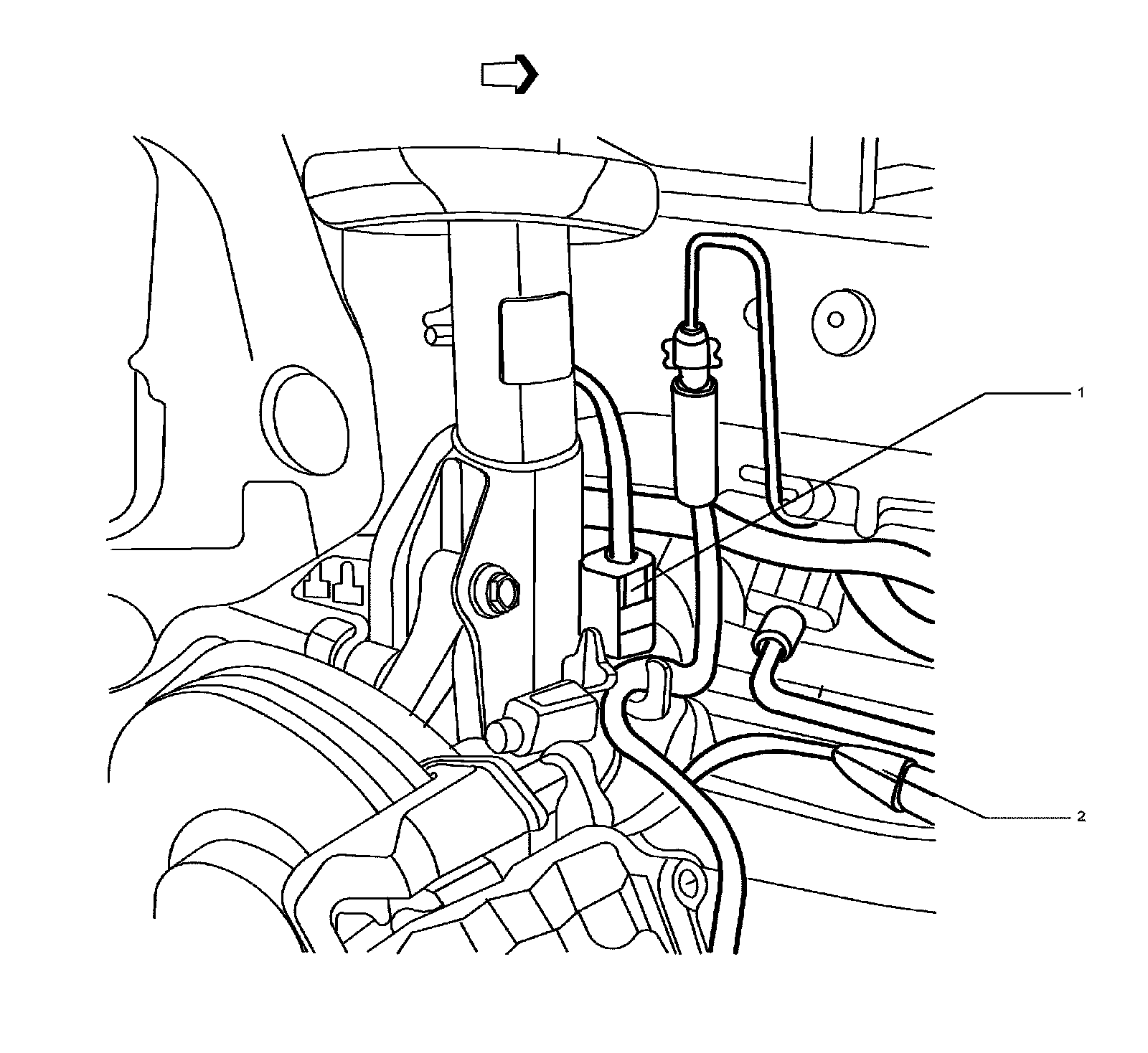

Suspension - Right Front Harness Routing (F45)
1
- X141
2
- X140
