Power Moding Schematics




Power Moding Schematics

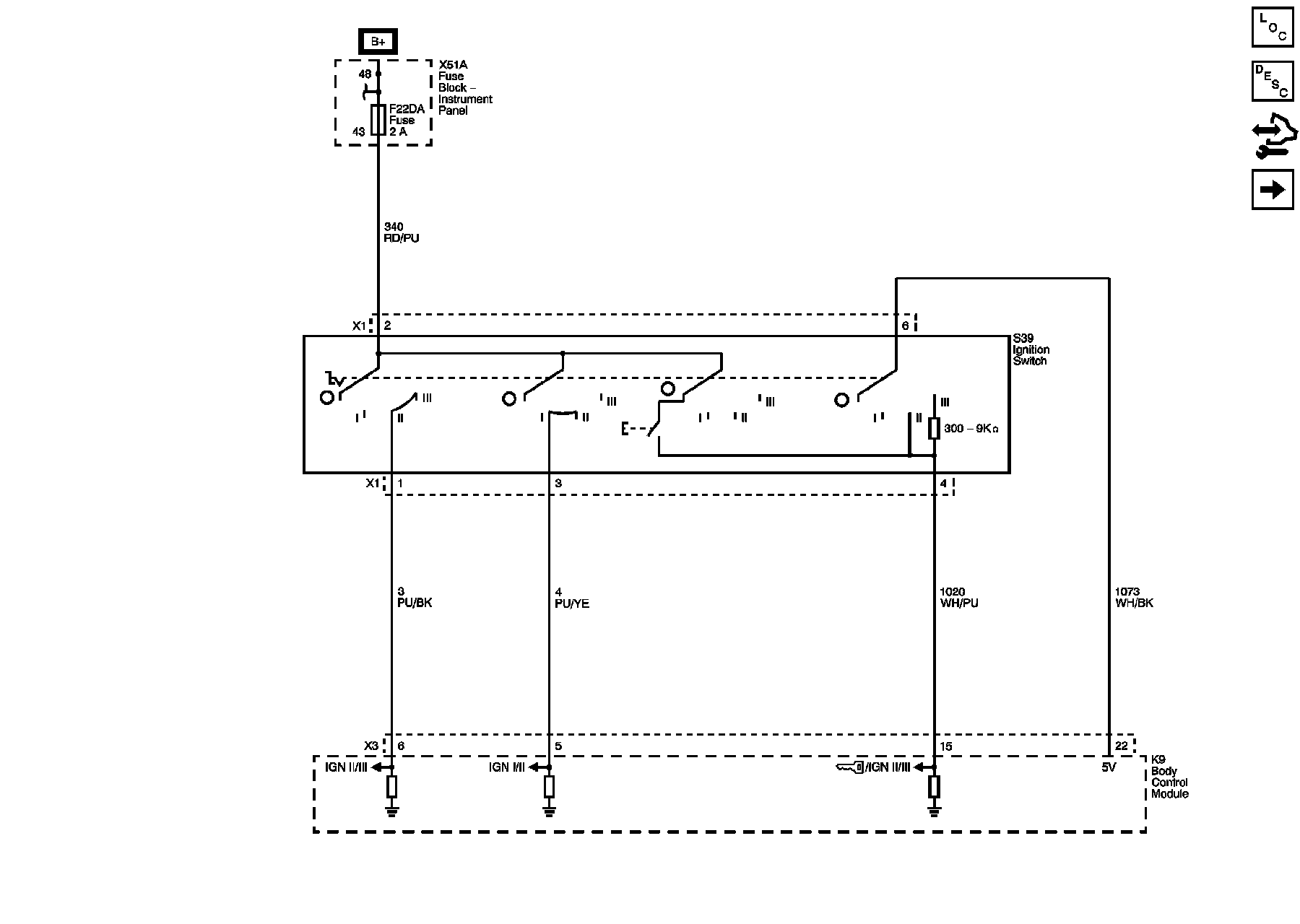

S39 Ignition Switch

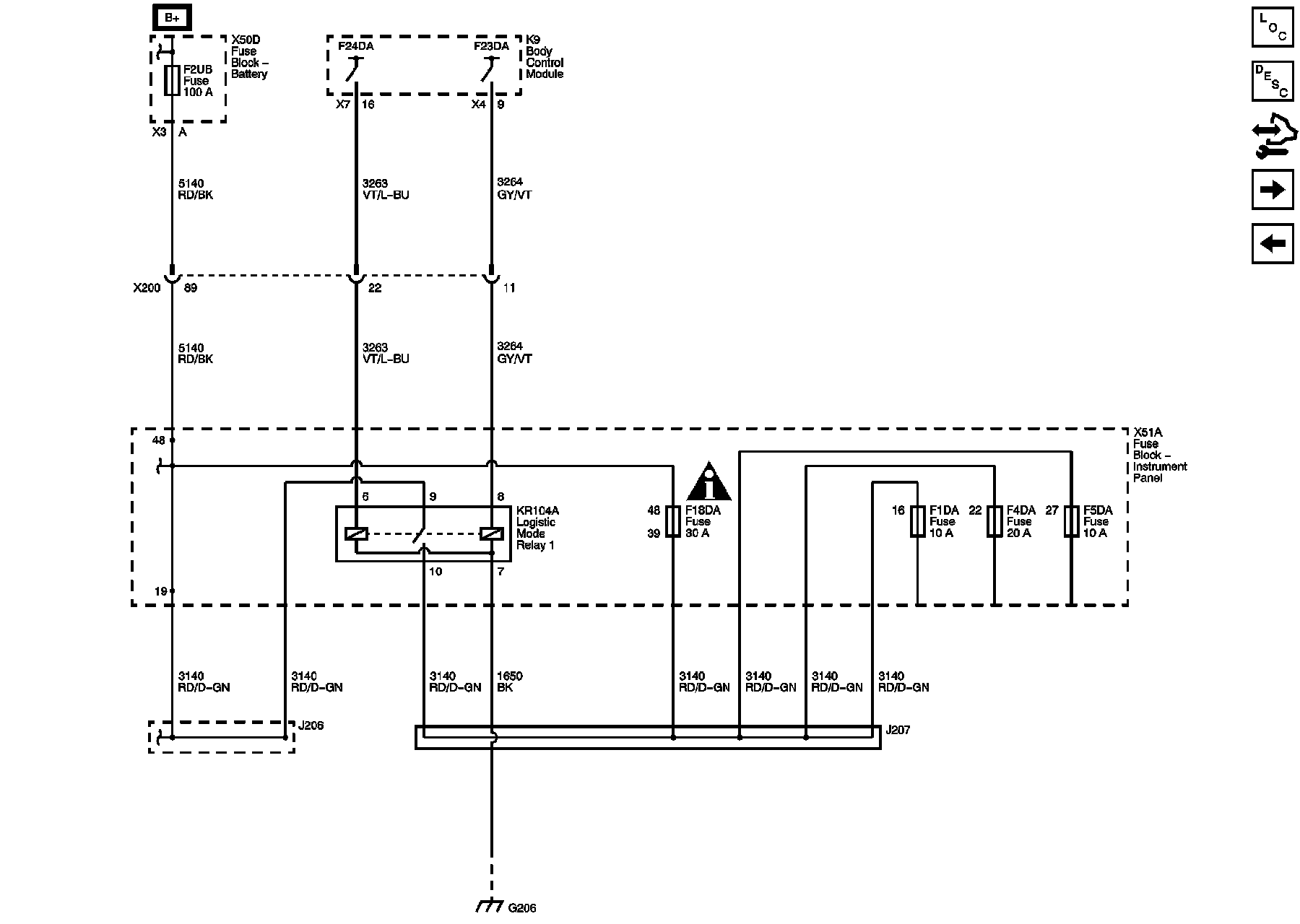

KR104A Logistic Mode Relay 1

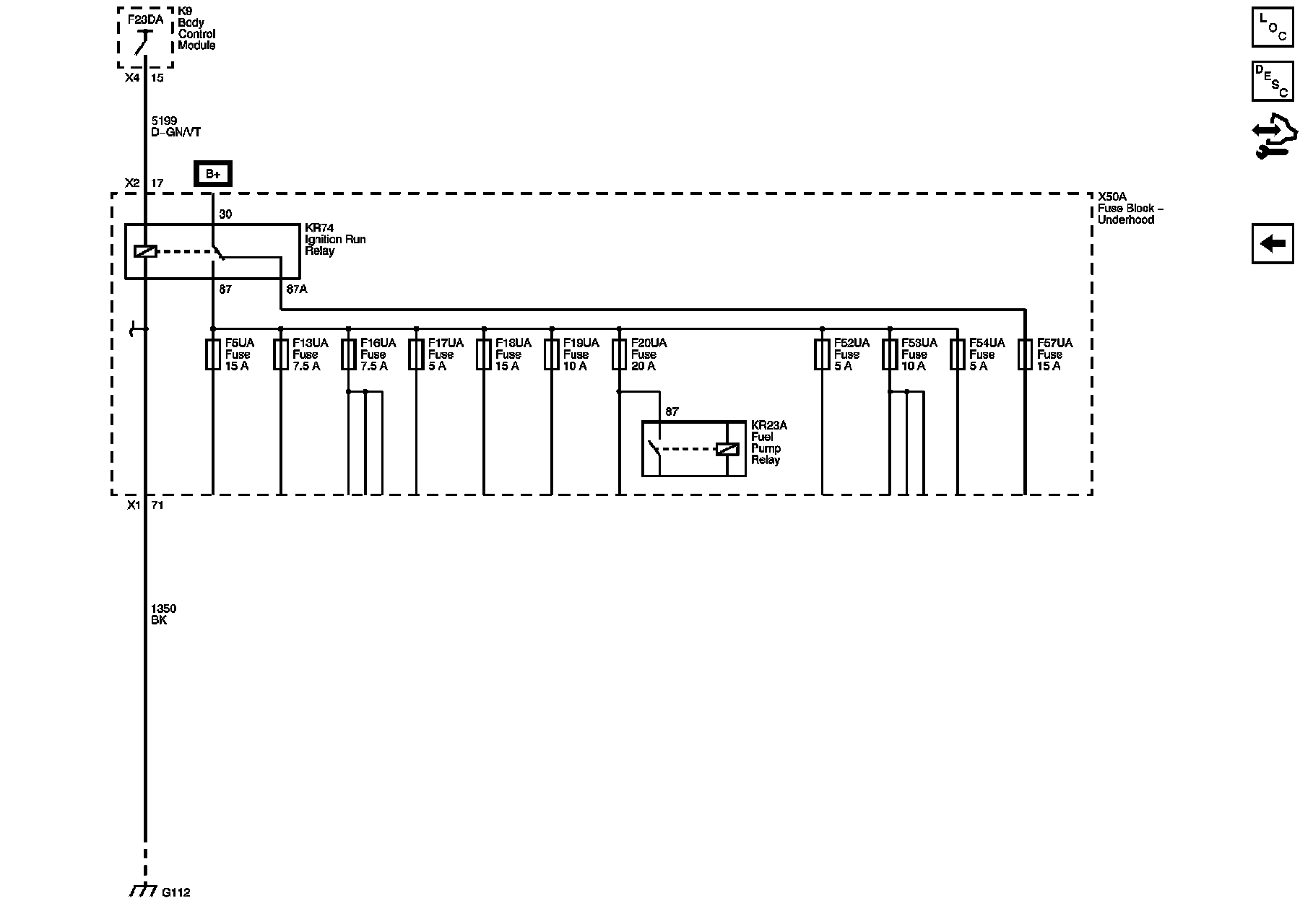

KR74 Ignition Run Relay
