Home >> Buick >> 2011 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Schematics >> Power Distribution Schematic 4

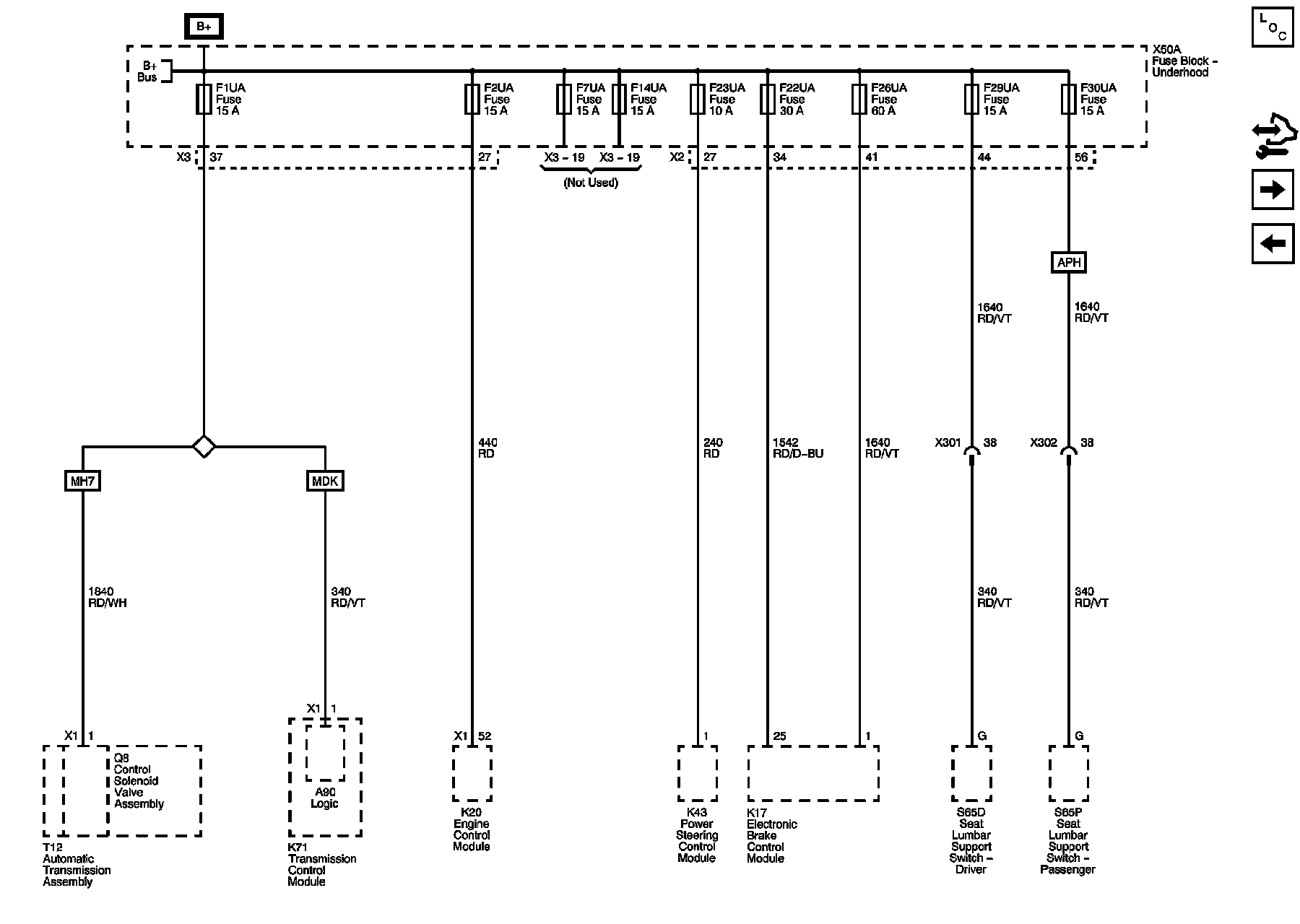

Power Distribution Schematic 4




Power Distribution Schematics

F1UA, F2UA, F7UA, F14UA, F22UA, F23UA, F26UA, F29UA, and F30UA Fuses
