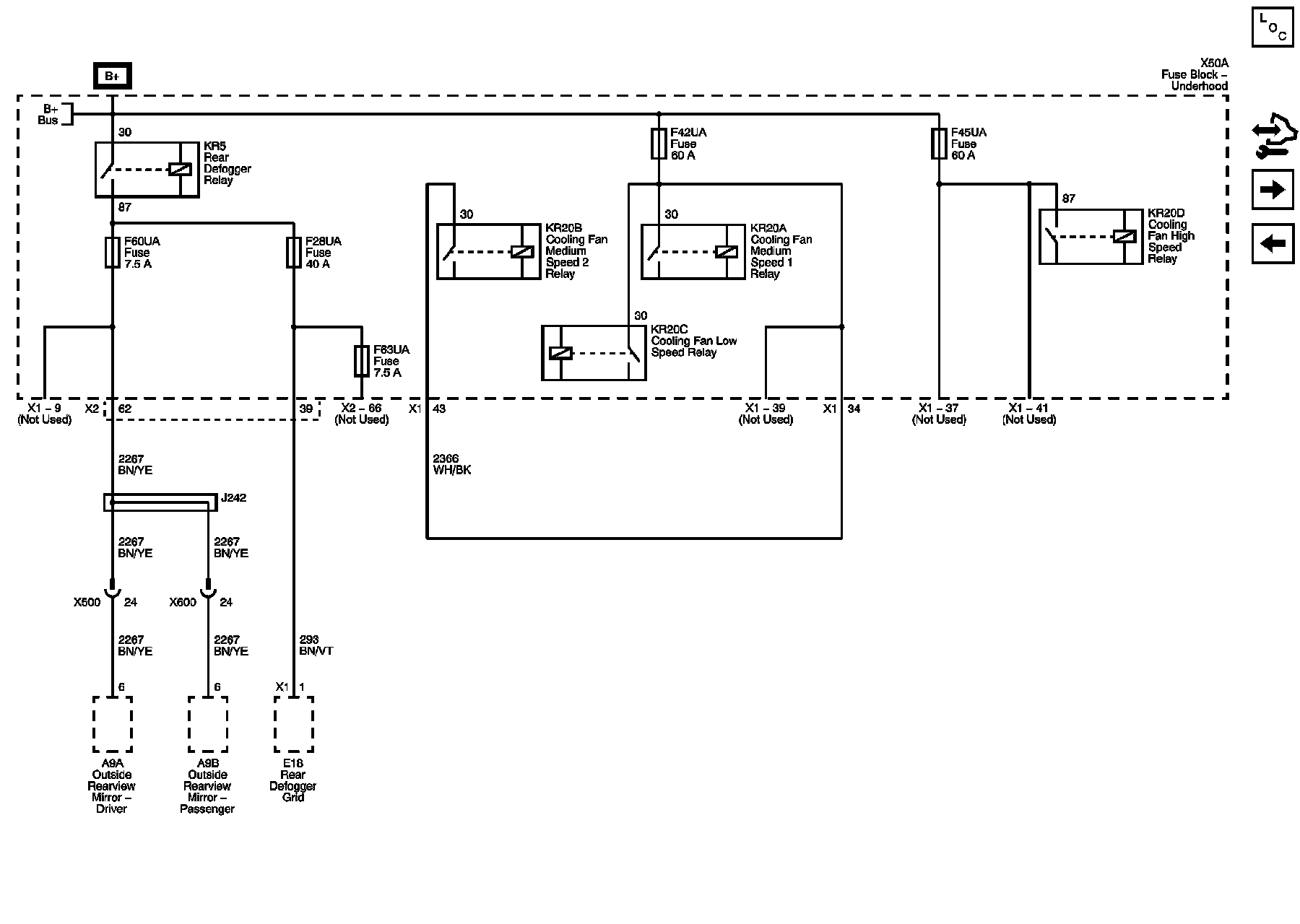

Power Distribution Schematic 11




Power Distribution Schematics

F28UA, F42UA, F45UA, and F60UA Fuses
