Radio/Navigation System Schematics




Radio/Navigation System Schematics

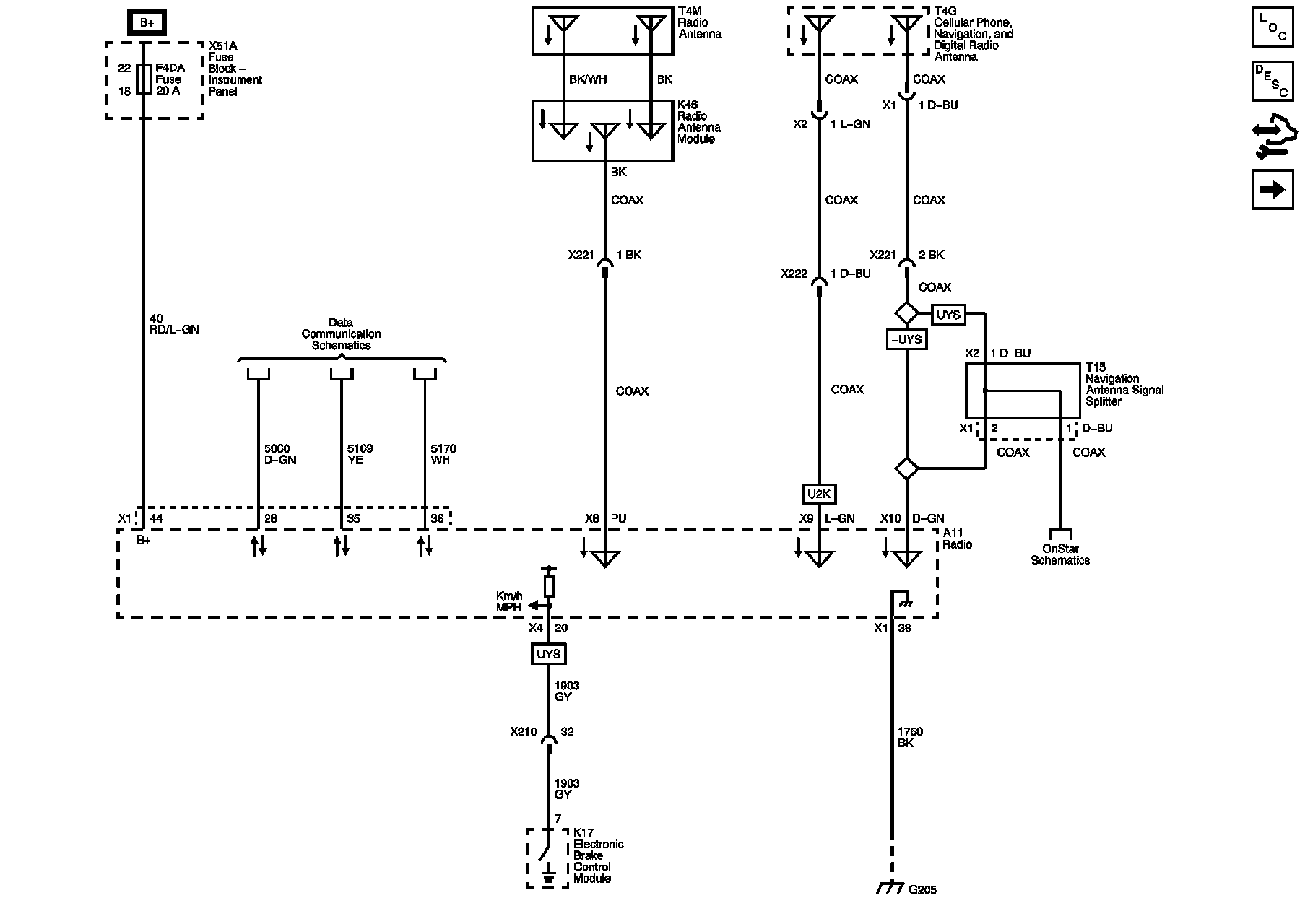

Power, Ground, Antennas and Serial Data

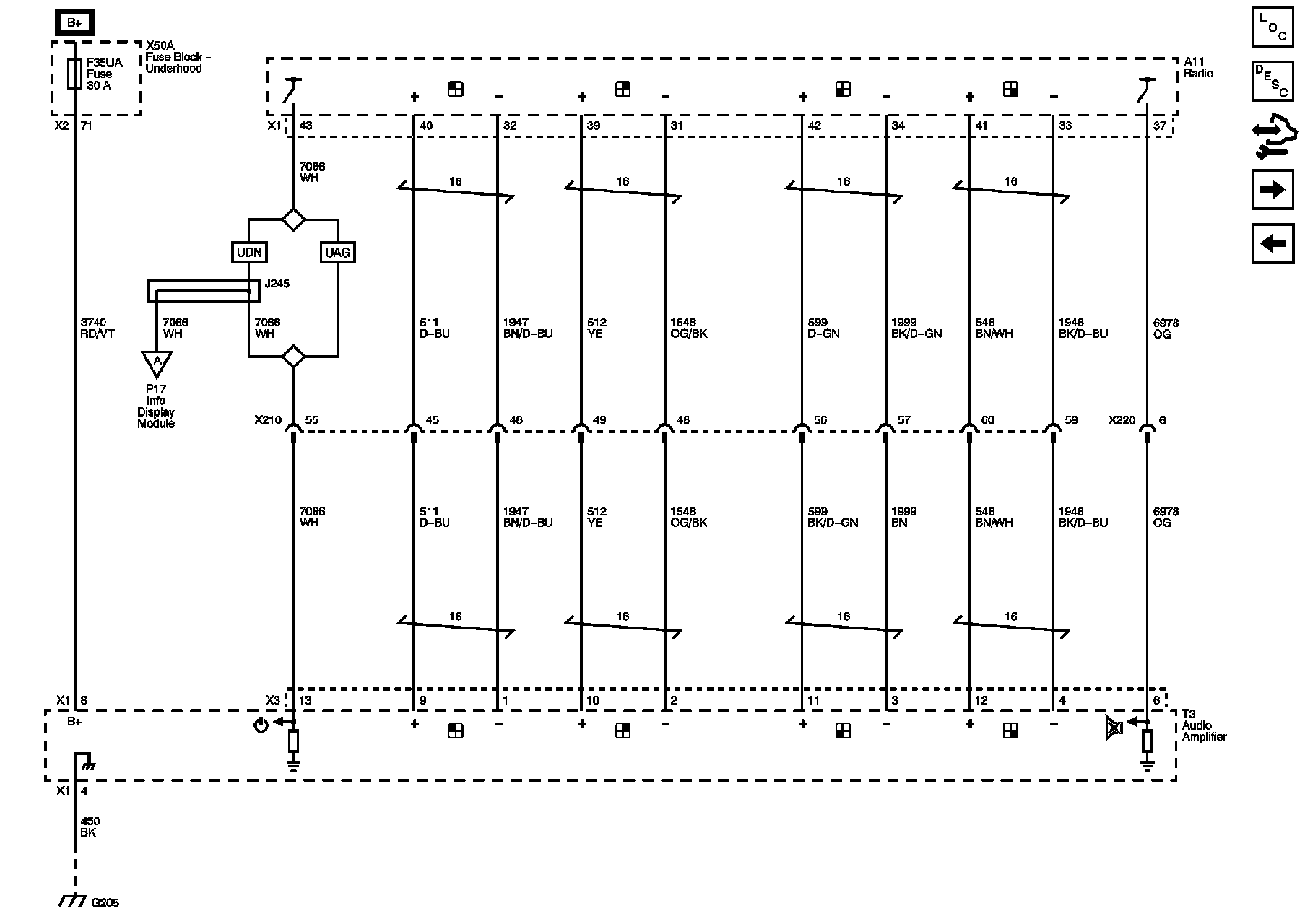

Amplifier Inputs (UQA)

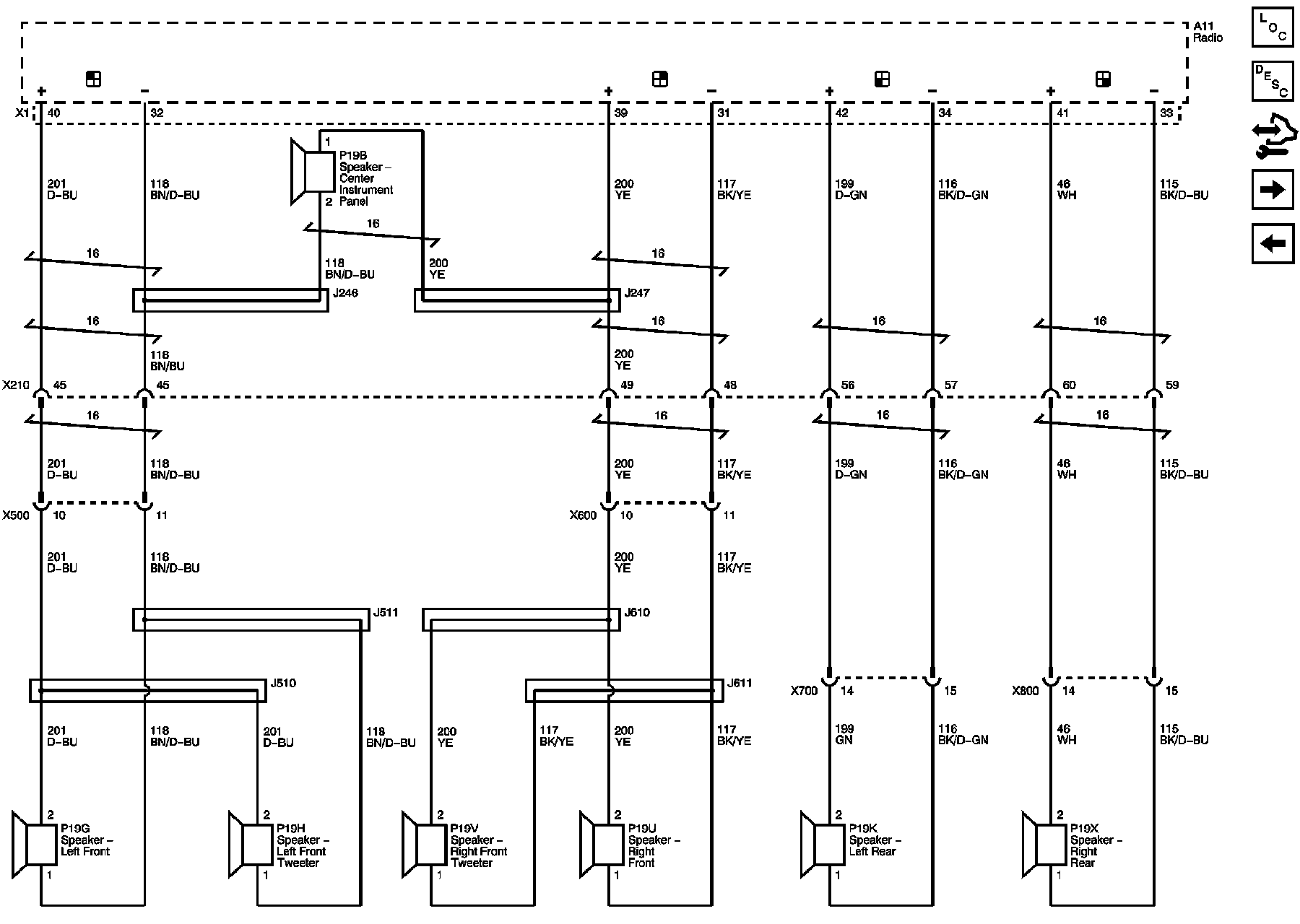

Speakers (U65)

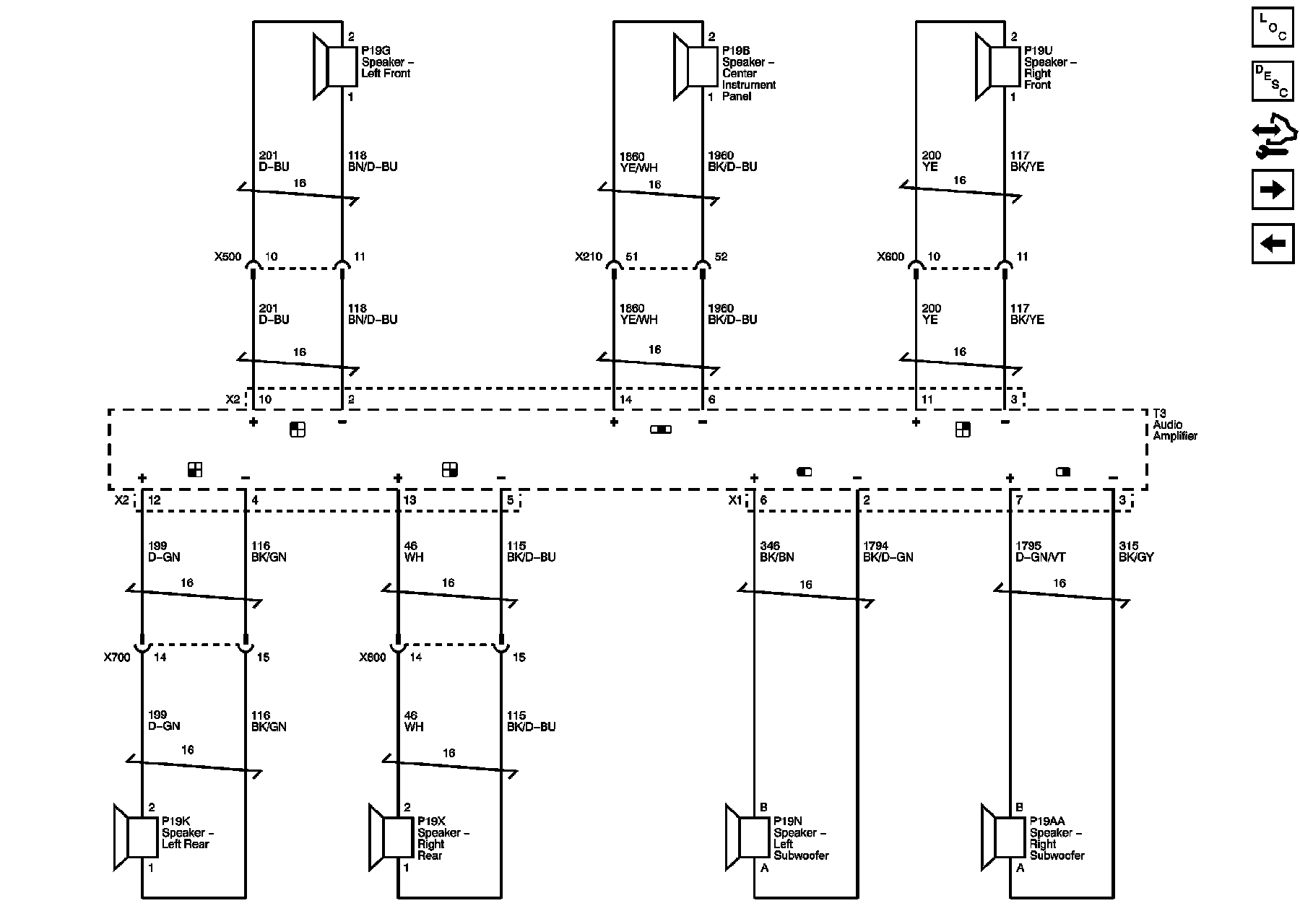

Speakers (UQA)

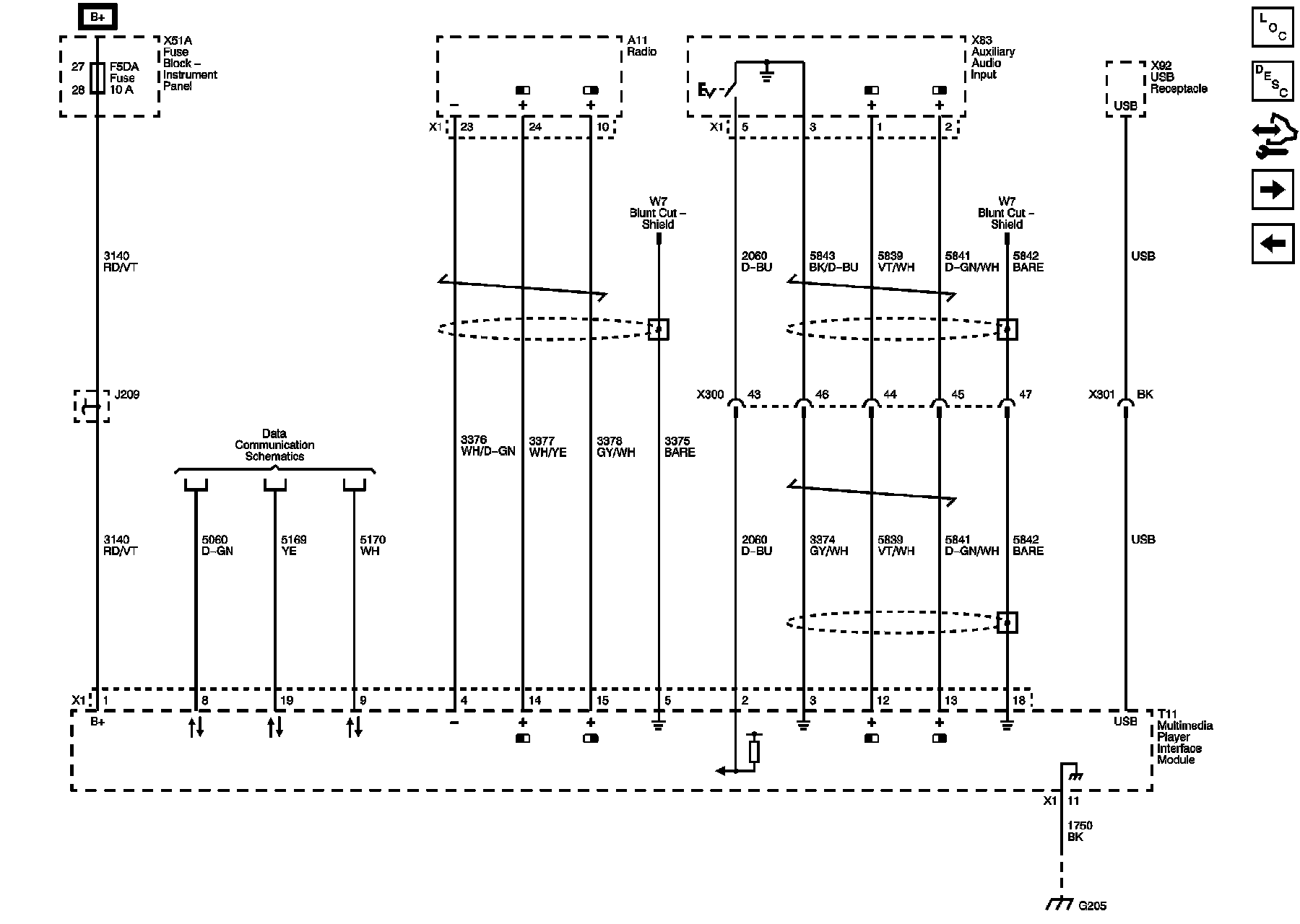

Auxiliary Inputs (KTA)

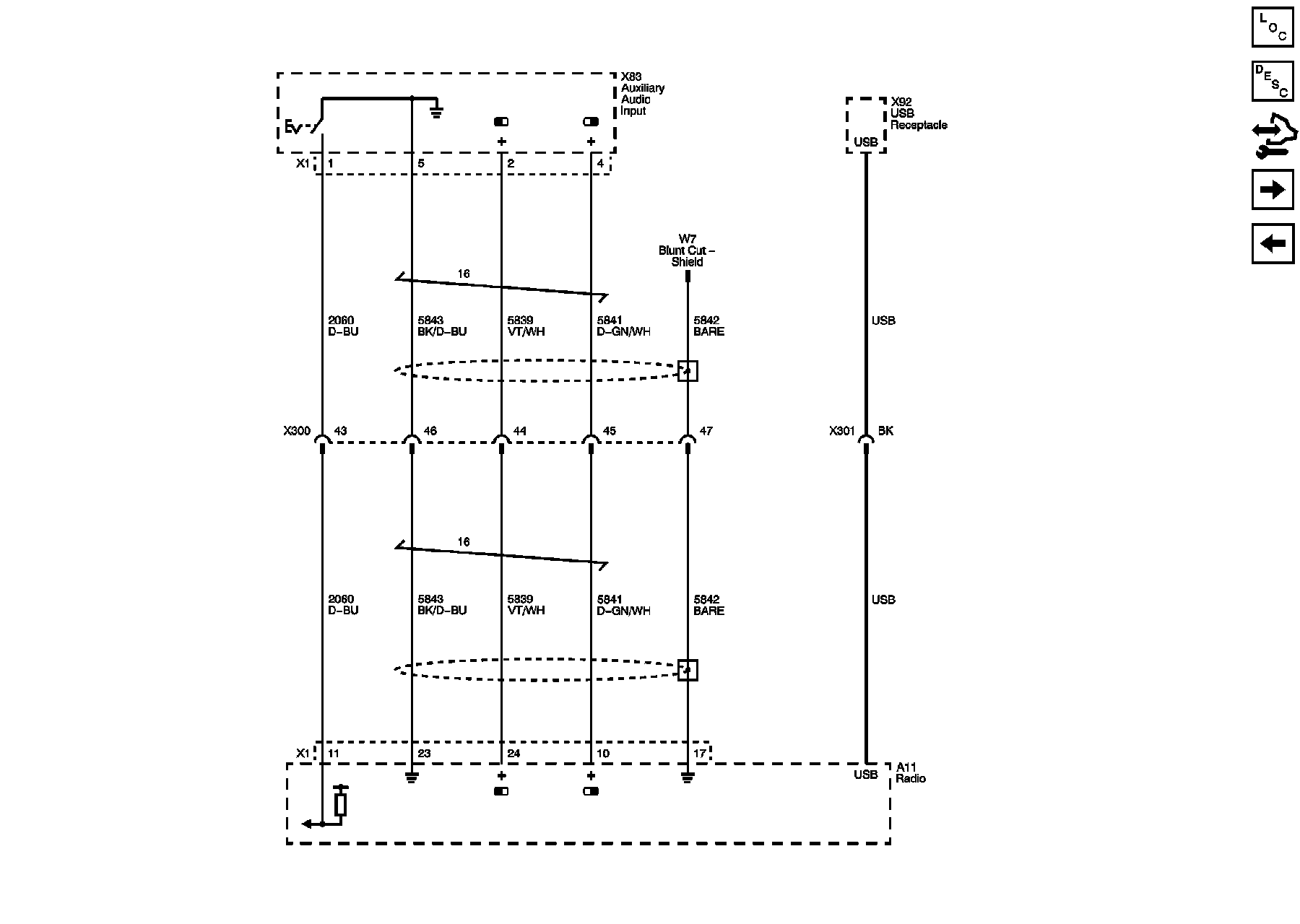

Auxiliary Inputs (without KTA)

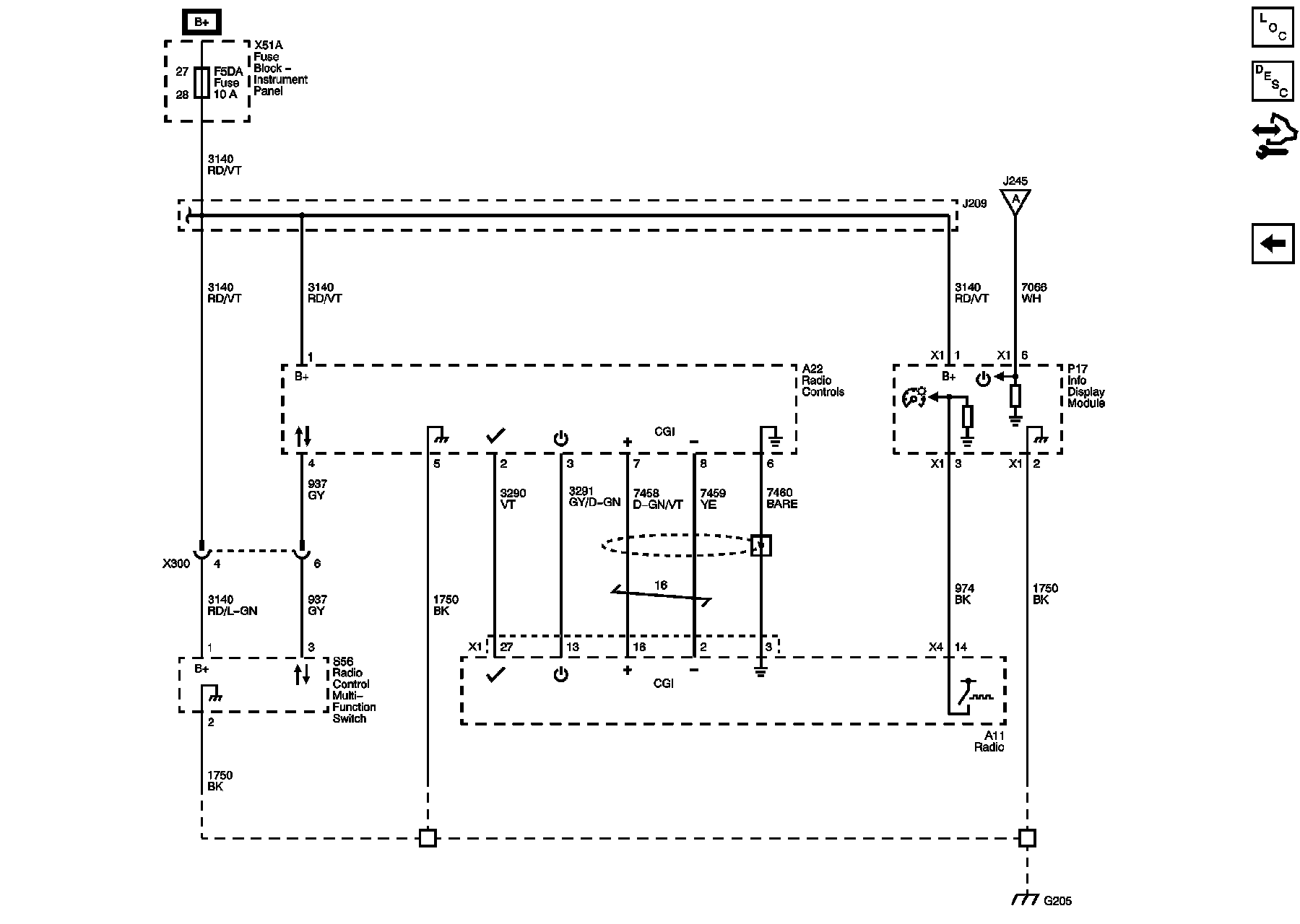

Display (UAG)

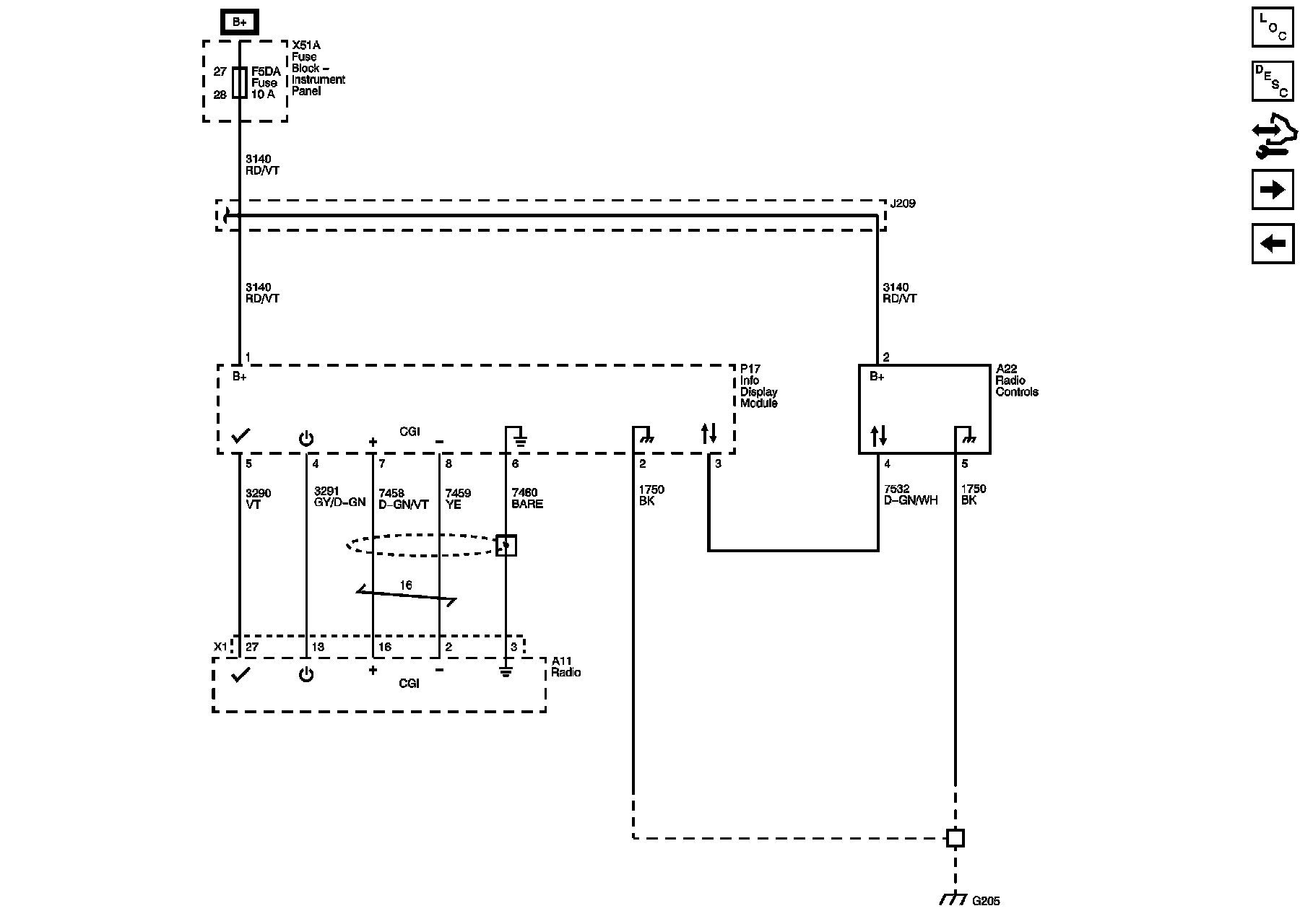

Display (UDN)
