Wheel Speed Sensor
>>

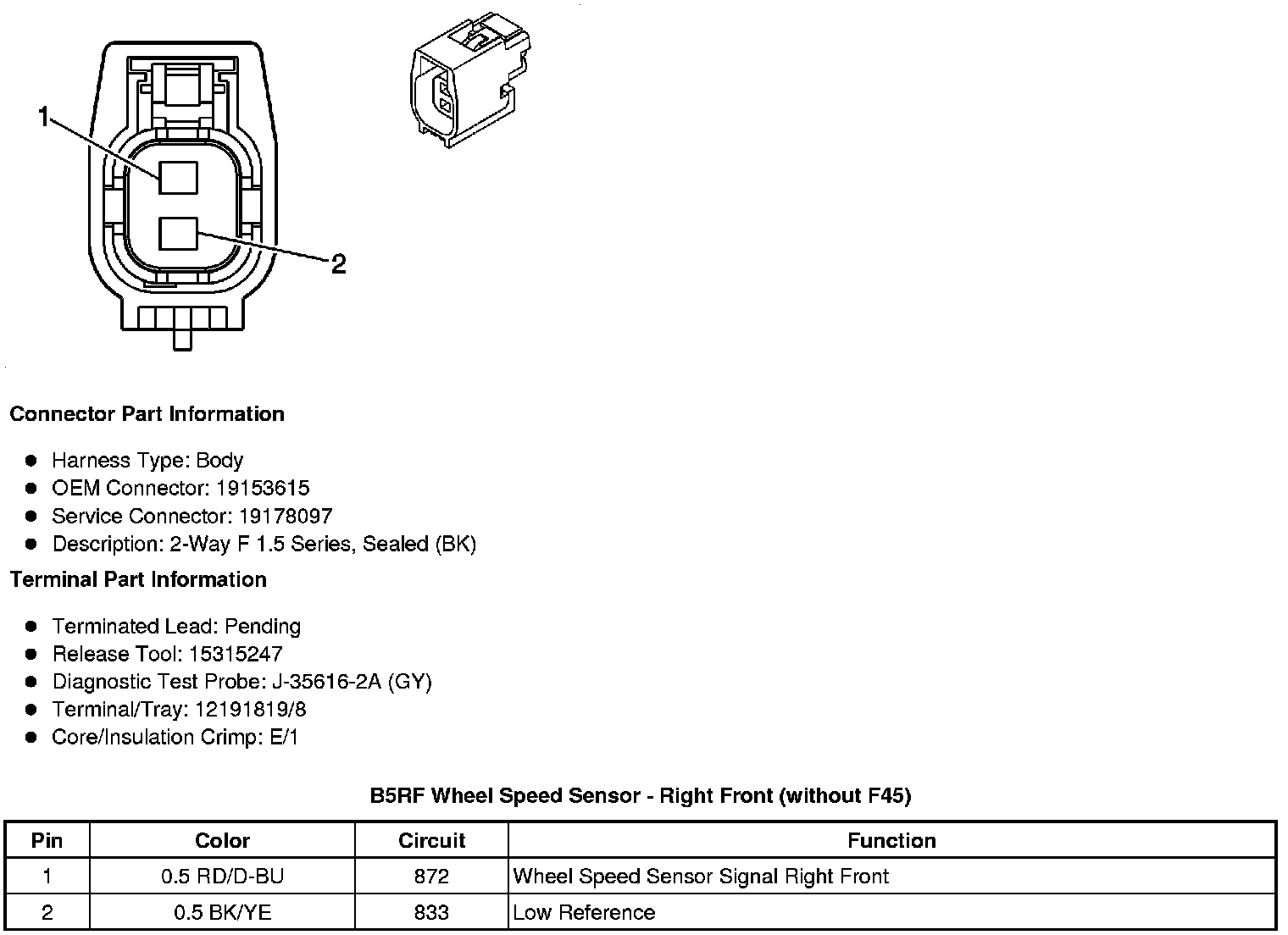

B5RF Wheel Speed Sensor - Right Front (without F45)
B5RF Wheel Speed Sensor - Right Front (without F45)
Component Connector End Views
B5RF
Wheel Speed Sensor
- Right Front (without F45)
