S48C Multi-Function Switch 1 - Instrument Panel
S48C Multi-Function Switch 1 - Instrument Panel
Component Connector End Views

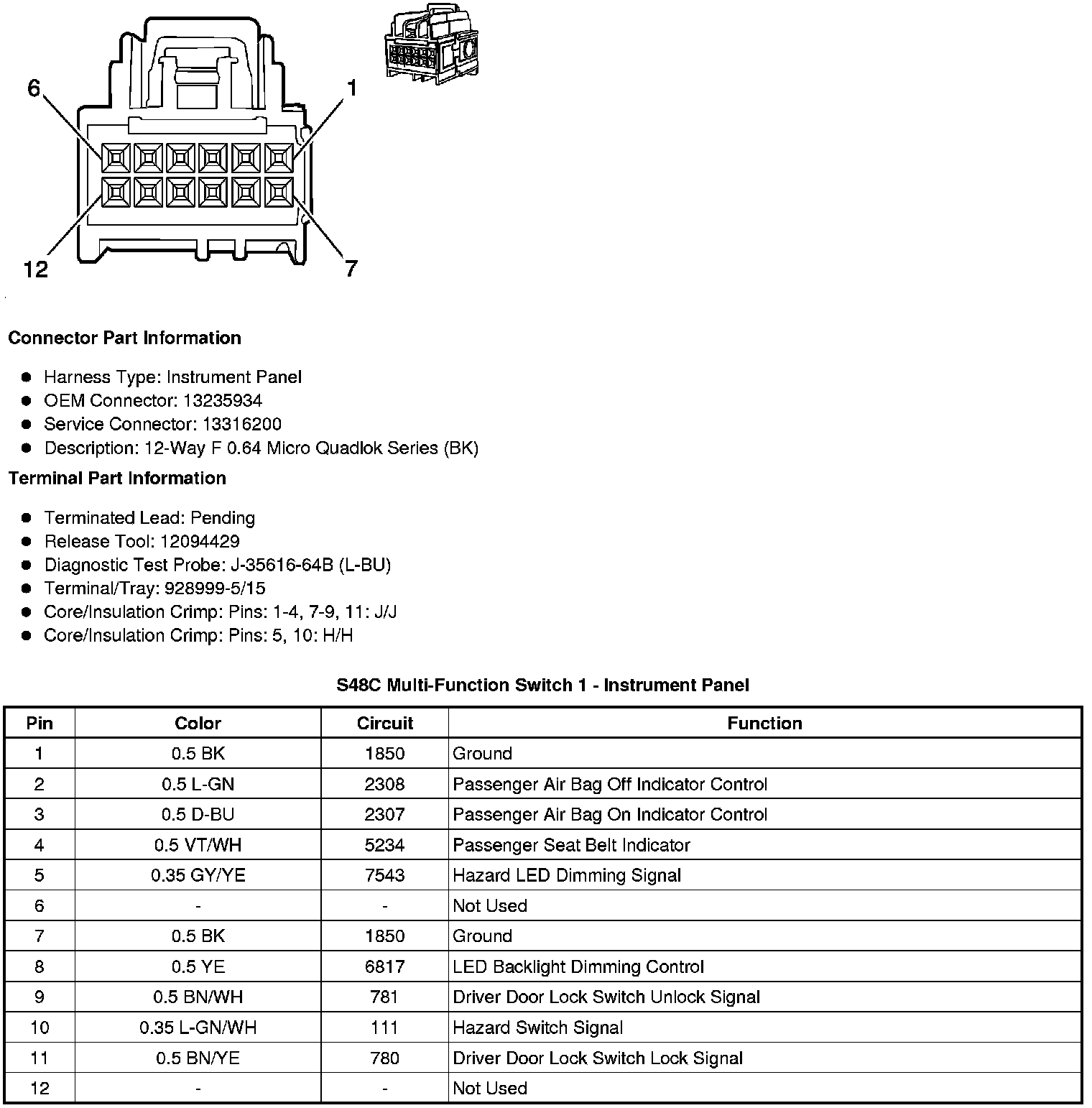

S48C Multi-Function Switch 1 - Instrument Panel
