K43 Power Steering Control Module (NXC)
K43 Power Steering Control Module (NXC)
Component Connector End Views

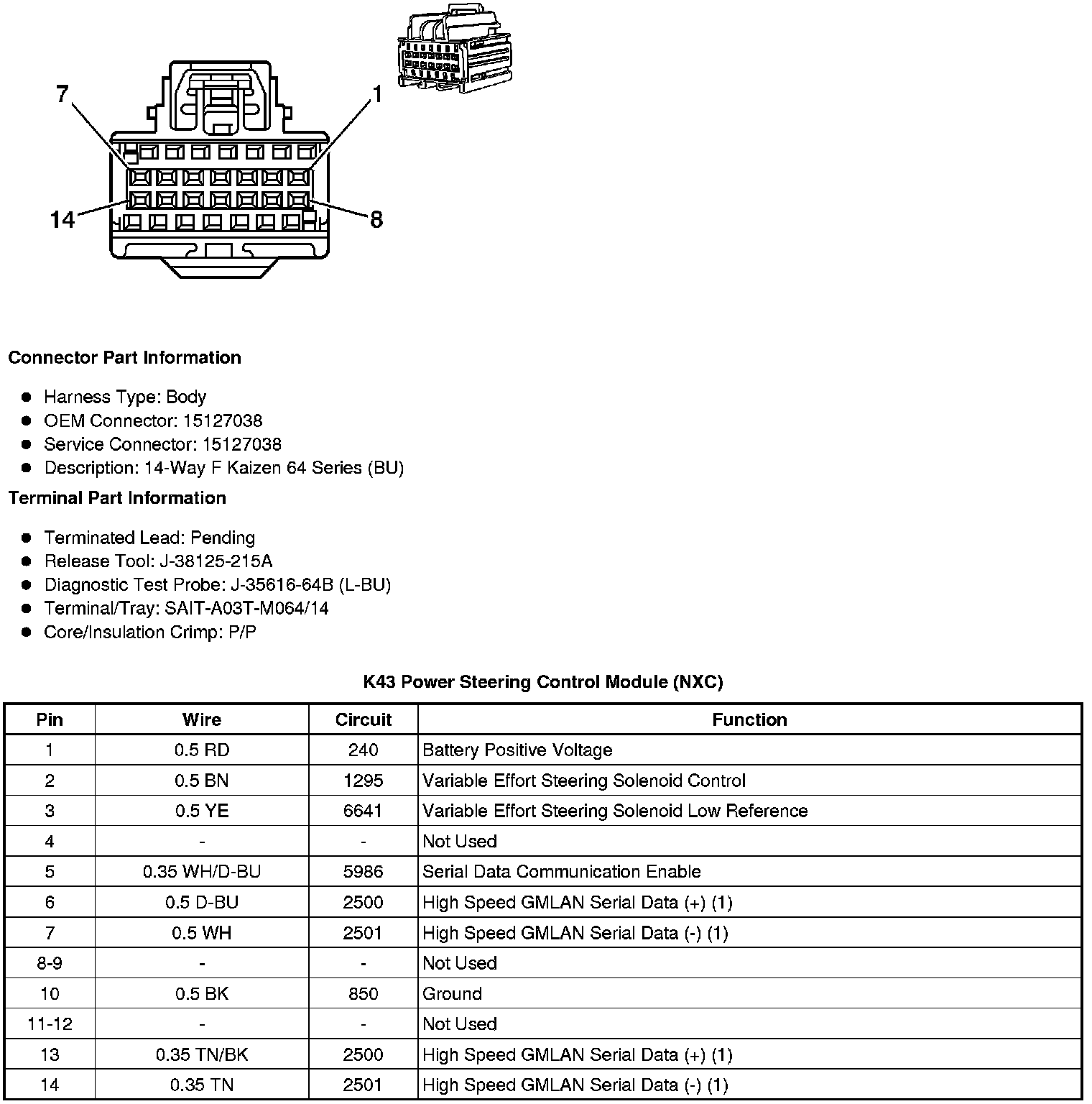

K43 Power Steering Control Module (NXC)
