Communications Control Module
>>
C3 Telematics Communication Interface Control Module Battery

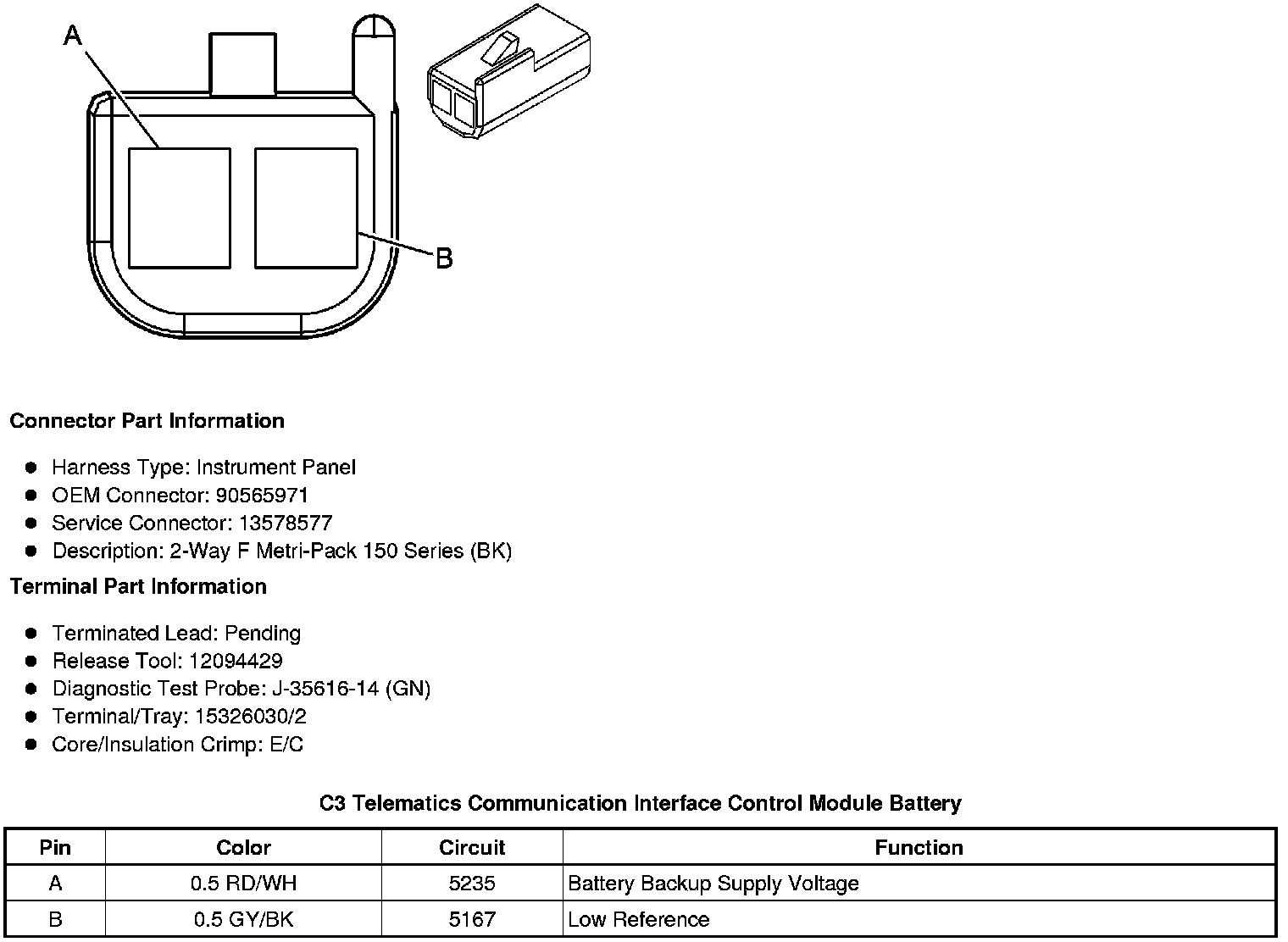

C3 Telematics Communication Interface Control Module Battery
Component Connector End Views
C3 Telematics Communication Interface Control Module Battery
