Sunroof Window Seal Replacement - Inner

Sunroof Window Seal Replacement - Inner

Removal Procedure

1. Remove the front sunroof window. Refer to Sunroof Window Replacement - Front (Sunroof Window Replacement - Front).
2. Remove the rear sunroof window. Refer to Sunroof Window Replacement - Rear (Sunroof Window Replacement - Rear).
3. Remove the seal.

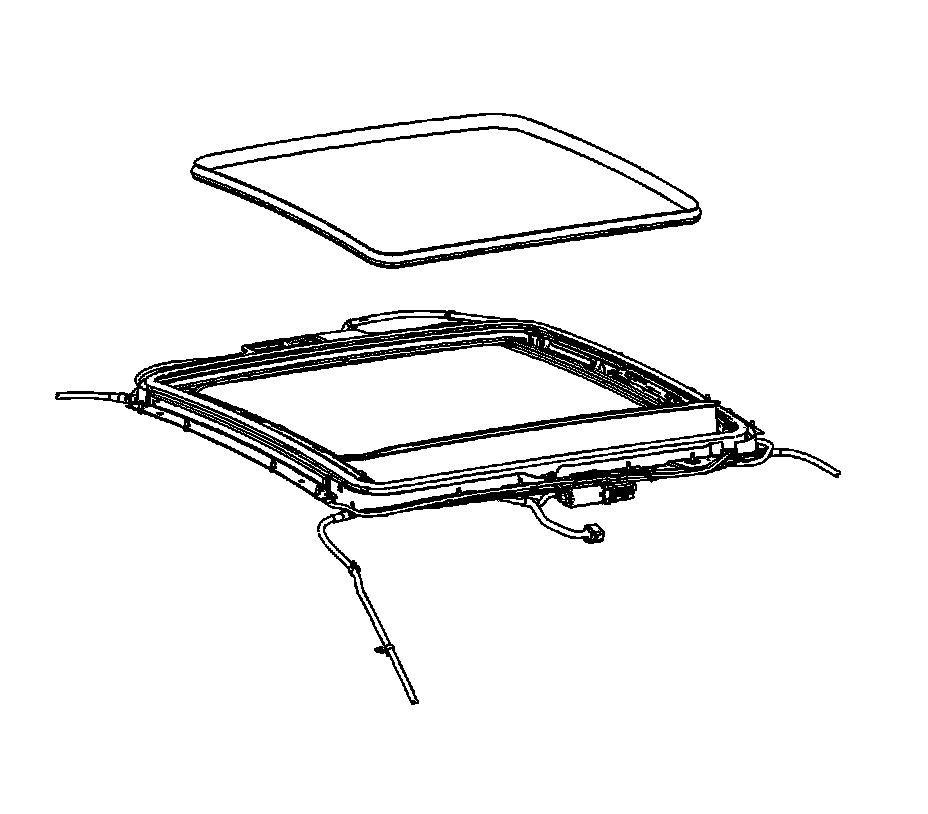

Remove the seal from the sunroof housing track.

Installation Procedure




1. Install the seal to the sunroof housing track.
2. Install the rear sunroof window. Refer to Sunroof Window Replacement - Rear (Sunroof Window Replacement - Rear).
3. Install the front sunroof window. Refer to Sunroof Window Replacement - Front (Sunroof Window Replacement - Front).
