Sunroof Window Replacement - Rear

Sunroof Window Replacement - Rear

Removal Procedure

1. Open the sunshade.
2. Open the sunroof to the vent position.




3. Remove the rear window.

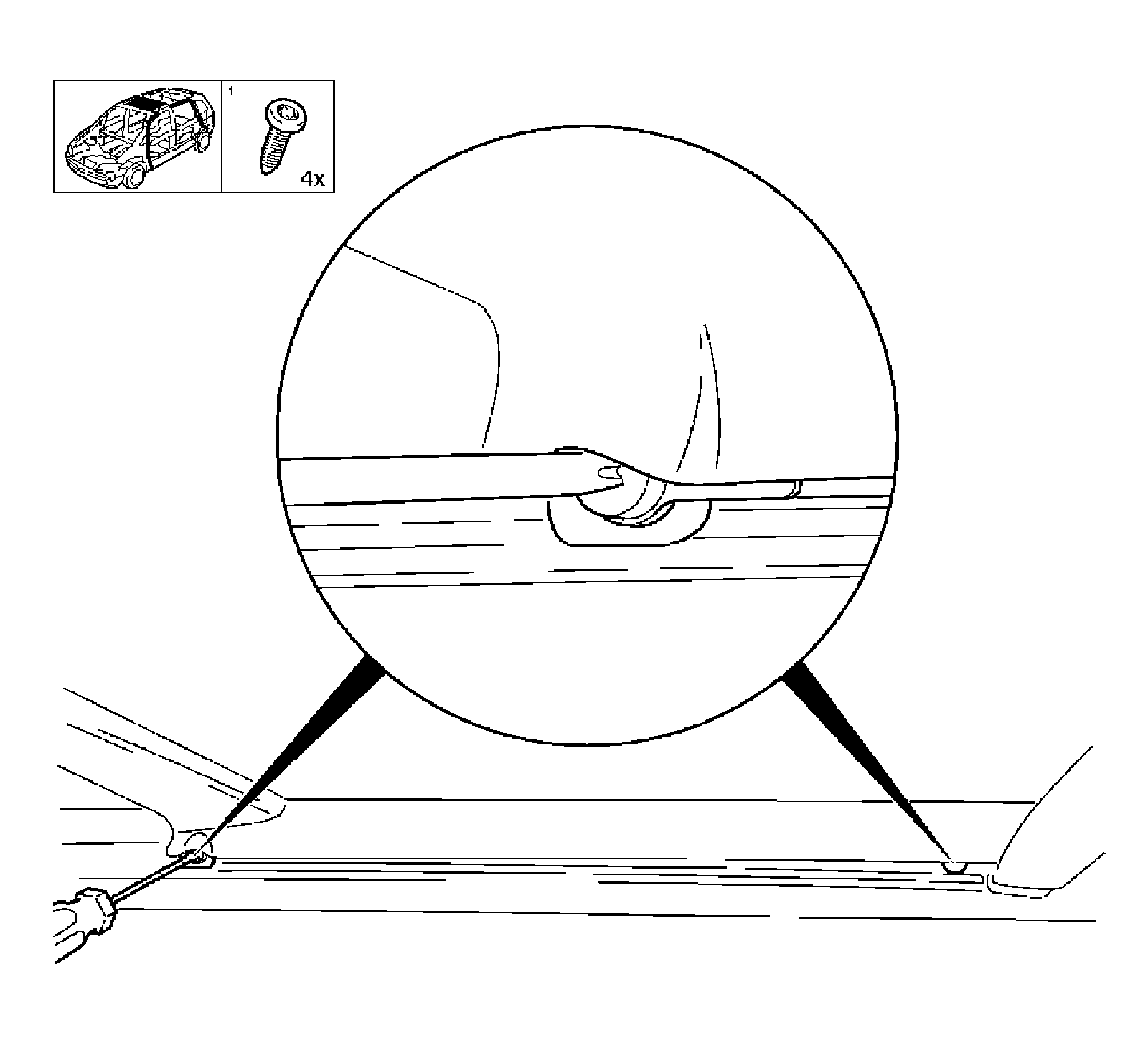

1. Push up on the side covers to access the fasteners.
2. Remove the 4 fasteners.

4. Remove the rear window.

Installation Procedure

1. Install the rear sunroof window.
2. Tighten the rear window in the upper position.





Caution: Refer to Fastener Caution (Fastener Caution)

3. Install the rear window.

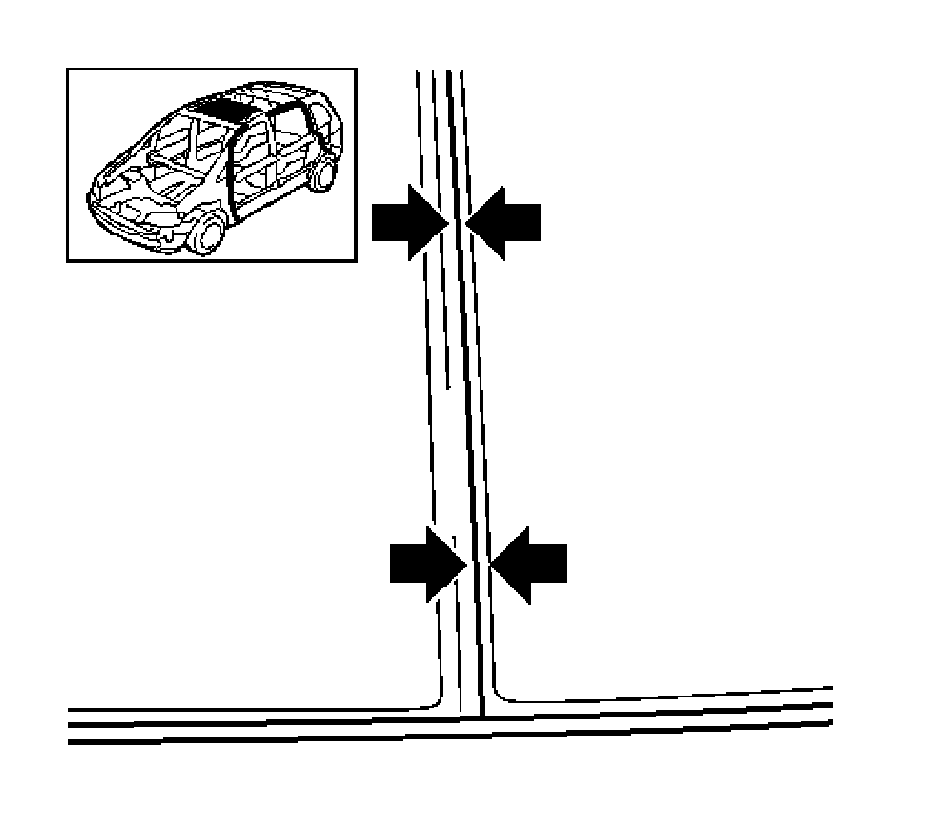

Inspect the window gap 11.0 + or -0.3 mm (0.43in).

Tighten the 4 fasteners to 4 Nm (35 lb in).

4. Verify the operation of the sunroof.
