Sunroof / Moonroof Panel: Adjustments




Sunroof Window Height and Opening Fit Adjustment




1. Open the sunroof to the vent position.
2. Loosen the sunroof window rear fasteners on the left and right side.
3. Open the sunroof to the half open position.

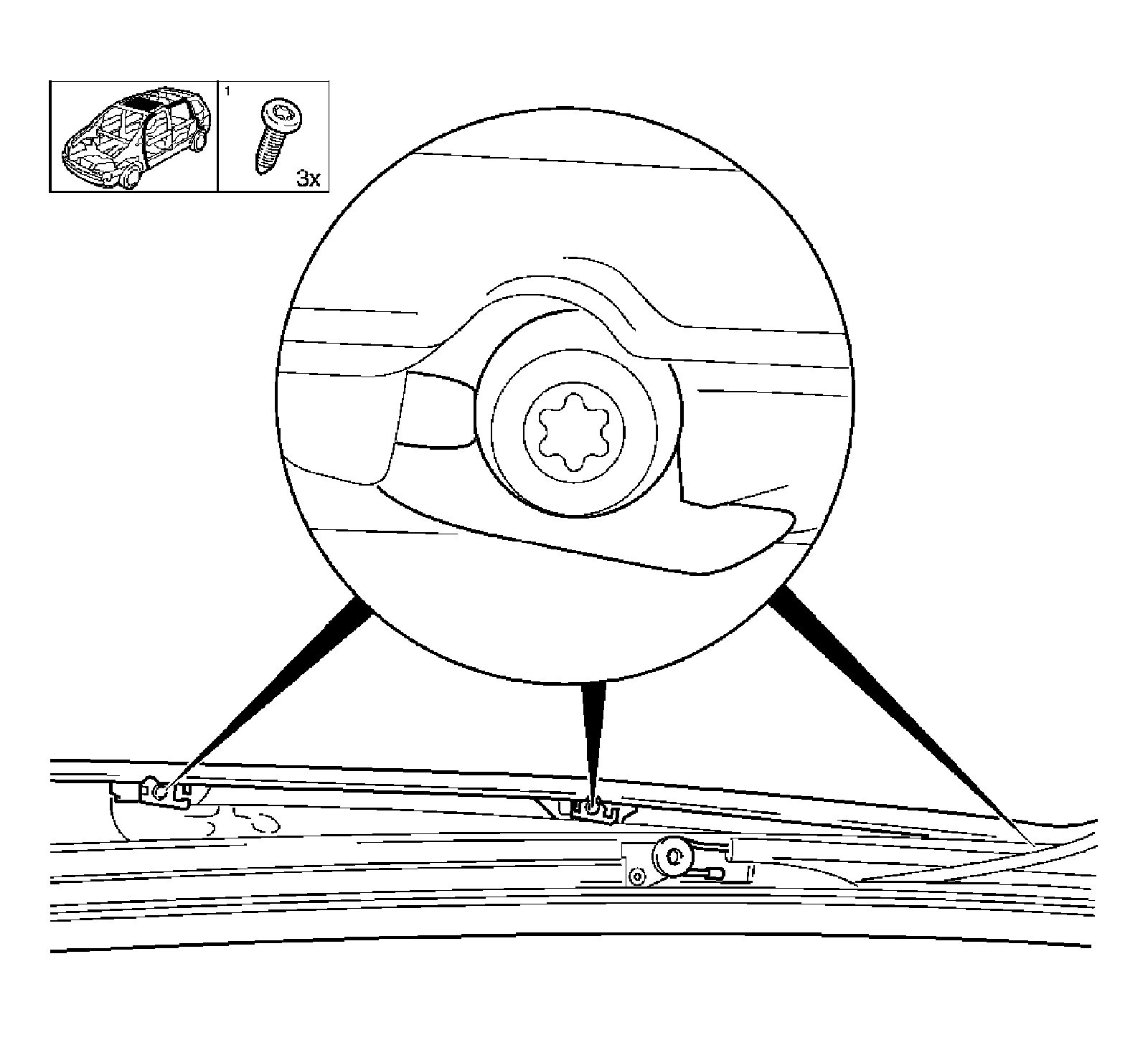

4. Loosen the front sunroof window fasteners on the left and right side.
5. Close the sunroof.





Note: Tighten the window in the upper position.

6. Adjust the window.

Caution: Refer to Fastener Caution (Fastener Caution).

7. Tighten the window rear fasteners.

Tighten the rear fasteners to 4 Nm (35 lb in).

8. Open the sunroof window until the rear part is in the vent position.
9. Tighten the sunroof window front fasteners.

Tighten the front fasteners to 4 Nm (35 lb in).

10. Install the front air deflector covers.
Install the covers.
11. Close the sunroof.
Inspect the gap 11.0 +or -0.3 mm (.43in).
