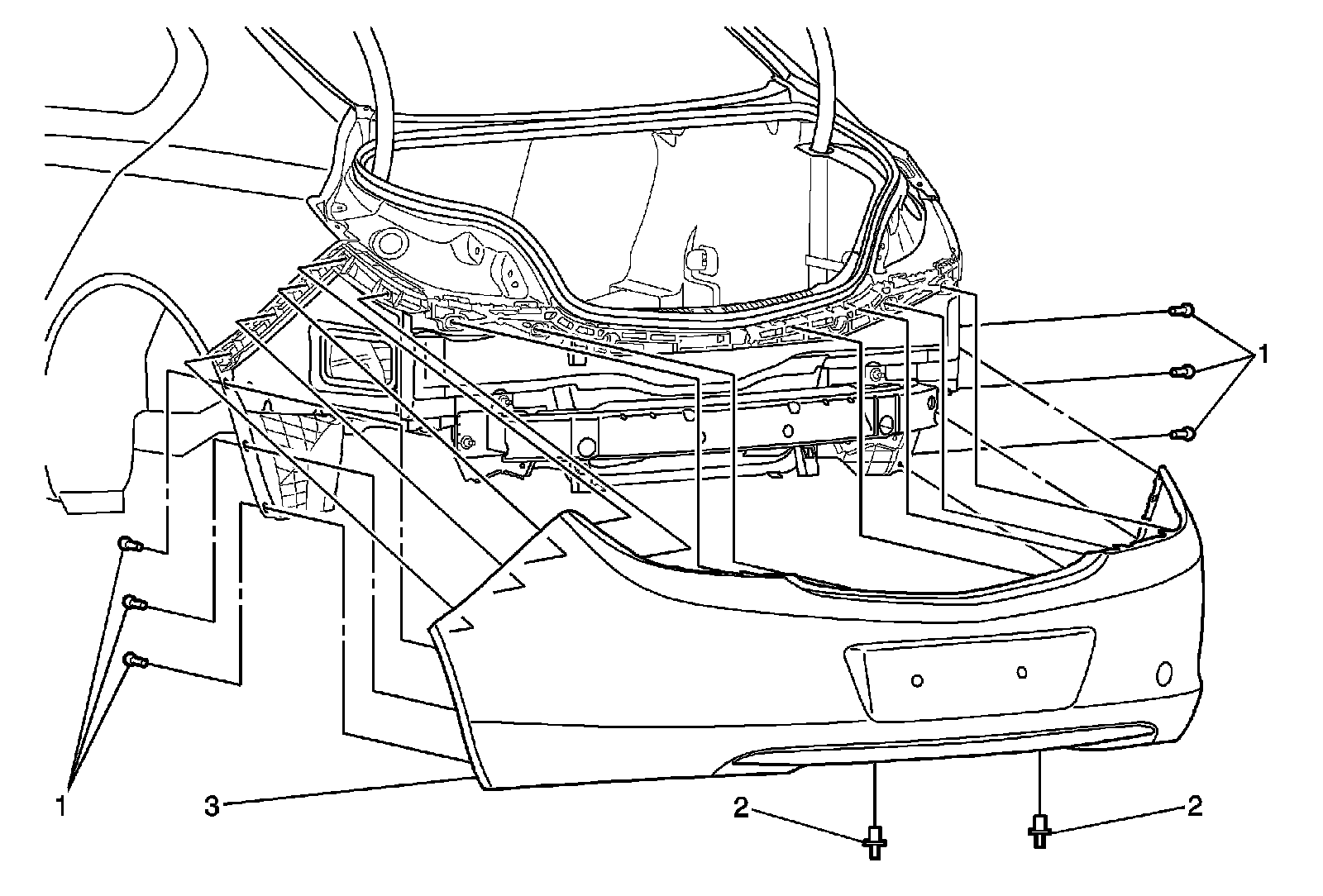

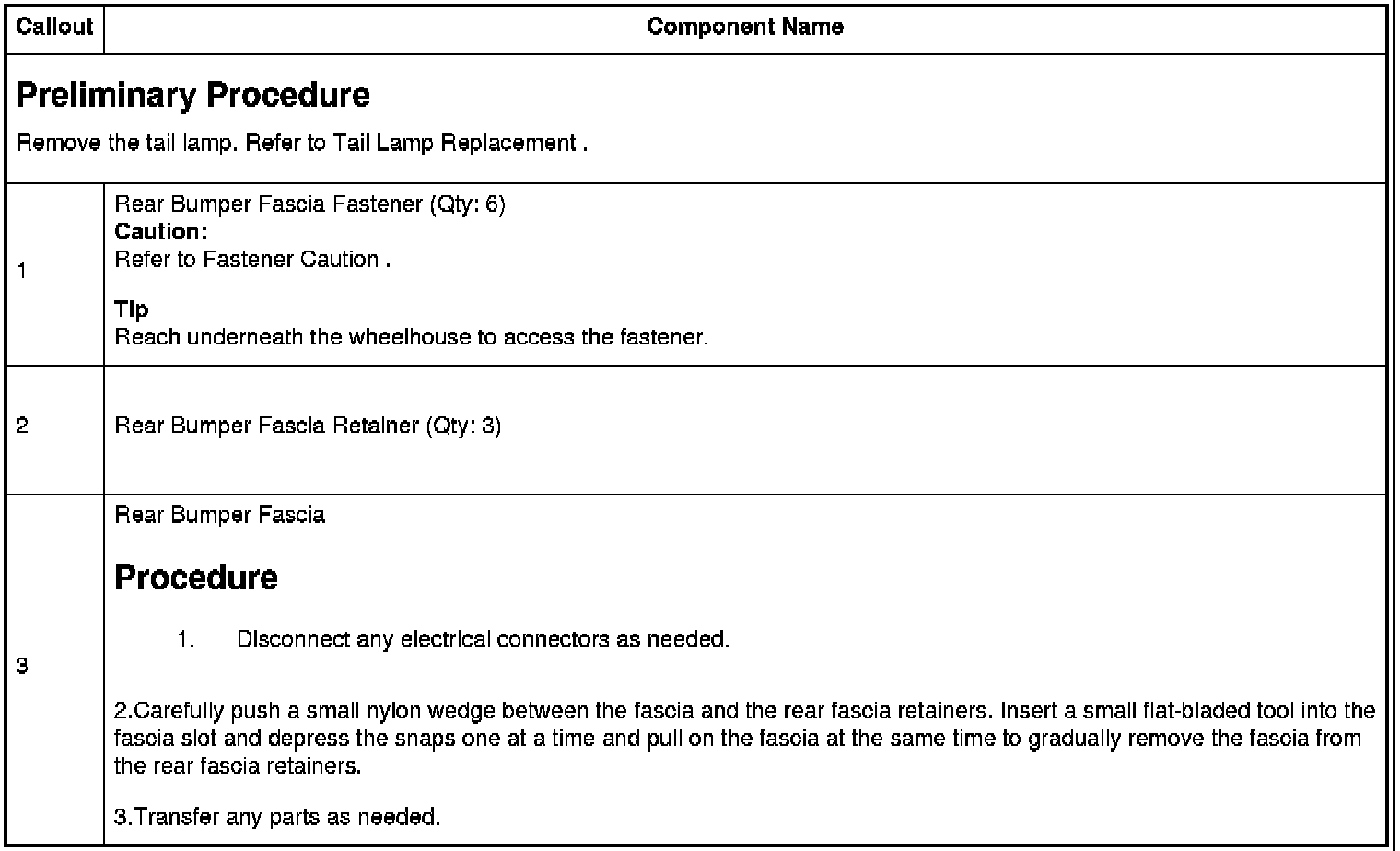

Rear Bumper Fascia Replacement






Rear Bumper Fascia Replacement












2.Carefully push a small nylon wedge between the fascia and the rear fascia retainers. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia retainers.

3.Transfer any parts as needed.
