Home >> Buick >> 2011 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Bumper >> Front Bumper >> Front Bumper Cover / Fascia >> Service and Repair >> Front Bumper Fascia Inner Guide Replacement

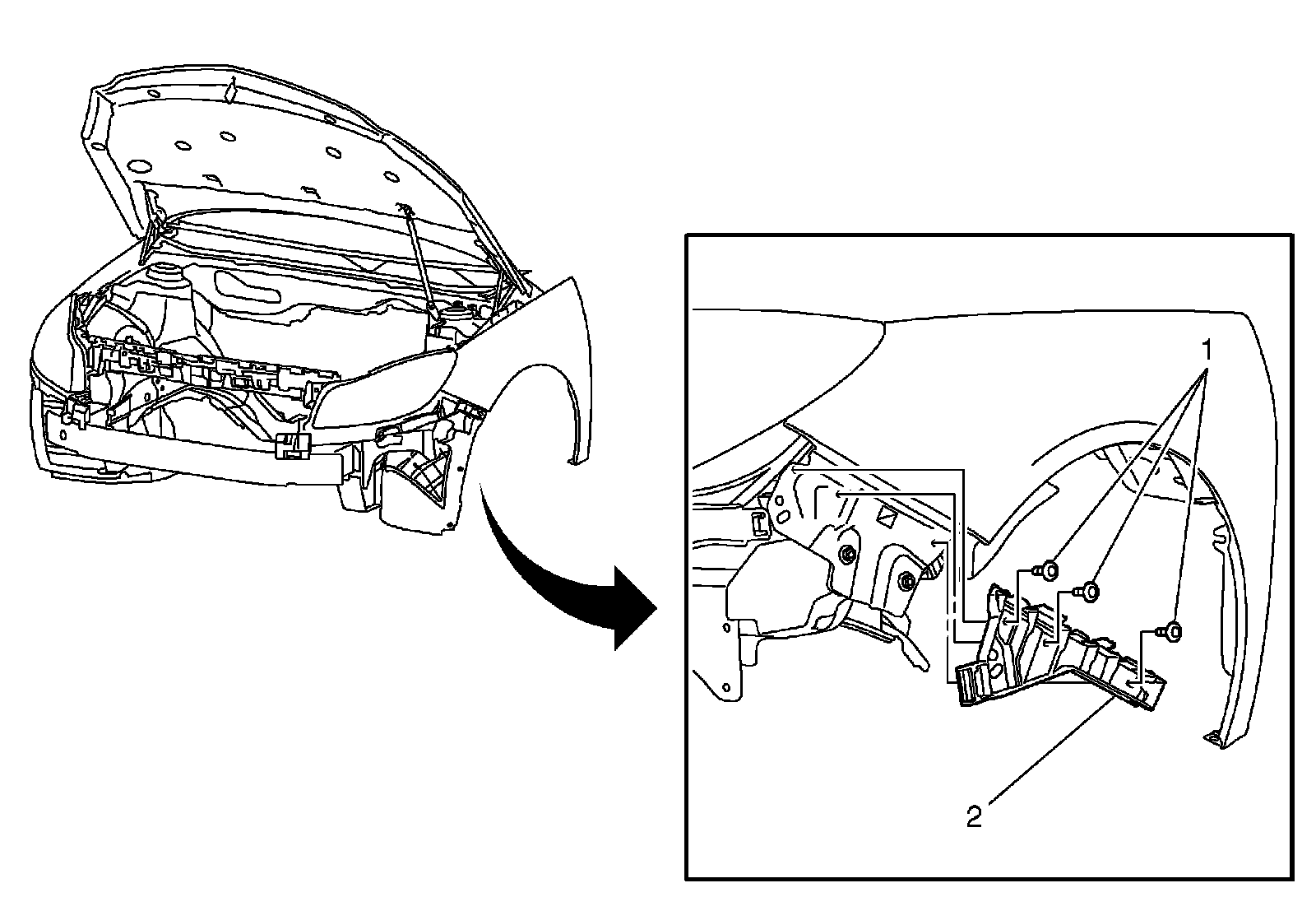

Front Bumper Fascia Inner Guide Replacement

Front Bumper Fascia Inner Guide Replacement

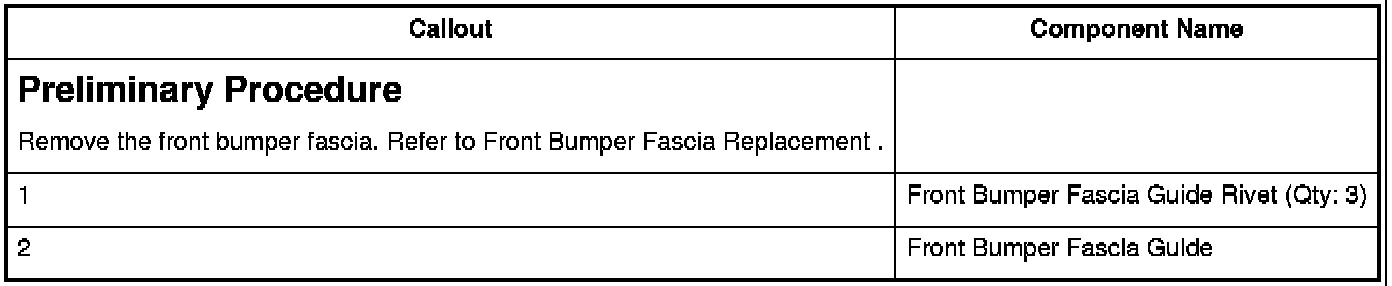

Preliminary Procedure
