AF40-6 - Automatic Transmission
DTC P0711, P0712, or P0713
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle (Diagnostic System Check - Vehicle) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Strategy Based Diagnosis) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Diagnostic Procedure Instructions) provides an overview of each diagnostic category.
DTC Descriptors
DTC P0711
- Transmission Fluid Temperature Sensor Performance
DTC P0712
- Transmission Fluid Temperature Sensor Circuit Low Voltage
DTC P0713
- Transmission Fluid Temperature Sensor Circuit High Voltage

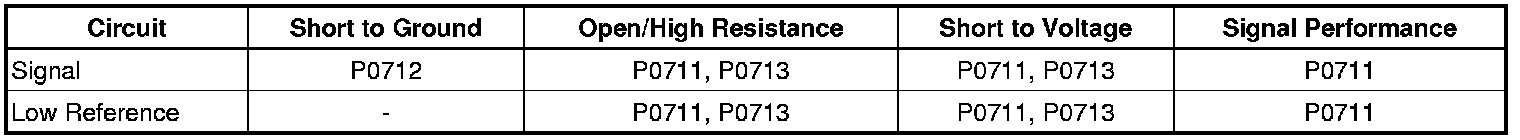

Diagnostic Fault Information

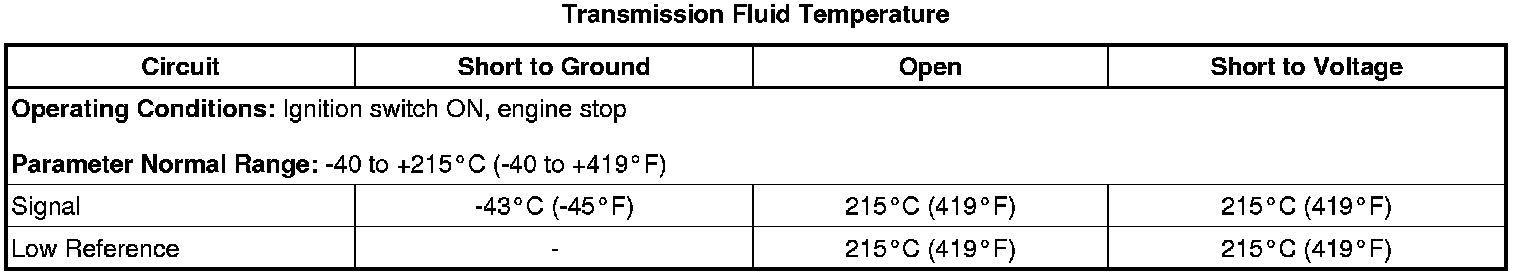

Typical Scan Tool Data
Circuit/System Description
The automatic transmission fluid temperature sensor provides transmission fluid temperature to the transmission control module (TCM). The TCM supplies a 5 V reference signal to the sensor. The automatic transmission fluid temperature sensor is a variable resistor that measures the temperature of the transmission fluid and is a thermistor, or a resistor that changes value when the temperature changes. The sensor has a negative temperature coefficient. This means that as the temperature increases the resistance decreases and vice versa. The TCM will compare the temperature difference between the engine coolant temperature sensor and the automatic transmission fluid temperature sensor to determine if the temperatures are within an acceptable operating range of each other. This fault is handled inside the TCM and no external circuits are involved.
Conditions for Running the DTC
P0711
* The ignition voltage is 10.2-15.5 V.
* The engine speed is greater than 400 RPM for 2 s.
* TCM communication is normal.
* DTCs P0712, P0713 are not set.
* The transmission is not in emergency mode.
* The engine speed is greater than 400 RPM for 10 min.
* Vehicle speed was 40 km/h (25 MPH) or greater at once.
P0712
* The ignition voltage is 10.2-15.5 V.
* The engine speed is greater than 400 RPM for 2 s.
* The transmission is not in emergency mode.
* Driving in D range.
* TCM communication is normal.
P0713
* The ignition voltage is 10.2-15.5 V.
* The engine speed is greater than 400 RPM for 2 s.
* The transmission is not in emergency mode.
* Driving in D range.
* Driving time is more than 10 min.
* TCM communication is normal.
Conditions for Setting the DTC
P0711
The automatic transmission fluid temperature is less than 20°C (36°F) after 10 min driving or more.
P0712
The automatic transmission fluid temperature is more than 200°C (473°F) for 10 s or more after consecutive 30 times.
P0713
The automatic transmission fluid temperature is lower than -43°C (-45°F) for 1 s or more after consecutive 12 times.
Action Taken When the DTC Sets
* The TCM will default the transmission oil temperature to 80°C (353°F).
* No lock-up slip control
* No neutral control
* No self learning control
Conditions for Clearing the DTC
P0711, P0712, and P0713
These are Type C DTCs.
P0712, P0713
The automatic transmission fluid temperature is between 20-150°C (68-302°F) for 10 s or more.
Diagnostic Aids
A correct transmission fluid level is required for a proper function. The automatic transmission fluid temperature sensor is located inside the transmission at the valve body. To ensure that the shown oil temperature is correct, measure the oil temperature with an external thermometer.
Reference Information
Schematic Reference
Automatic Transmission Controls Schematics (AF40-6 - Automatic Transmission)
Connector End View Reference
Component Connector End Views (Connector End Views By Name)
Description and Operation
Transmission Component and System Description (Transmission Component and System Description)
Electrical Information Reference
* Circuit Testing (Circuit Testing)
* Connector Repairs (Connector Repairs)
* Testing for Intermittent Conditions and Poor Connections (Testing for Intermittent Conditions and Poor Connections)
* Wiring Repairs (Wiring Repairs)
DTC Type Reference
Powertrain Diagnostic Trouble Code (DTC) Type Definitions (Powertrain Diagnostic Trouble Code (DTC) Type Definitions)
Scan Tool Reference
Control Module References (Programming and Relearning) for scan tool information
Circuit/System Verification
1. Perform the Transmission Fluid Level and Condition Check (Transmission Fluid Level and Condition Check) to verify correct fluid level.
2. Engine idling at operating temperature, observe the scan tool Transmission Fluid Temperature parameter. The reading should be between -40 to +215°C (-40 to +488°F) and change.
3. Operate the vehicle at about 60 km/h (37 MPH) for 10 min. Verify the scan tool Transmission Fluid Temperature parameter varies by more than 2°C (3.5°F) to verify that the sensor is not stuck.
Circuit/System Testing
Operate the vehicle within the conditions for running and setting the DTC to verify the DTC does not reset. You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data.
Component Testing
Static Test
1. Ignition OFF, remove the K71 Transmission Control Module.
2. Ignition OFF, test for infinite resistance between the low reference circuit terminal 7 X2 and ground.
• If less than the specified range, replace the wiring harness.
3. Ignition OFF, test for infinite resistance between the signal circuit terminal 8 X2 and ground.
• If less than the specified range, replace the wiring harness.
4. Test for infinite resistance between each terminal and the low reference circuit terminal 7 X2 and also to the signal circuit terminal 8 X2.
• If less than the specified range, replace the wiring harness.
5. Test for the resistance between the B13 Automatic Transmission Fluid Temperature Sensor signal circuit terminal 7 X2 and the low reference circuit terminal 8 X2. Refer to Transmission Fluid Temperature Sensor Specifications (Pressure, Vacuum and Temperature Specifications) for the resistance values.
• If not within the specified range, replace the wiring harness.
6. If the circuit test normal, replace the K71 Transmission Control Module.
Repair Instructions
Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.
* Wiring harness-Refer to Automatic Transmission Wiring Harness Replacement (Service and Repair) for replacement.
* TCM-Refer to Control Module References (Programming and Relearning) for replacement, setup, and programming.
* Perform the Transmission Adaptive Functions (Transmission Adaptive Functions).
