15. Front Differential Drive Pinion Gear Bearing Cup and Lubricant Dam Replacement

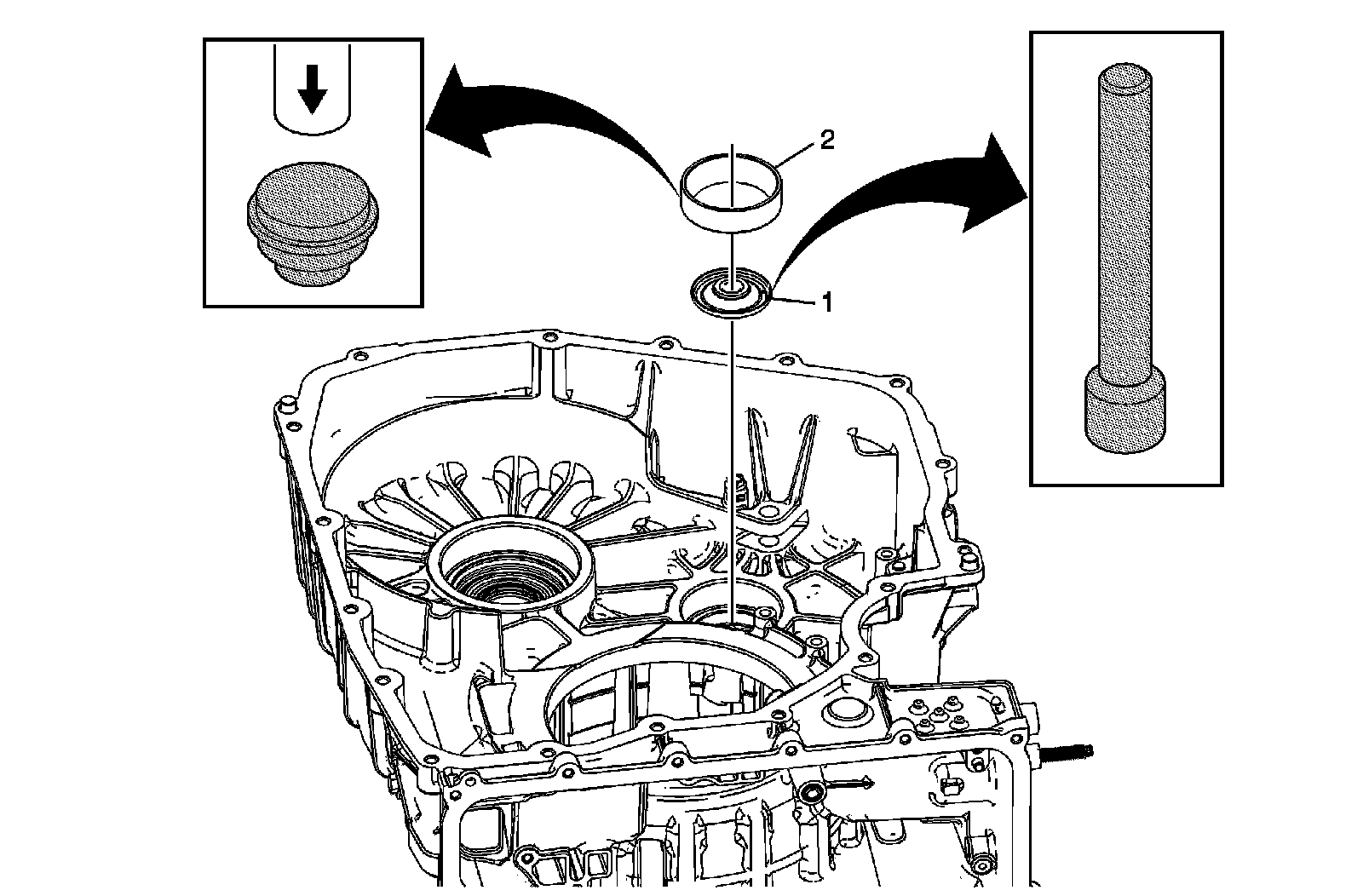

Front Differential Drive Pinion Gear Bearing Cup and Lubricant Dam Replacement

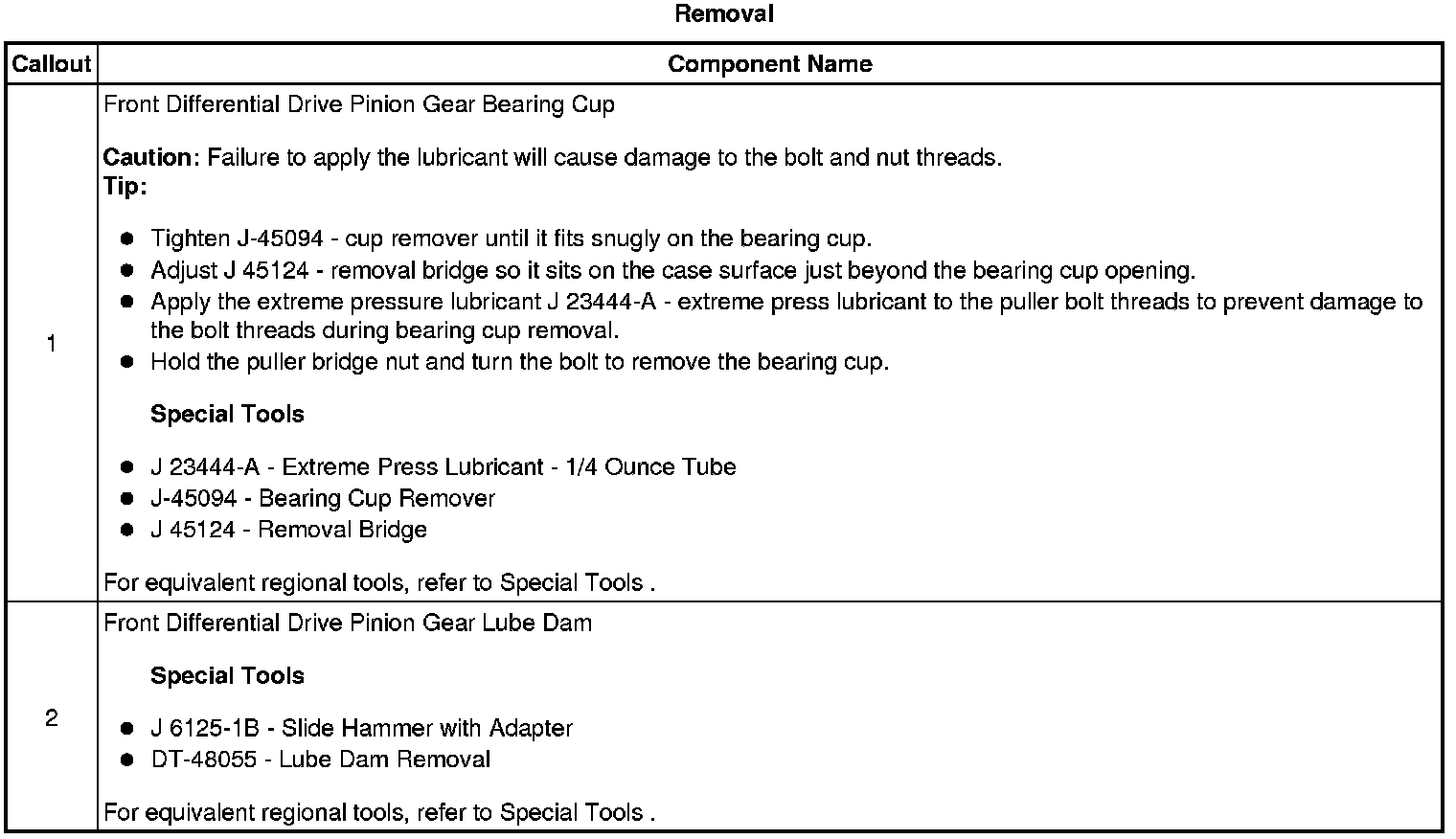

Removal

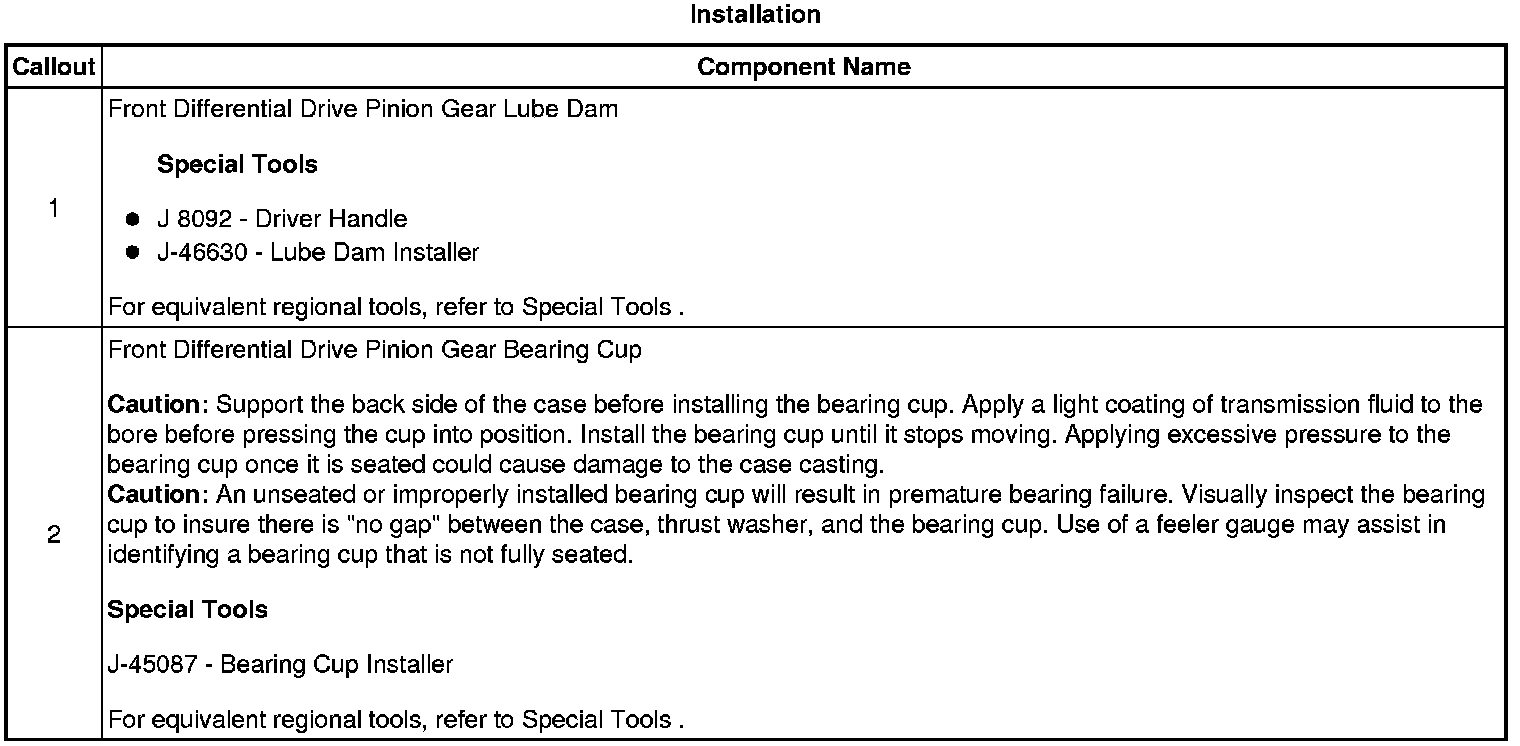

Installation
