Home >> Buick >> 2010 >> LaCrosse AWD V6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6T30/6T40/6T45 - Automatic Transmission >> 49. Control Valve Body Cover Installation

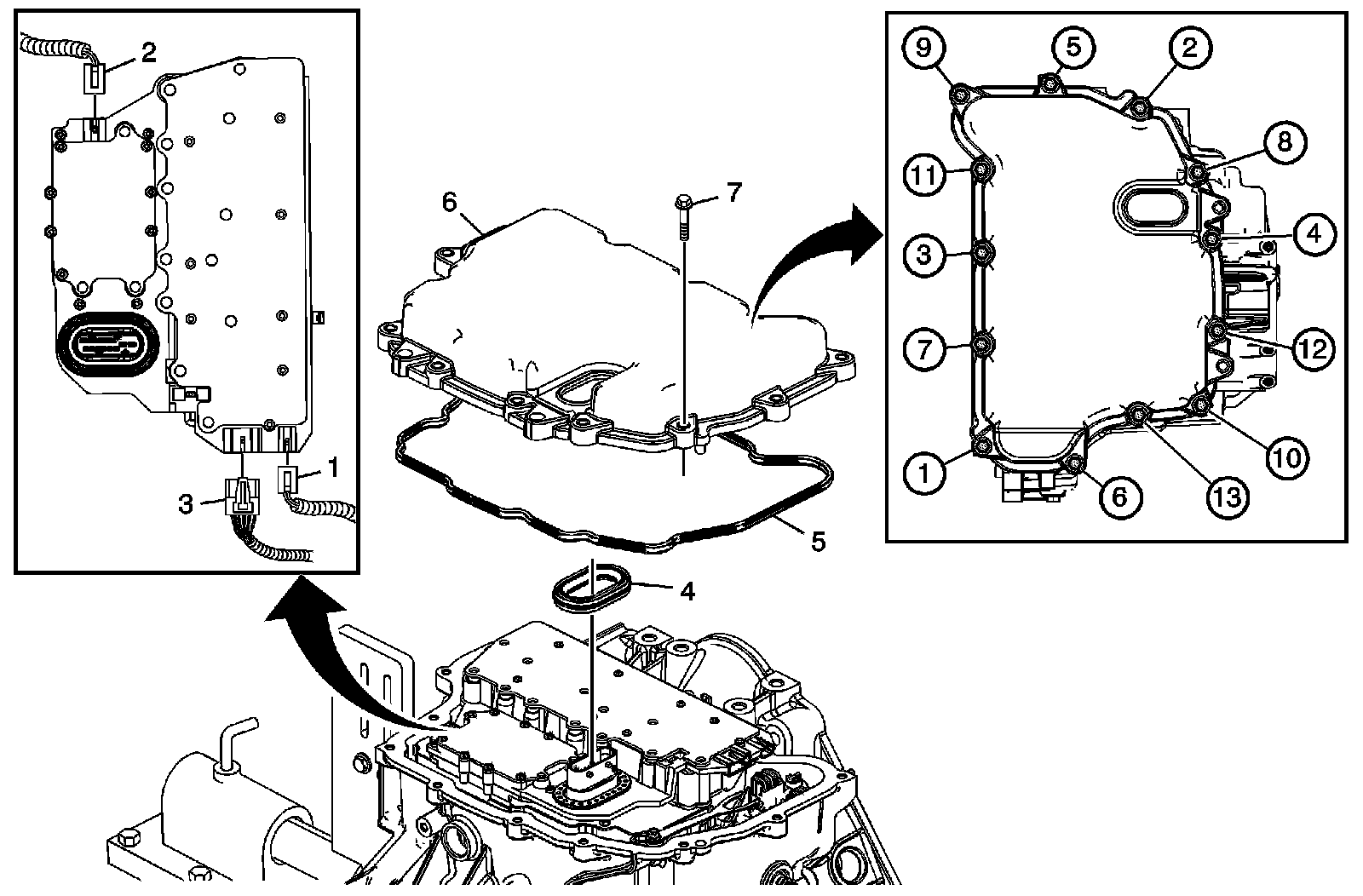

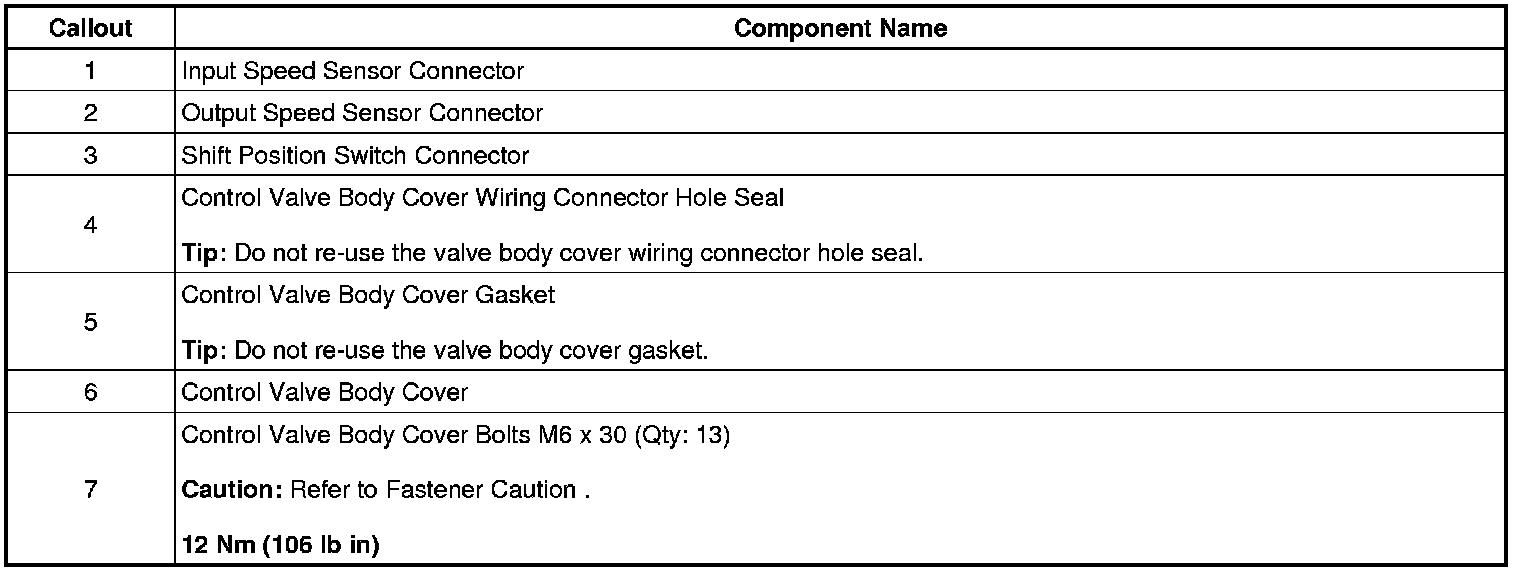

49. Control Valve Body Cover Installation




Control Valve Body Cover Installation
