Home >> Buick >> 2010 >> LaCrosse AWD V6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6T30/6T40/6T45 - Automatic Transmission >> 41. Torque Converter Housing with Fluid Pump Assembly Installation (6T40/45/50)

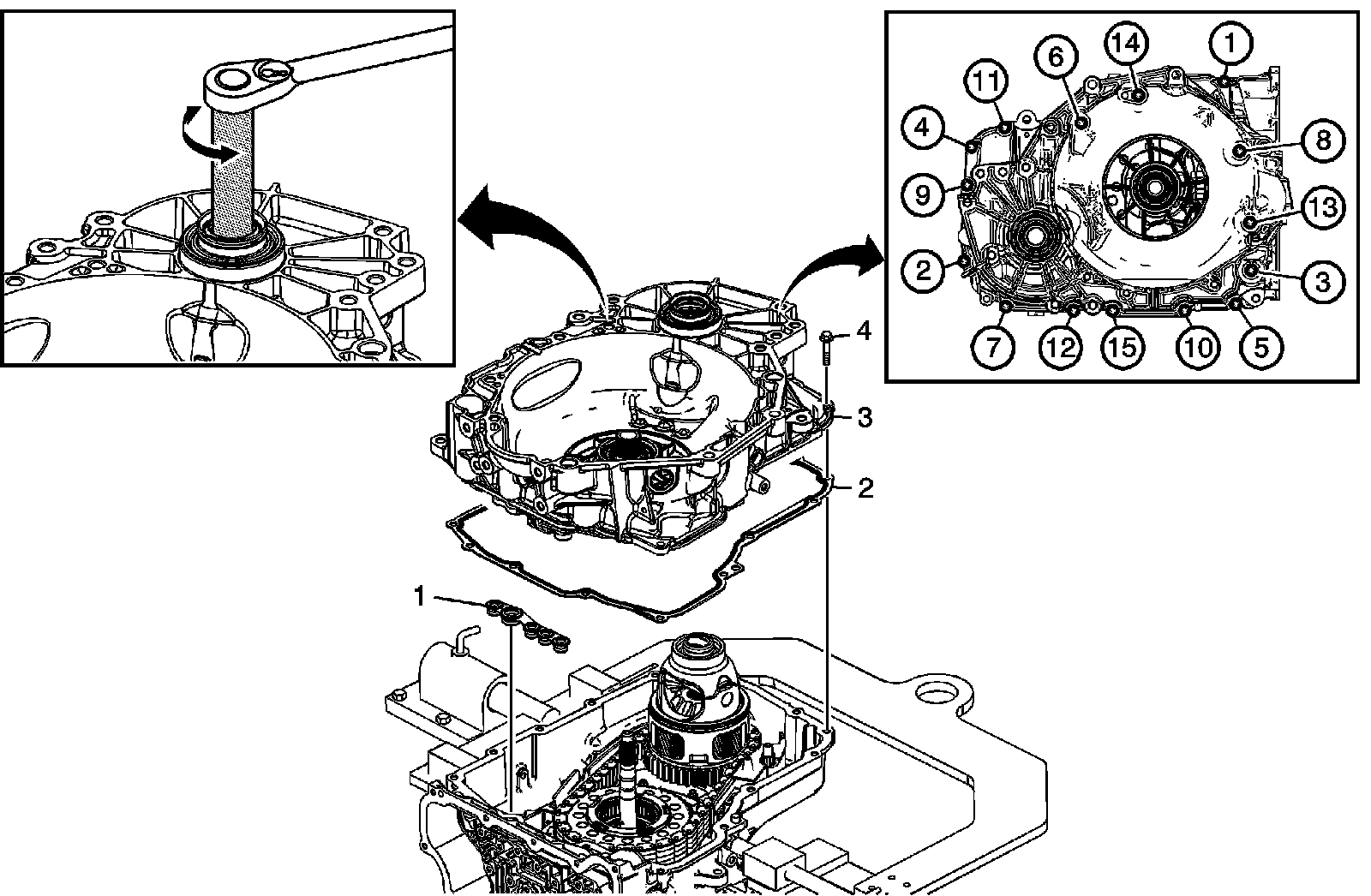

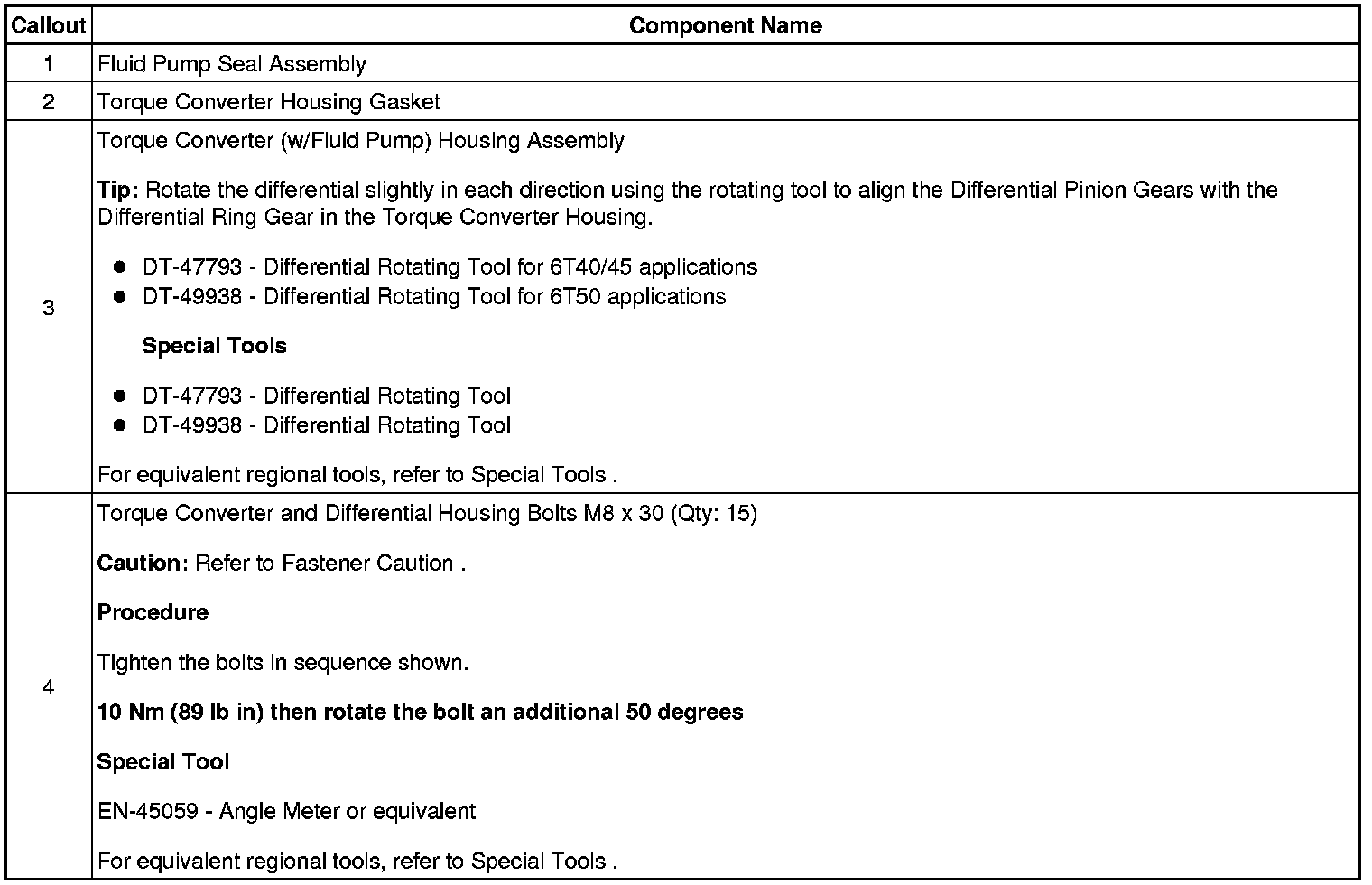

41. Torque Converter Housing with Fluid Pump Assembly Installation (6T40/45/50)




Torque Converter Housing with Fluid Pump Assembly Installation (6T40/45/50)
