6T30/6T40/6T45 - Automatic Transmission
>>
31. Drive and Driven Sprocket, Drive Link, and Park Pawl Installation (6T40/45)
31. Drive and Driven Sprocket, Drive Link, and Park Pawl Installation (6T40/45)

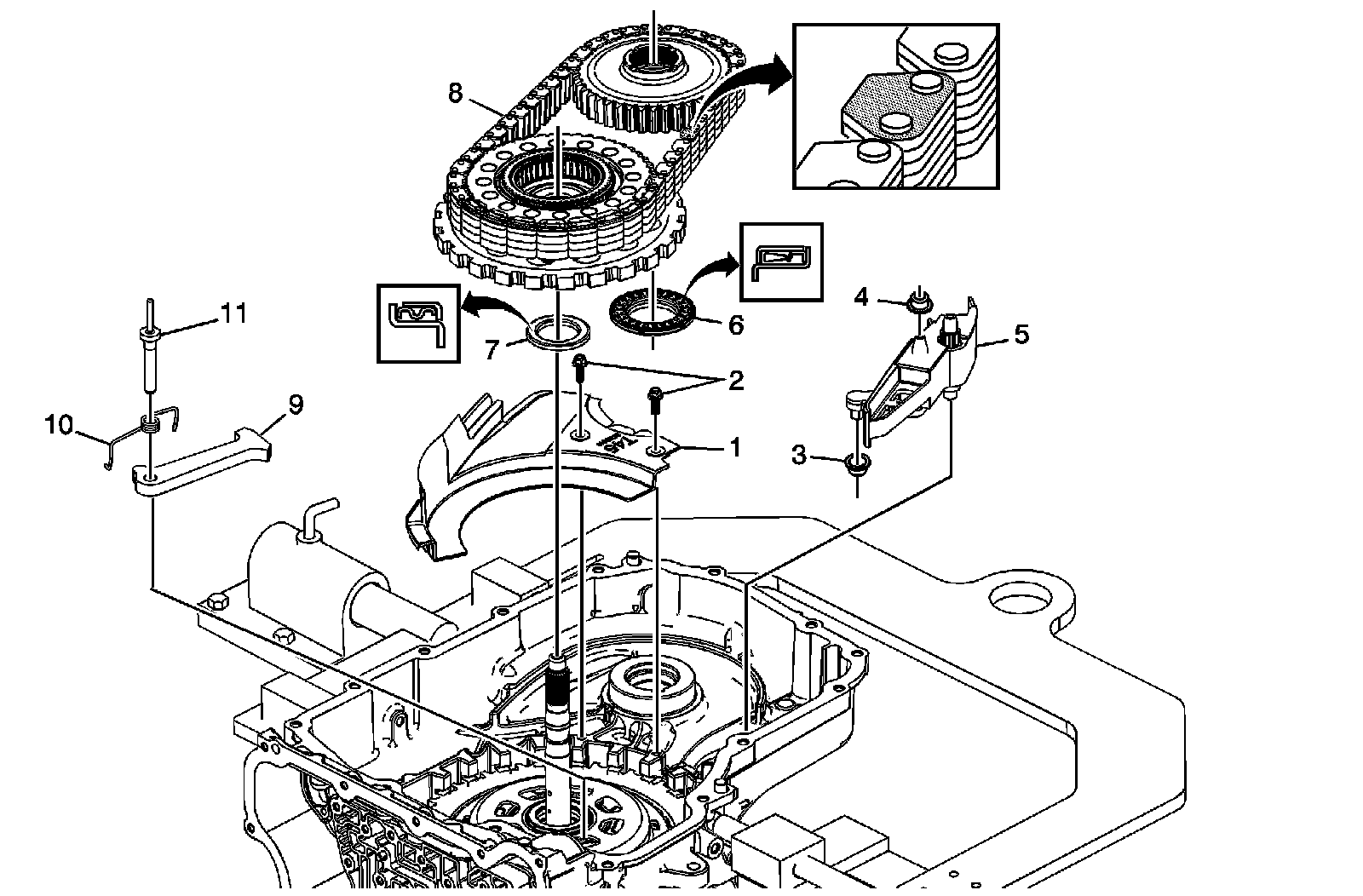

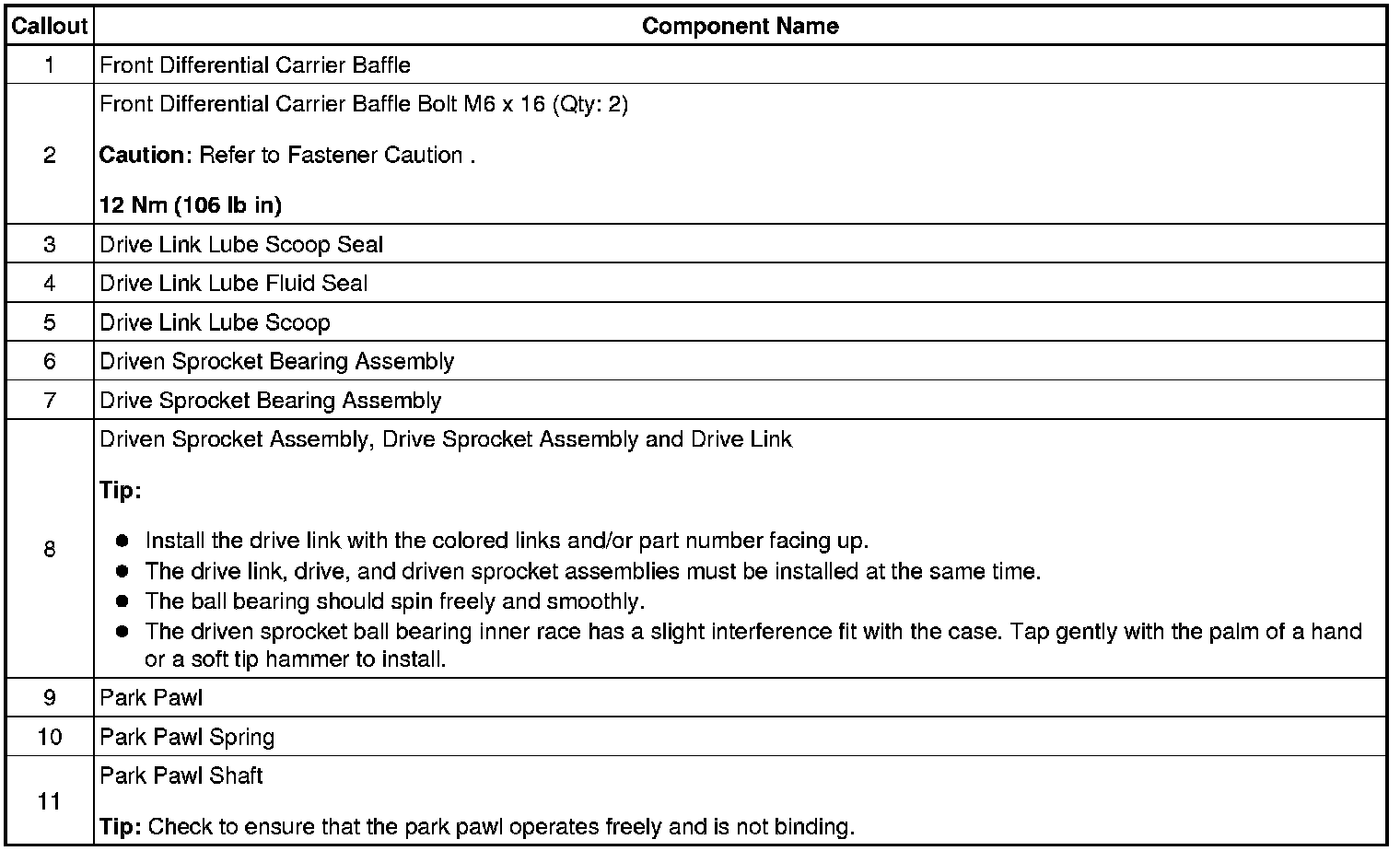

Drive and Driven Sprocket, Drive Link, and Park Pawl Installation (6T40/45)
