Home >> Buick >> 2010 >> LaCrosse AWD V6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6T30/6T40/6T45 - Automatic Transmission >> 28. Low and Reverse and 1-2-3-4 Clutch Housing Assemble

28. Low and Reverse and 1-2-3-4 Clutch Housing Assemble




Low and Reverse and 1-2-3-4 Clutch Housing Assemble

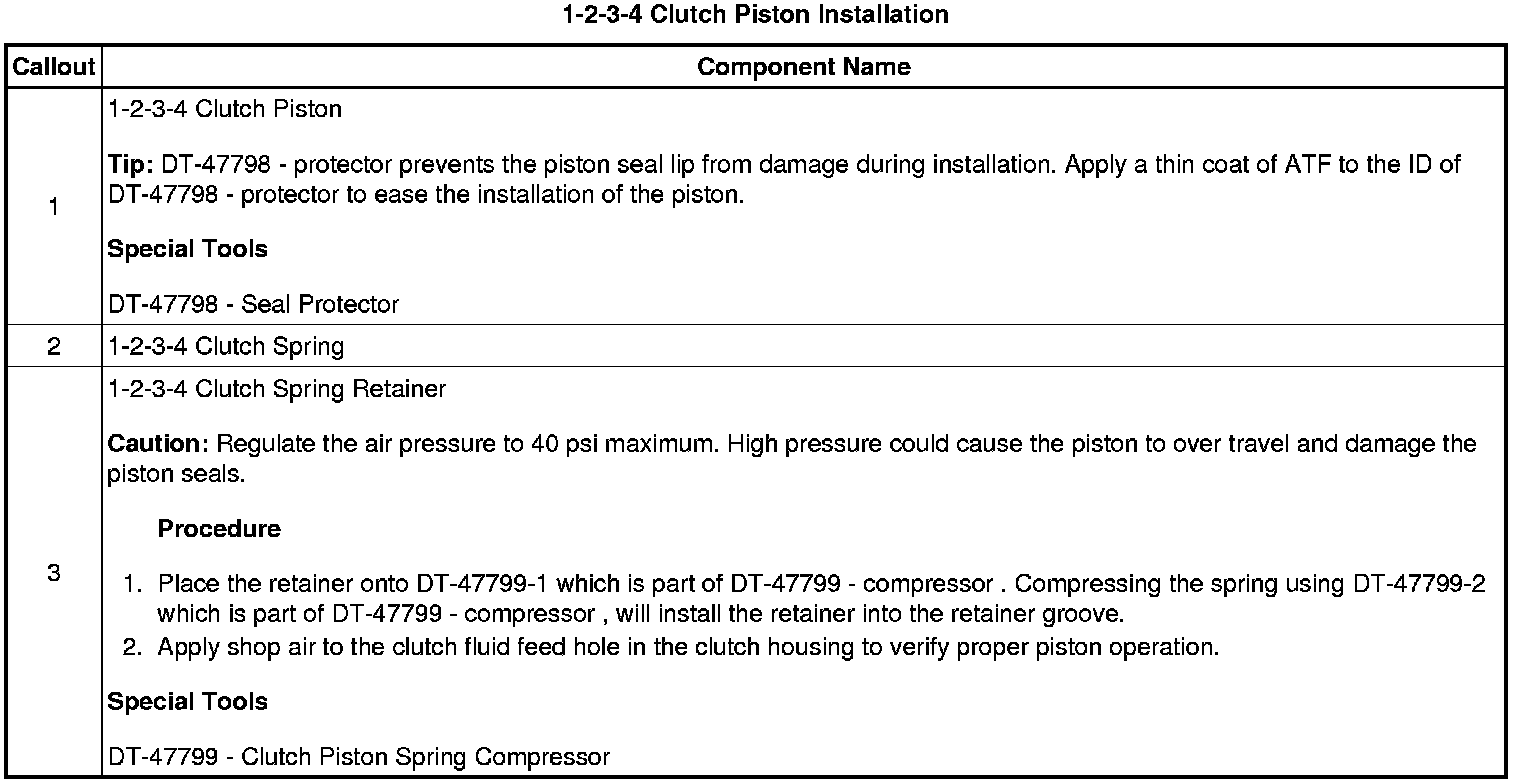

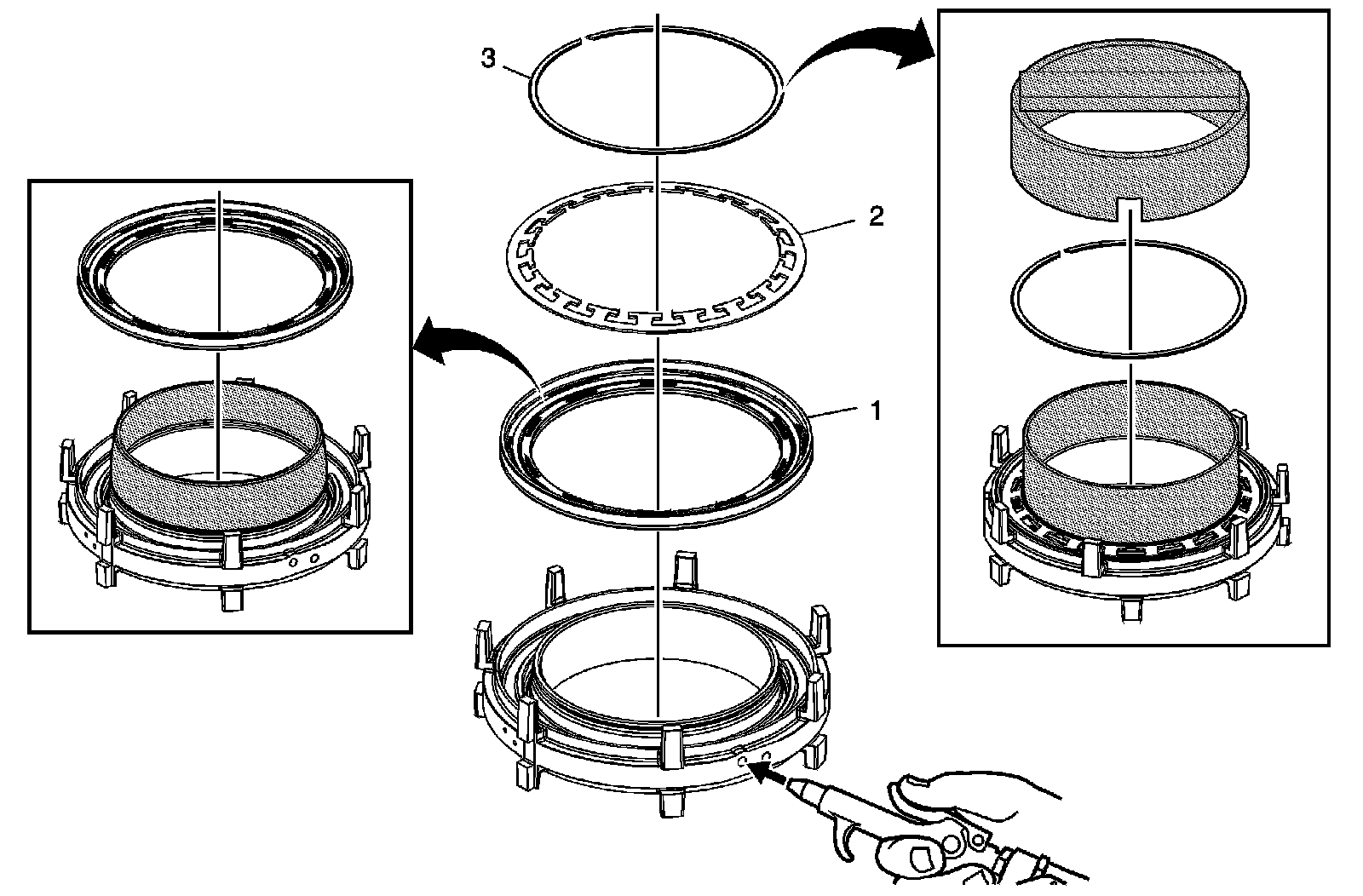

1-2-3-4 Clutch Piston Installation

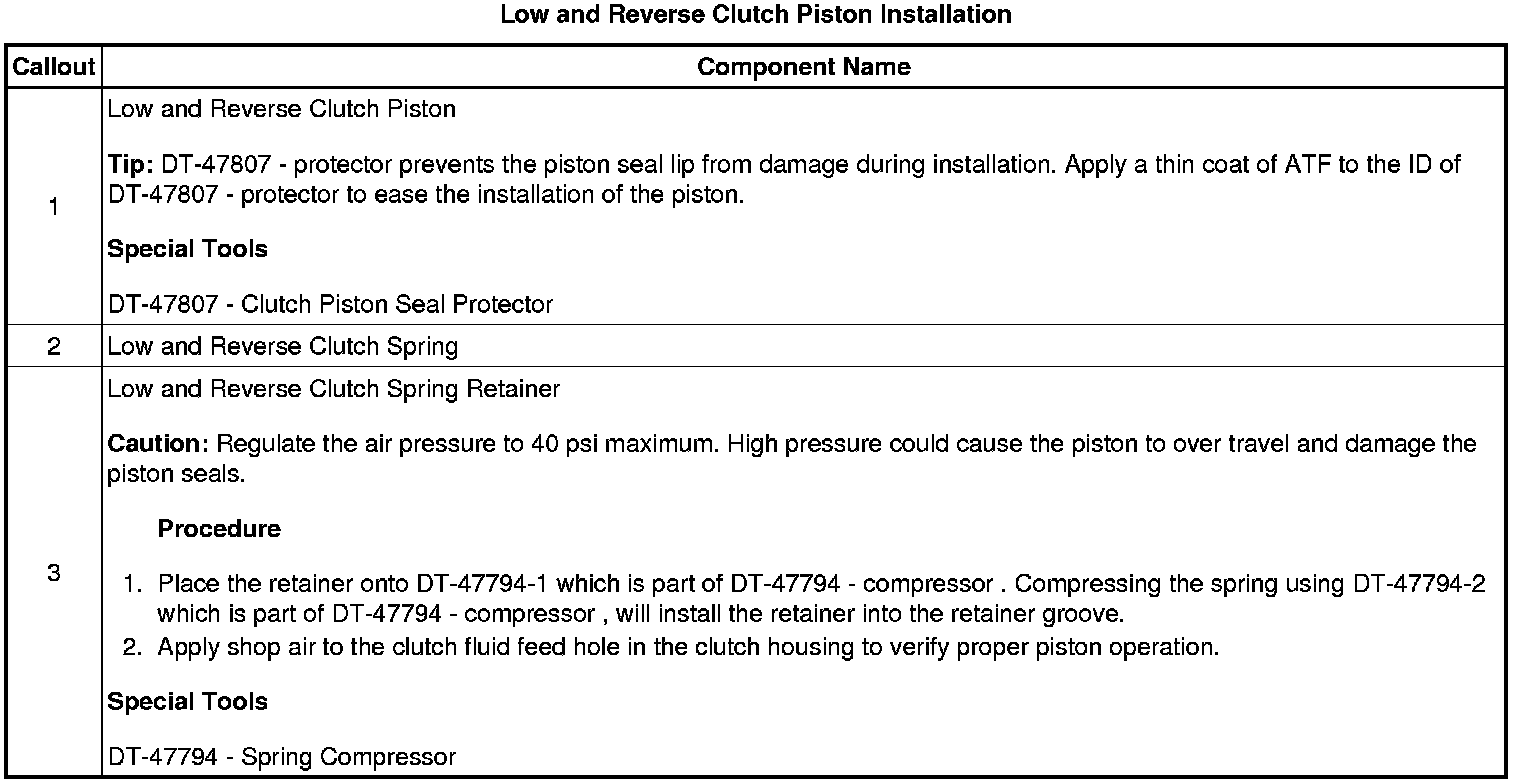

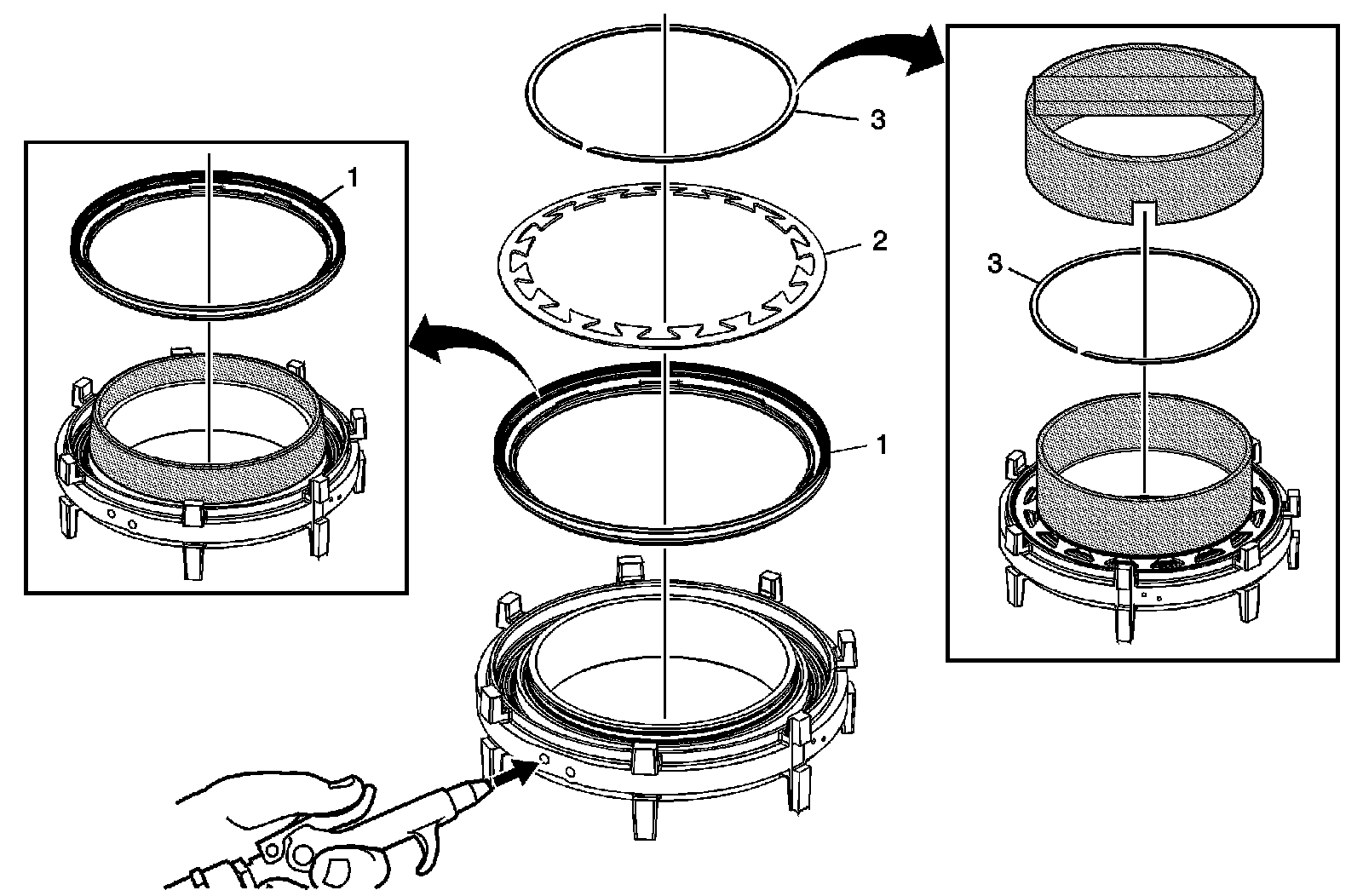

Low and Reverse Clutch Piston Installation
