Home >> Buick >> 2010 >> LaCrosse AWD V6-3.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X800 - X899 >> X801

X801

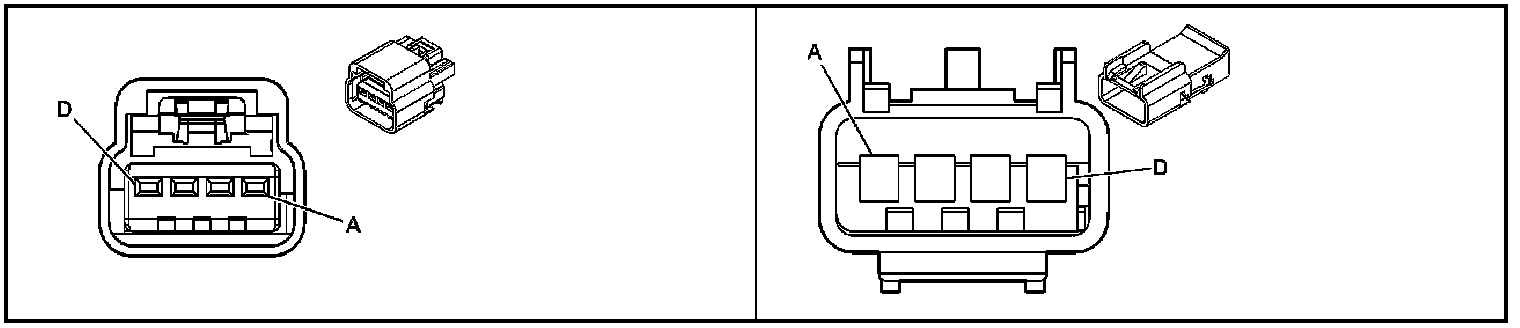

Inline Harness Connector End Views

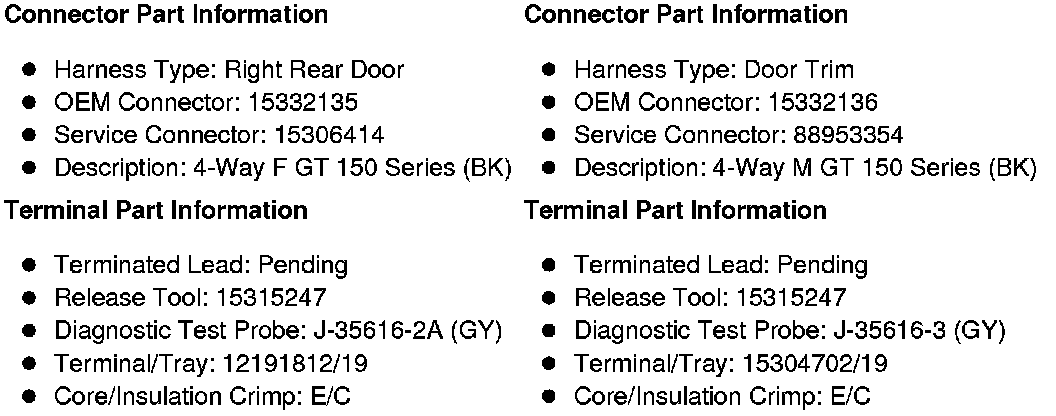

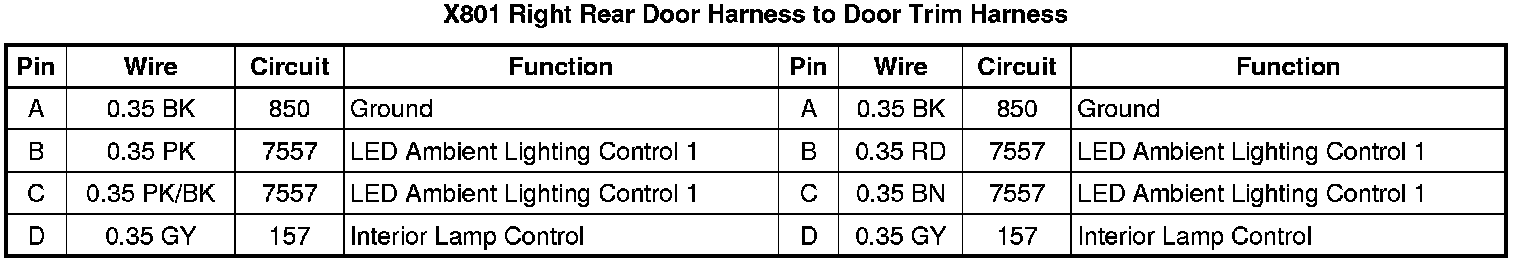

X801 Right Rear Door Harness to Door Trim Harness
