X205
X205

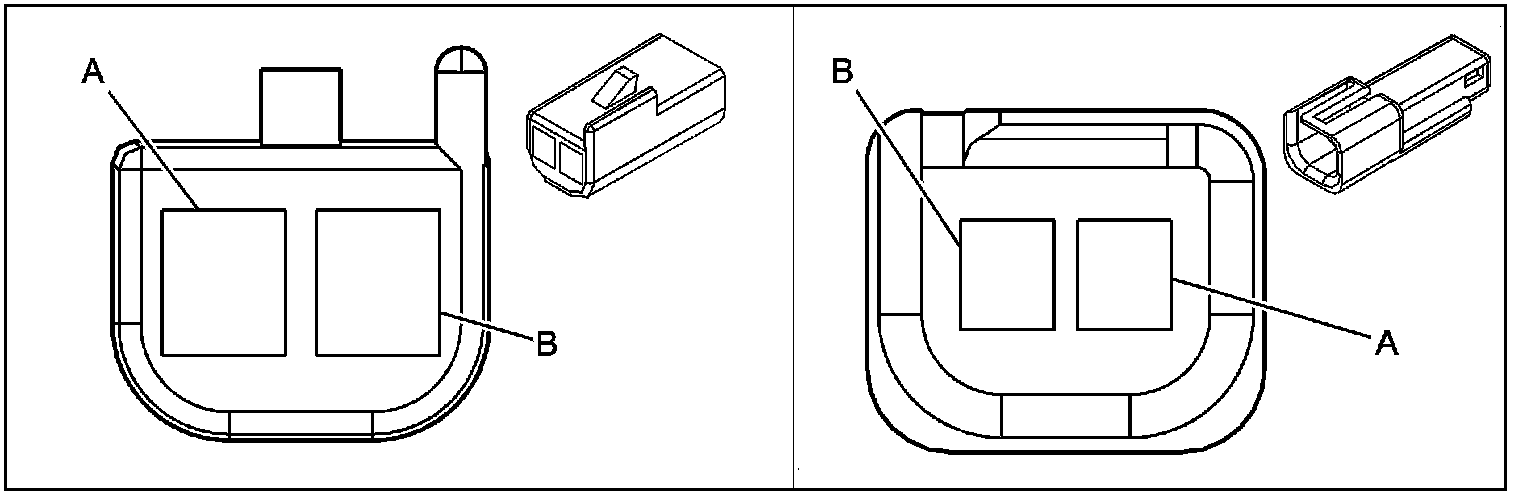

Inline Harness Connector End Views

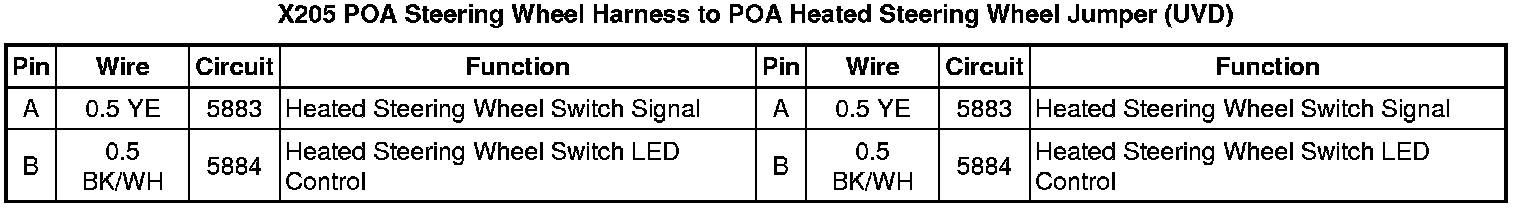

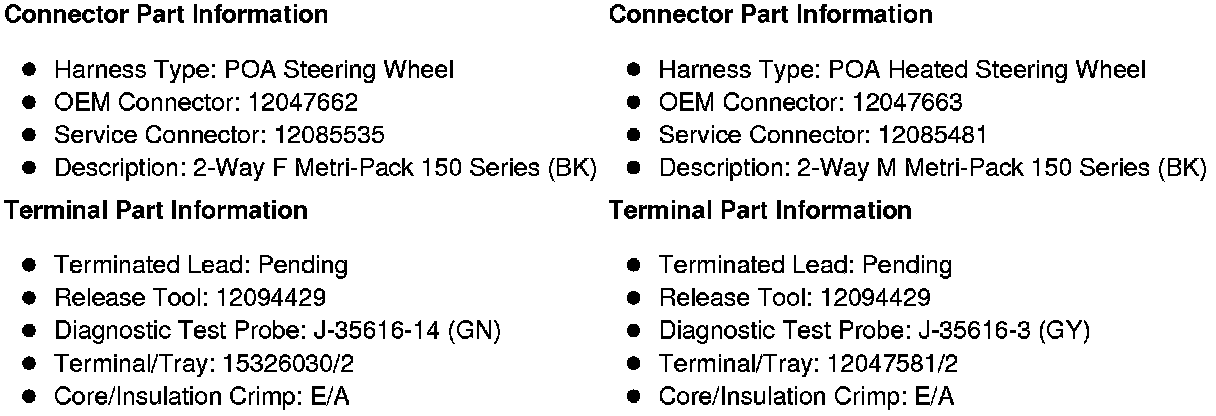

X205 POA Steering Wheel Harness to POA Heated Steering Wheel Jumper (UVD)
