Ignition Coil: Diagrams




Component Connector End Views

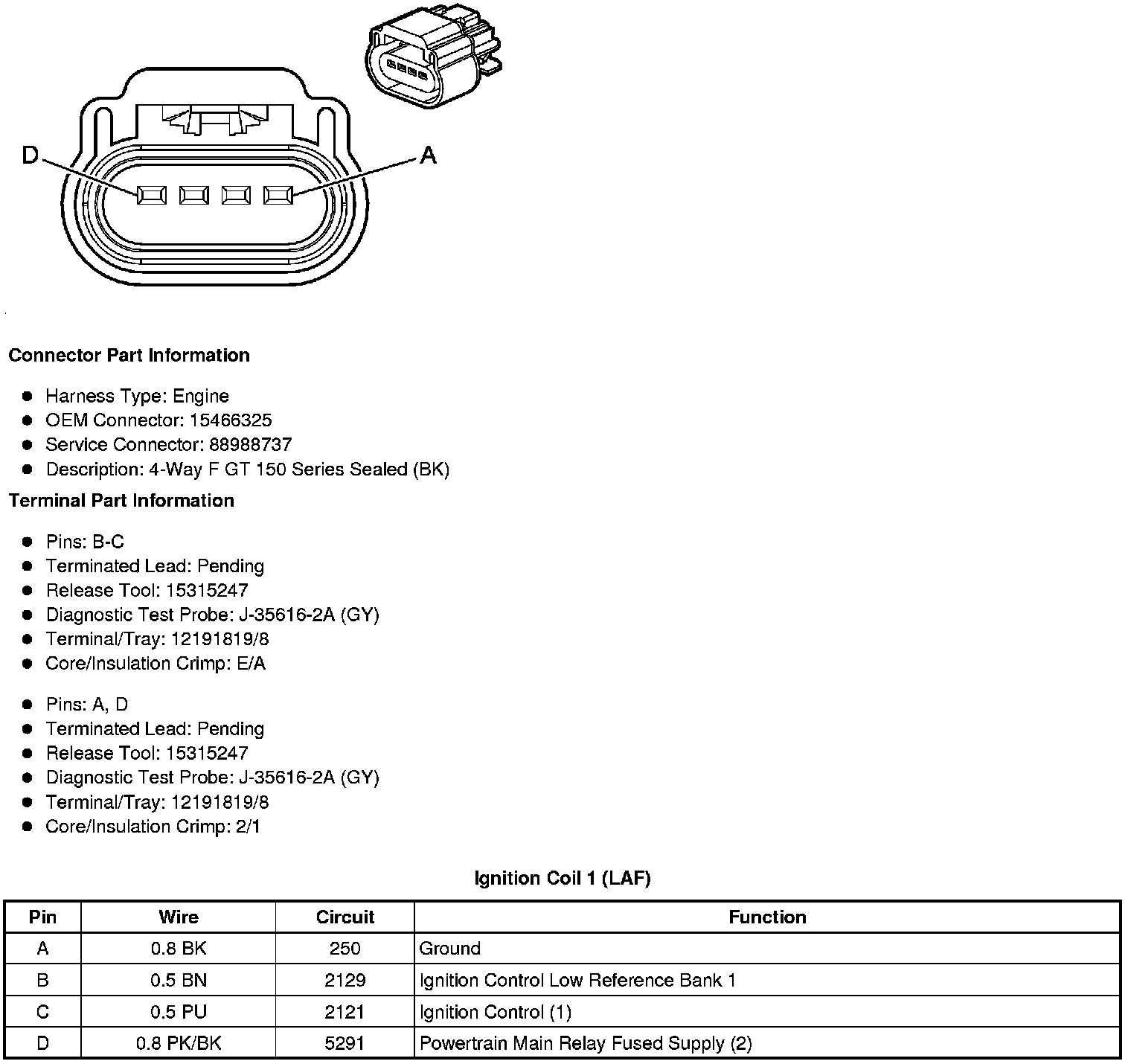

Ignition Coil 1 (LAF)





Ignition Coil 1 (LF1 or LLT)





Ignition Coil 2 (LAF)





Ignition Coil 2 (LF1 or LLT)

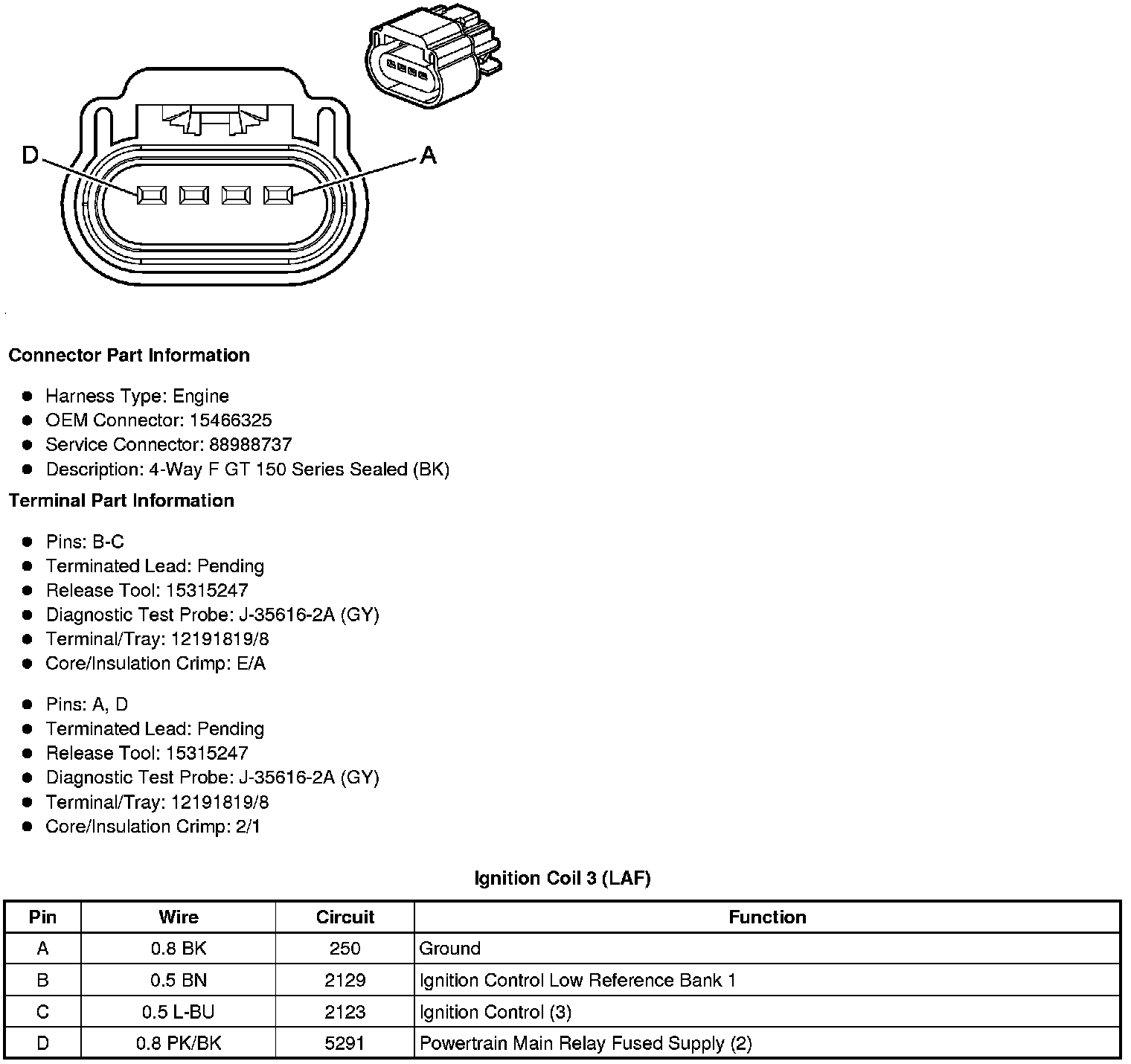

Ignition Coil 3 (LAF)





Ignition Coil 3 (LF1 or LLT)





Ignition Coil 4 (LAF)





Ignition Coil 4 (LF1 or LLT)





Ignition Coil 5 (LF1 or LLT)

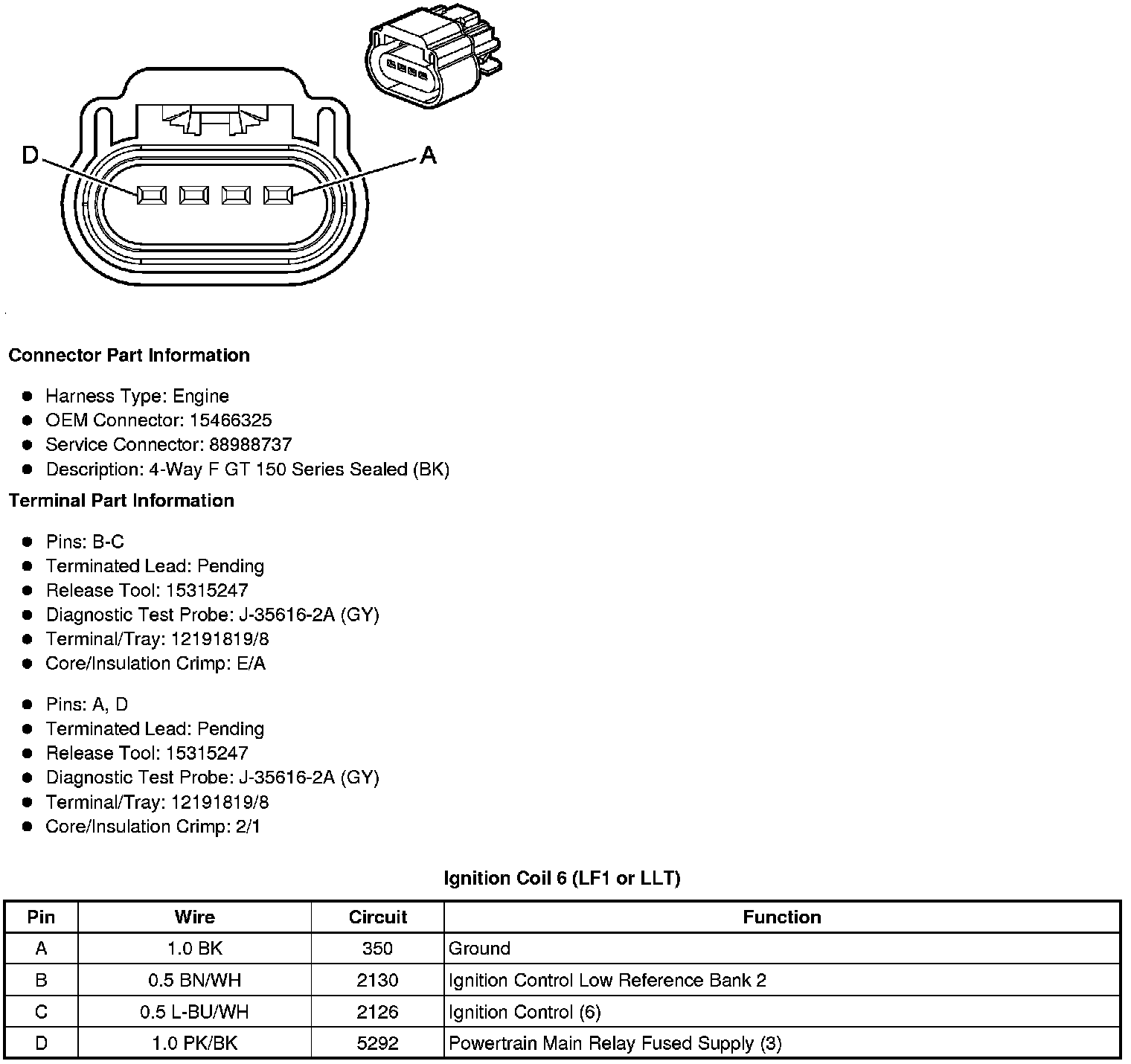

Ignition Coil 6 (LF1 or LLT)
