Throttle Body: Diagrams




Component Connector End Views

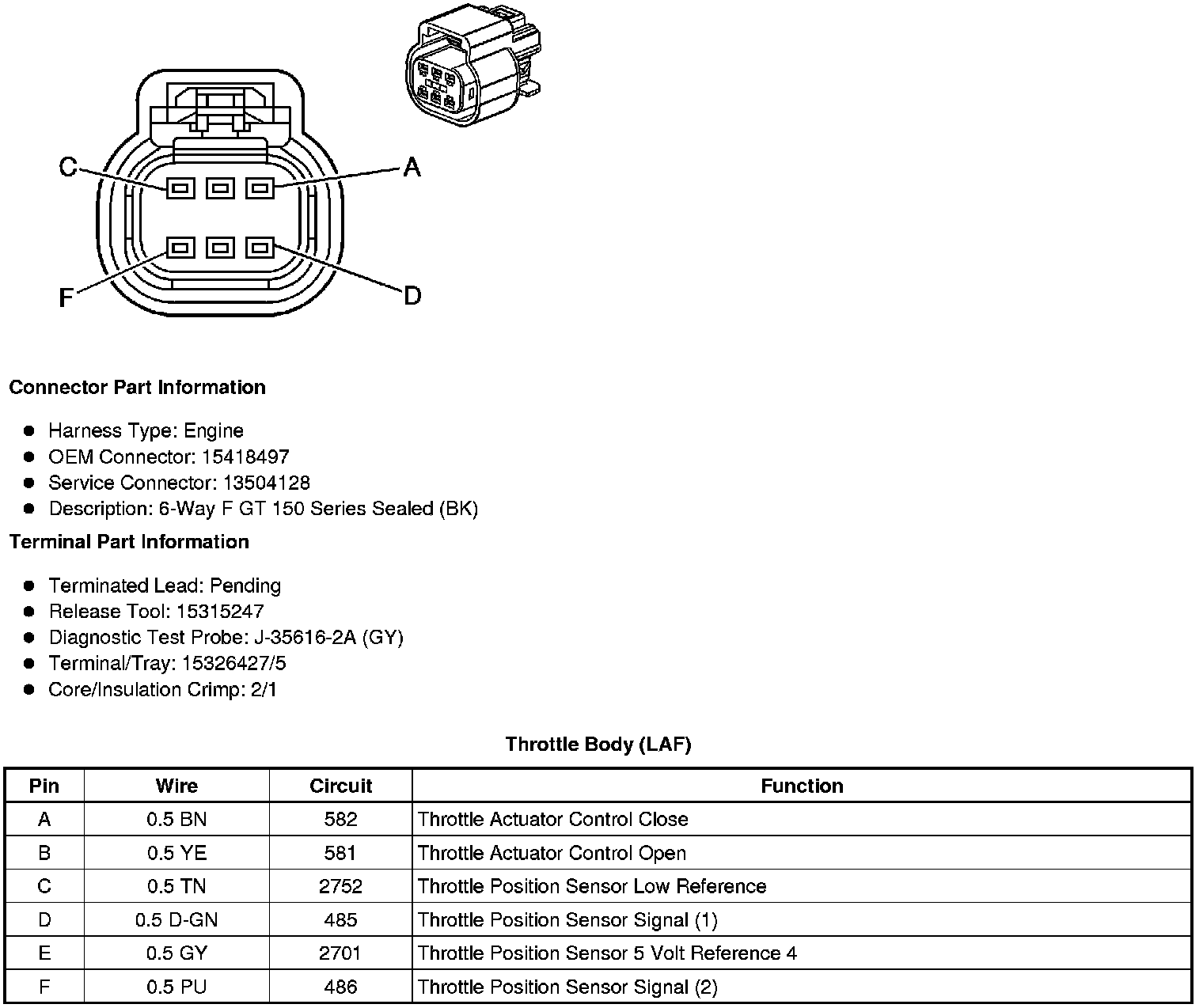

Throttle Body (LAF)

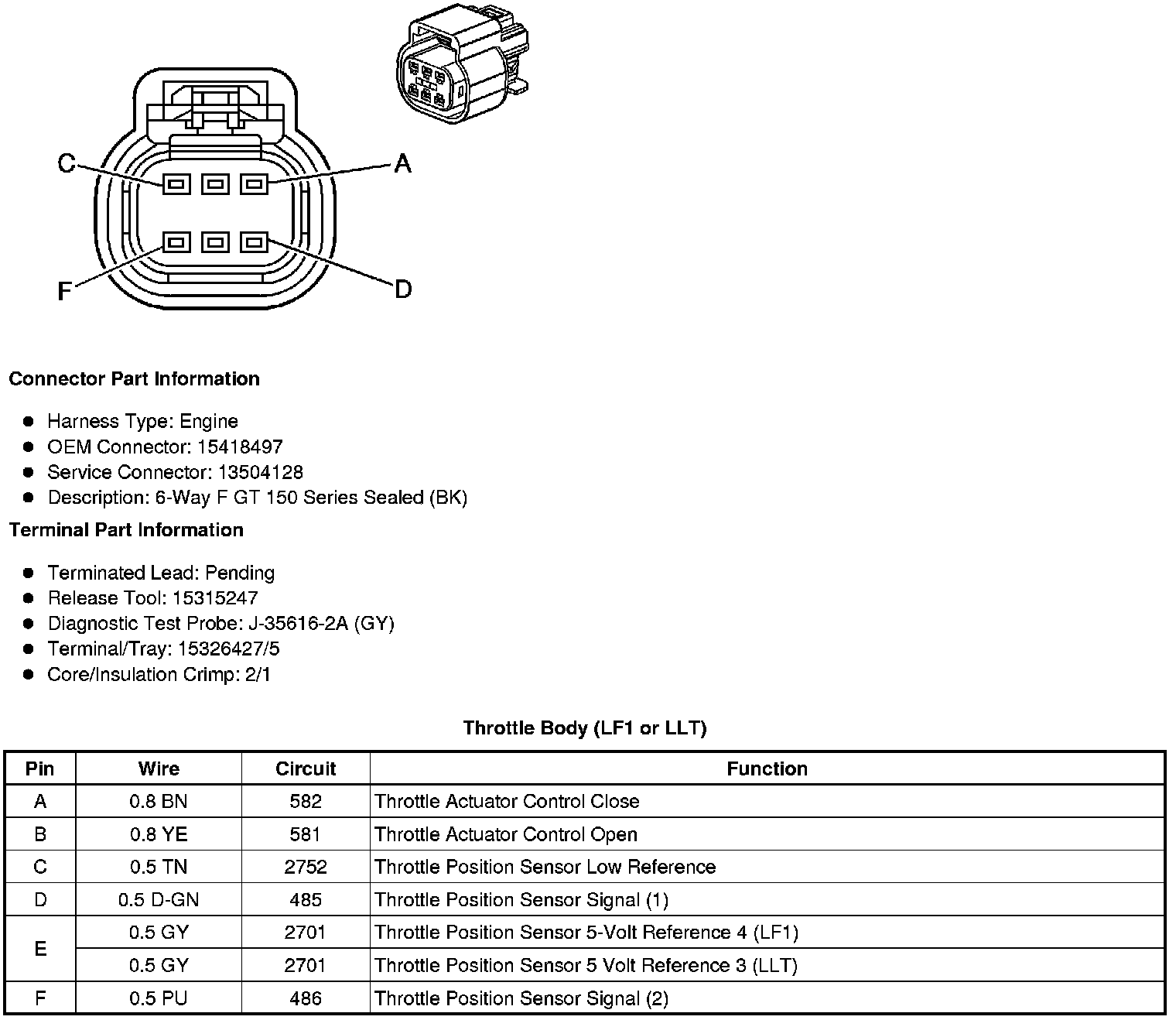

Throttle Body (LF1 or LLT)
