Home >> Buick >> 2010 >> LaCrosse AWD V6-3.0L >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Diagrams

Backup Lamp: Diagrams




Component Connector End Views

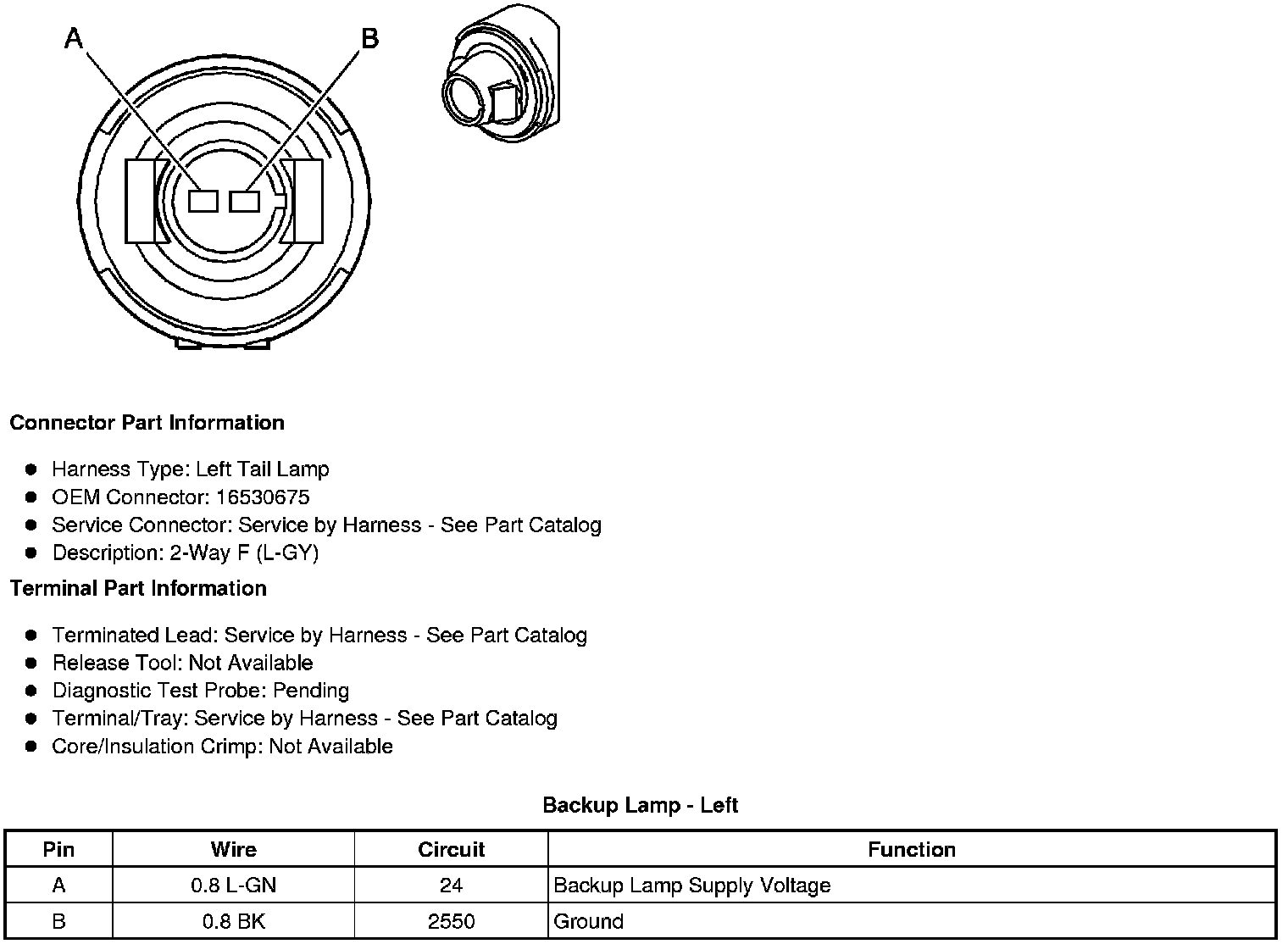

E5A Backup Lamp - Left





E5B Backup Lamp - Right
