Rear of Vehicle Harness Routing




Harness Routing Views

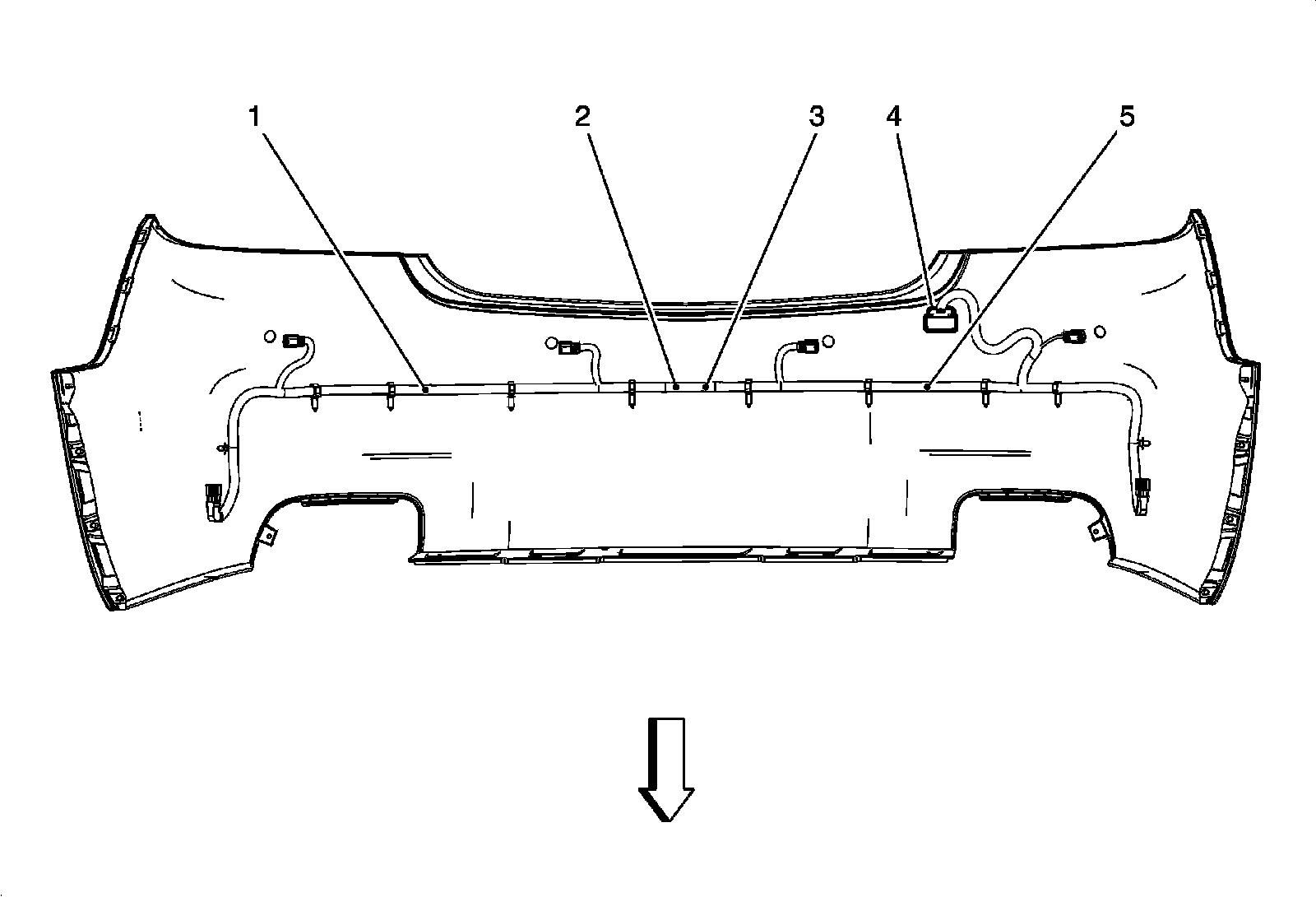

Rear Park Assist Harness Routing - Rear Fascia




1 - J434
2 - J480
3 - J479
4 - X406
5 - J435
