Headlights/Daytime Running Lights (DRL) Schematics
>>

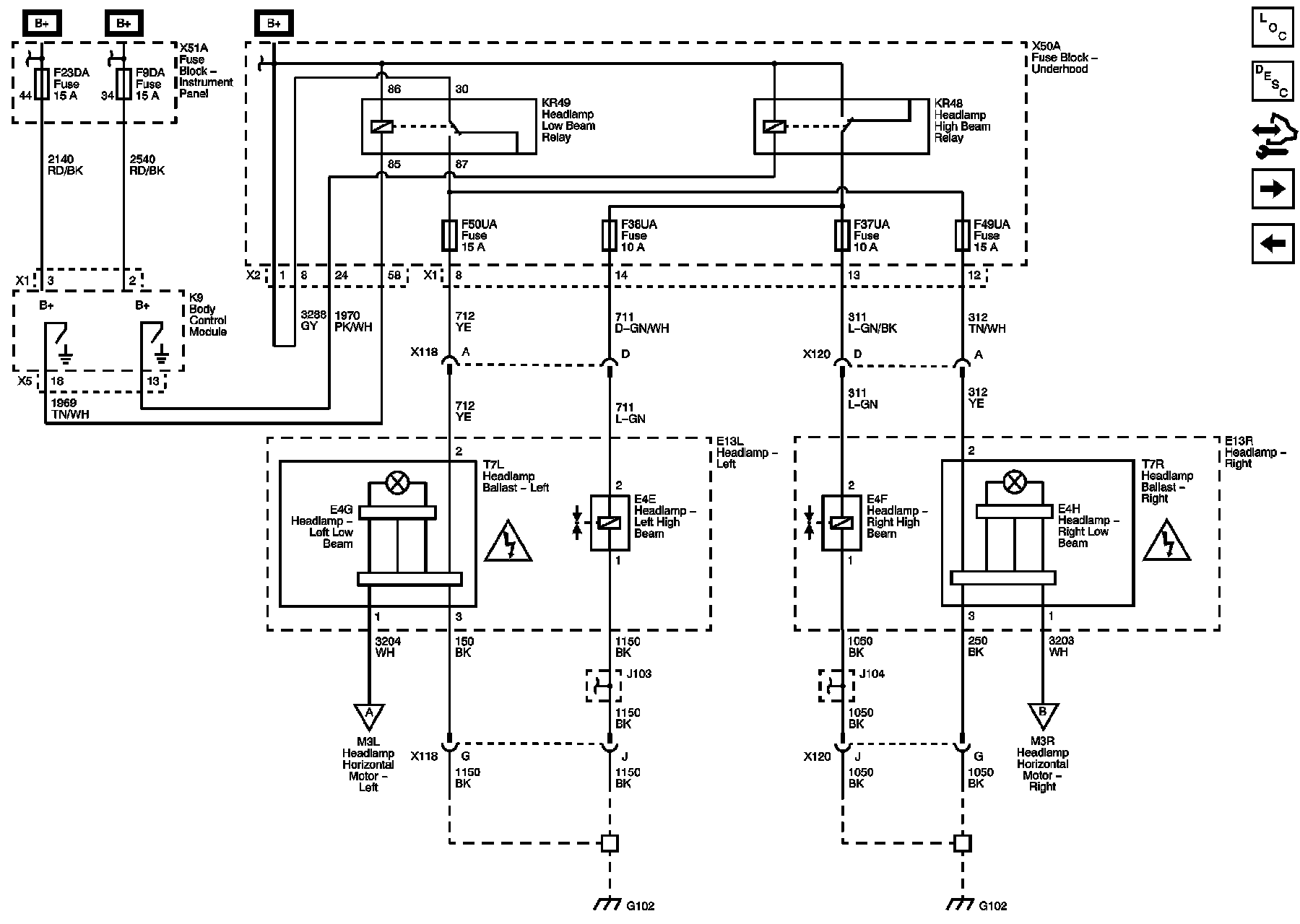

Headlights Schematic 3
Headlights Schematic 3
Headlights/Daytime Running Lights (DRL) Schematics
Headlamp
High Beam, Headlamp Low Beam (TT2)
