HVAC Schematics (CJ2)




HVAC Schematics (CJ2)

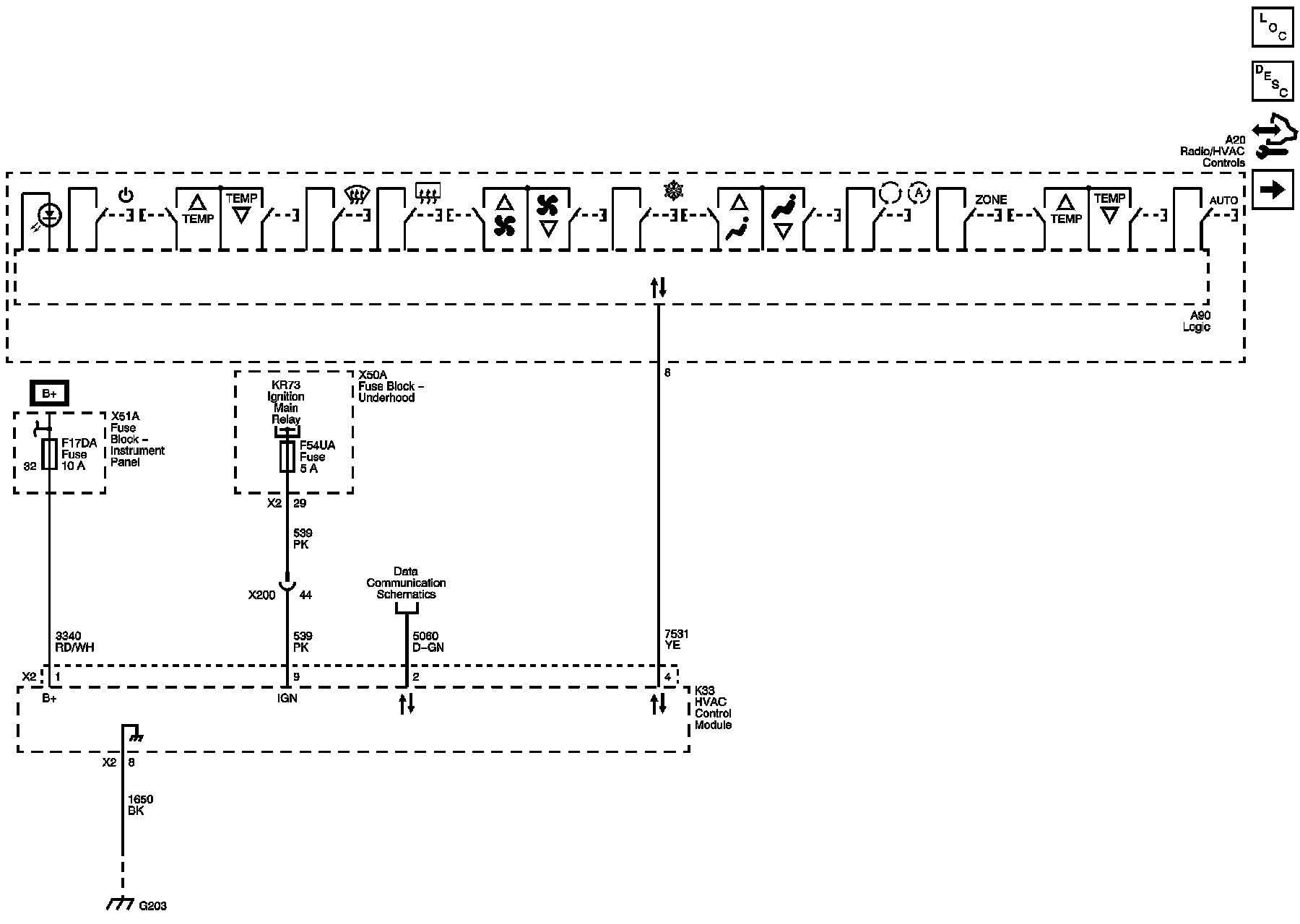

Power, Ground, and Serial Data

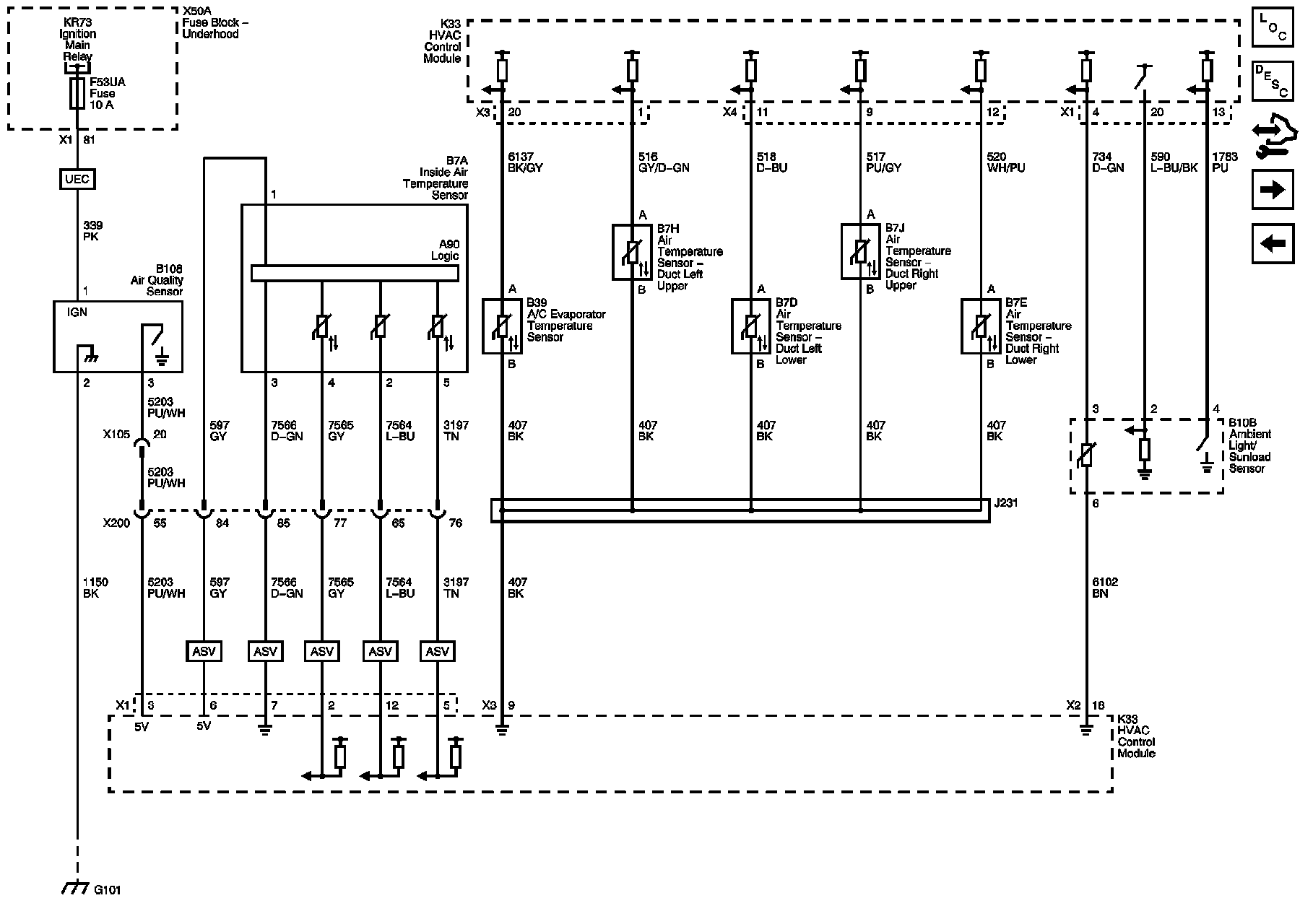

Sensors

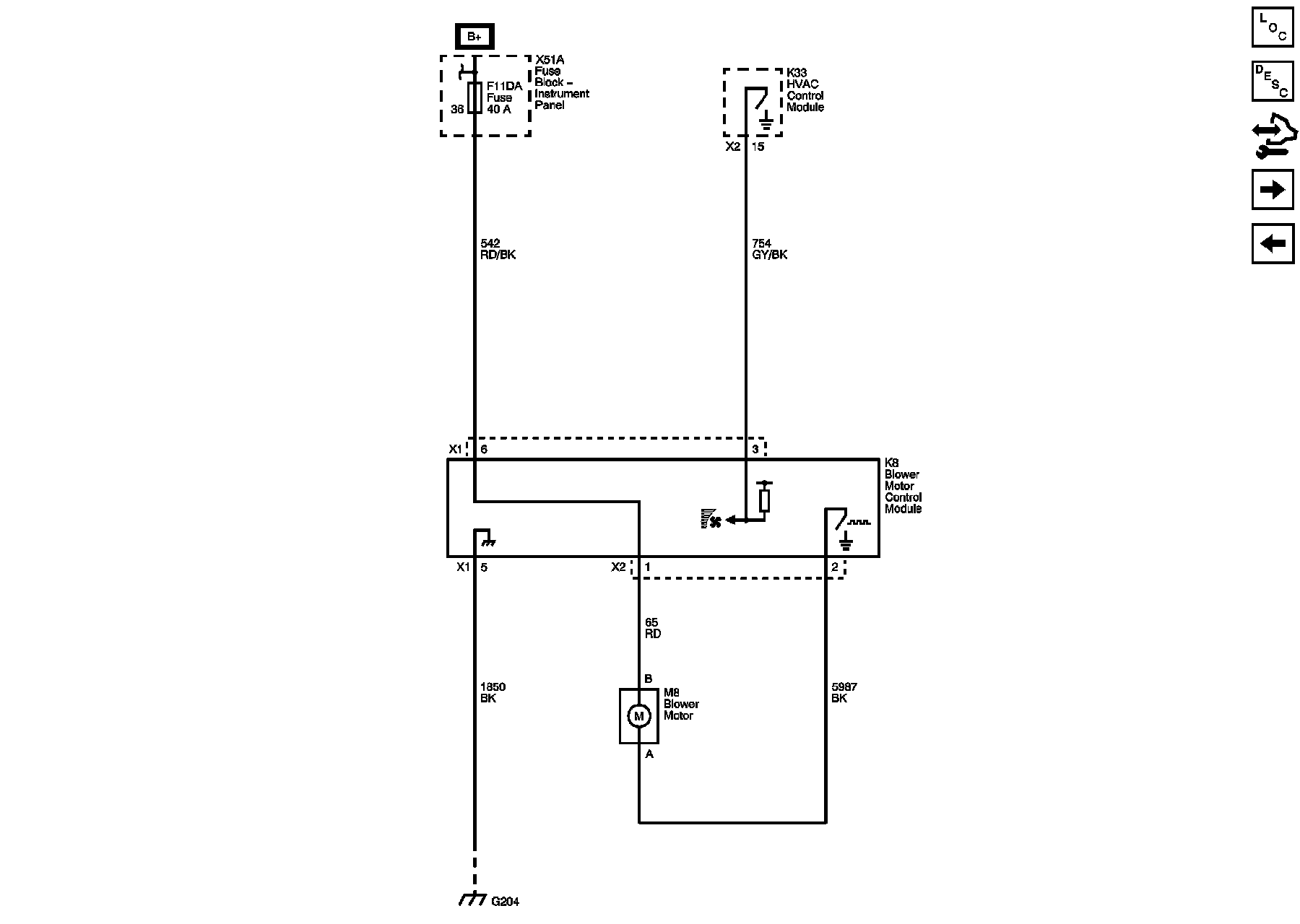

Blower Motor Controls

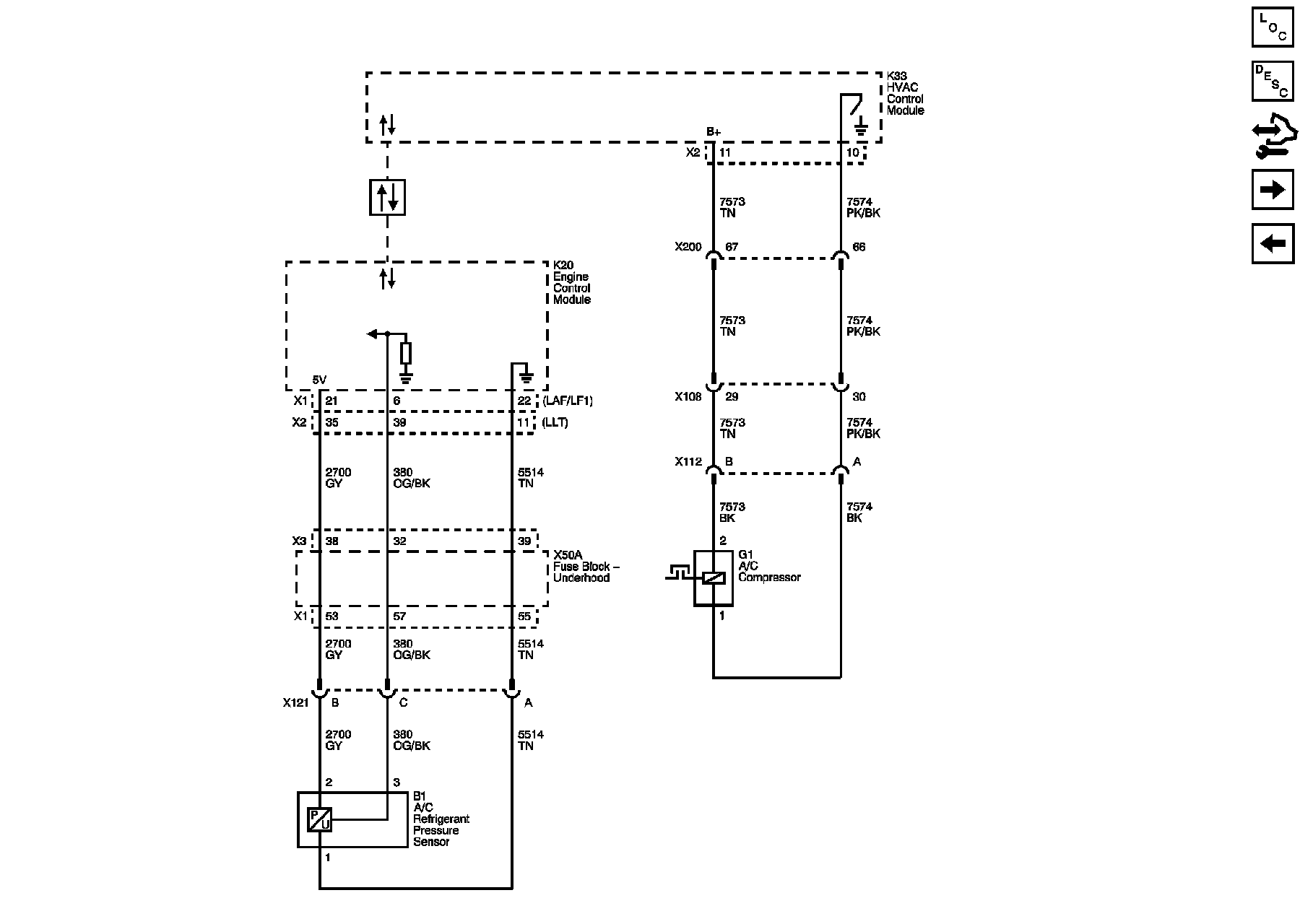

A/C Compressor Controls

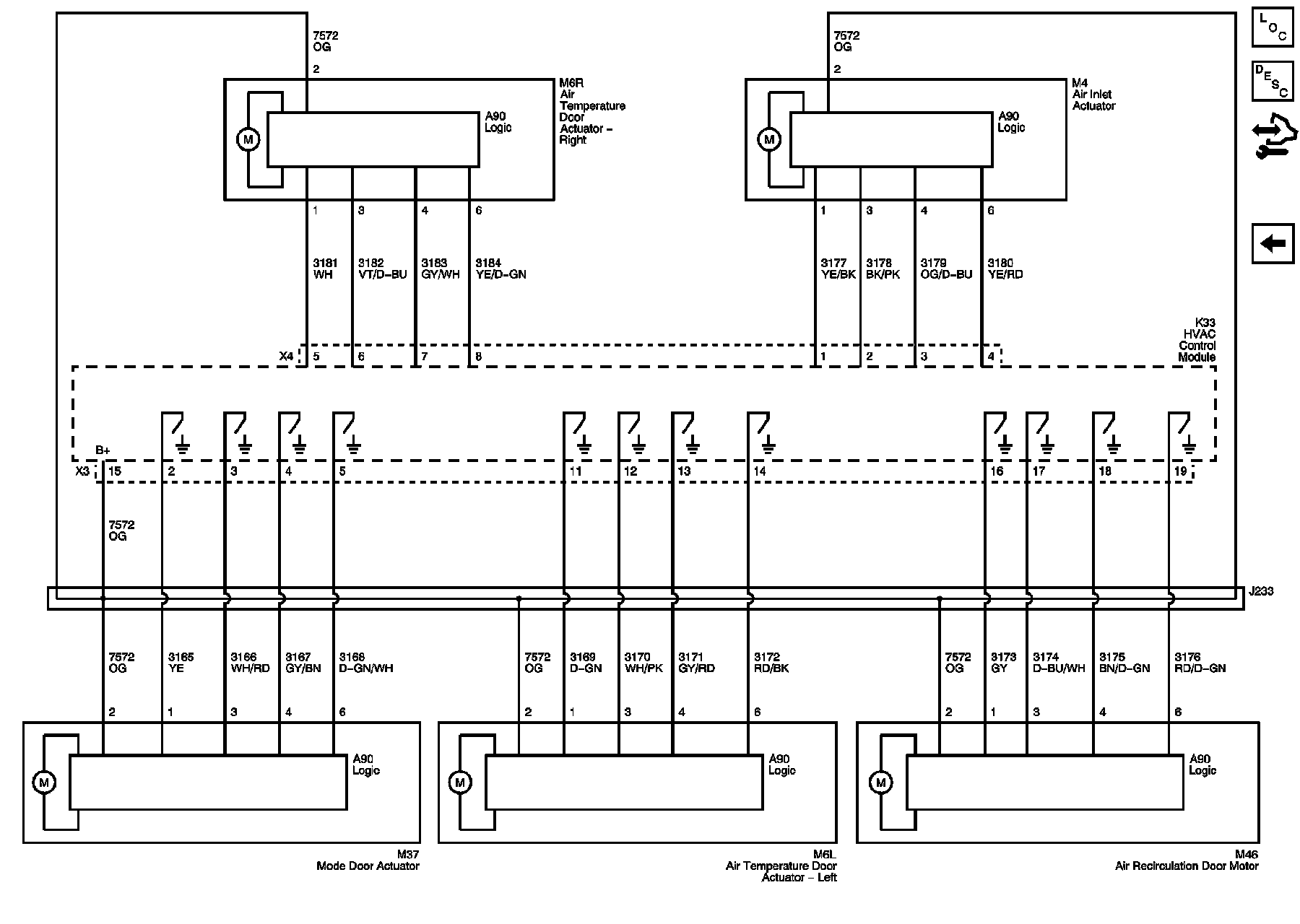

Air Delivery and Temperature Controls
