HVAC Schematics (C68)




HVAC Schematics (C68)

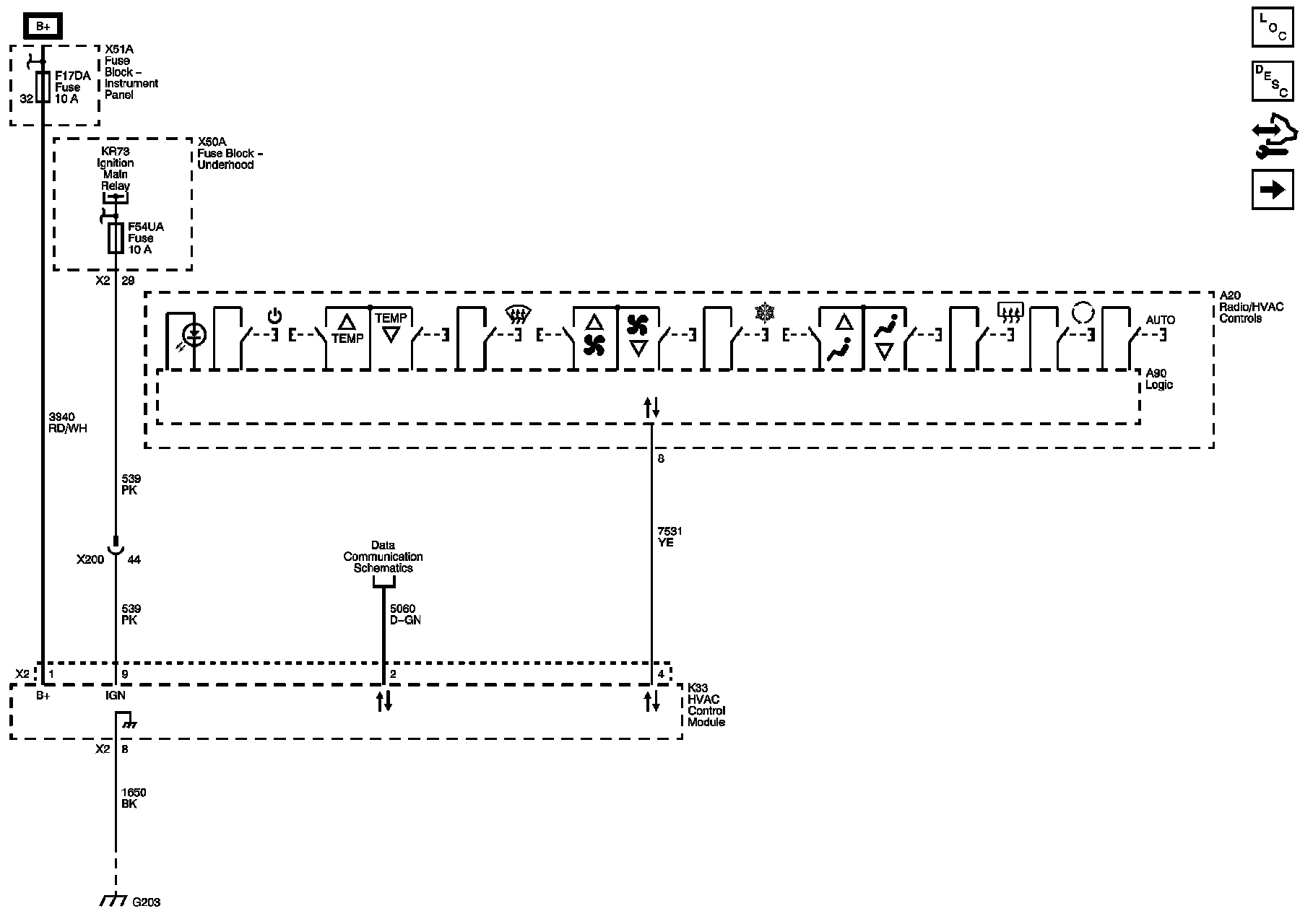

Power, Ground, and Serial Data

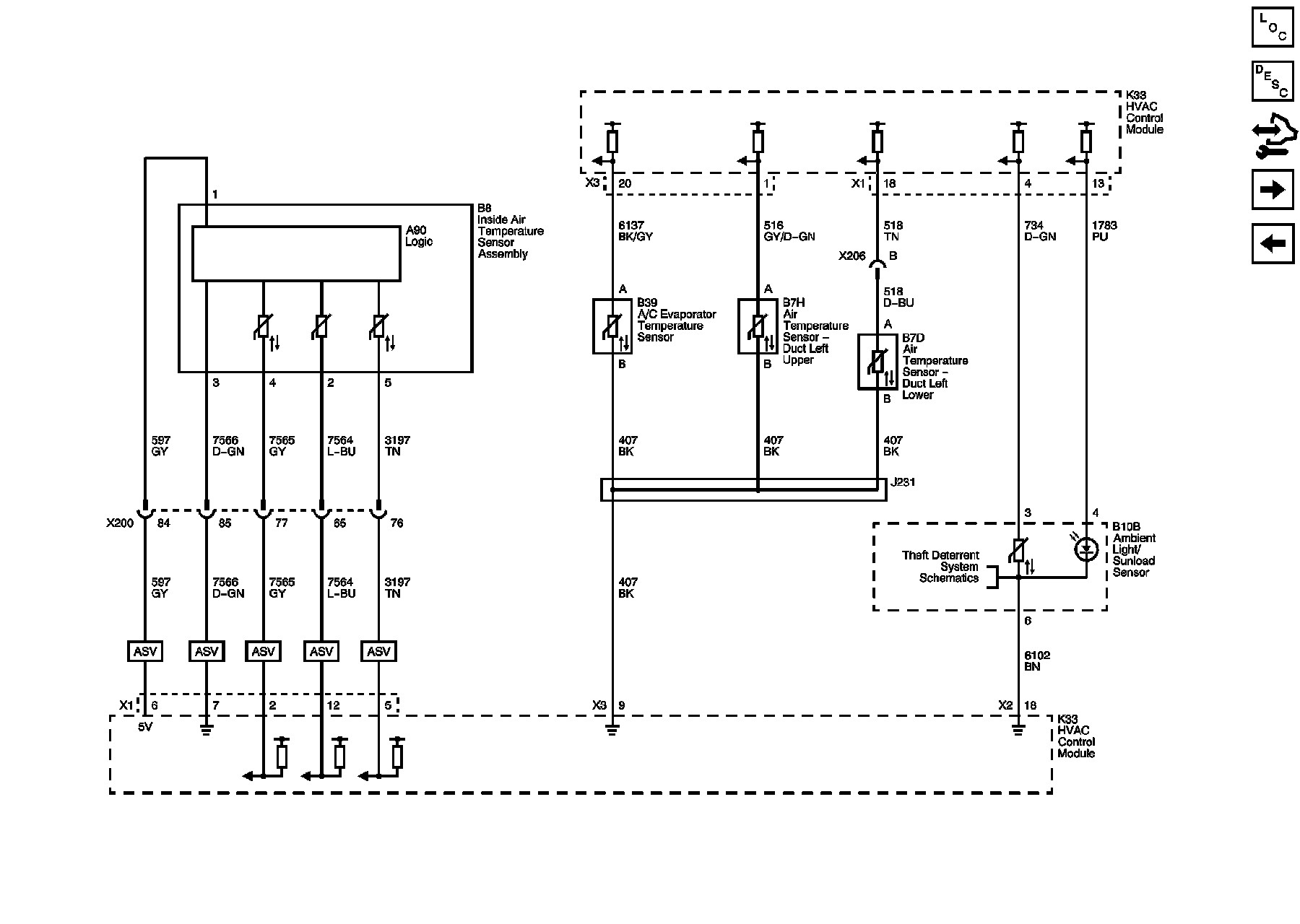

Sensors

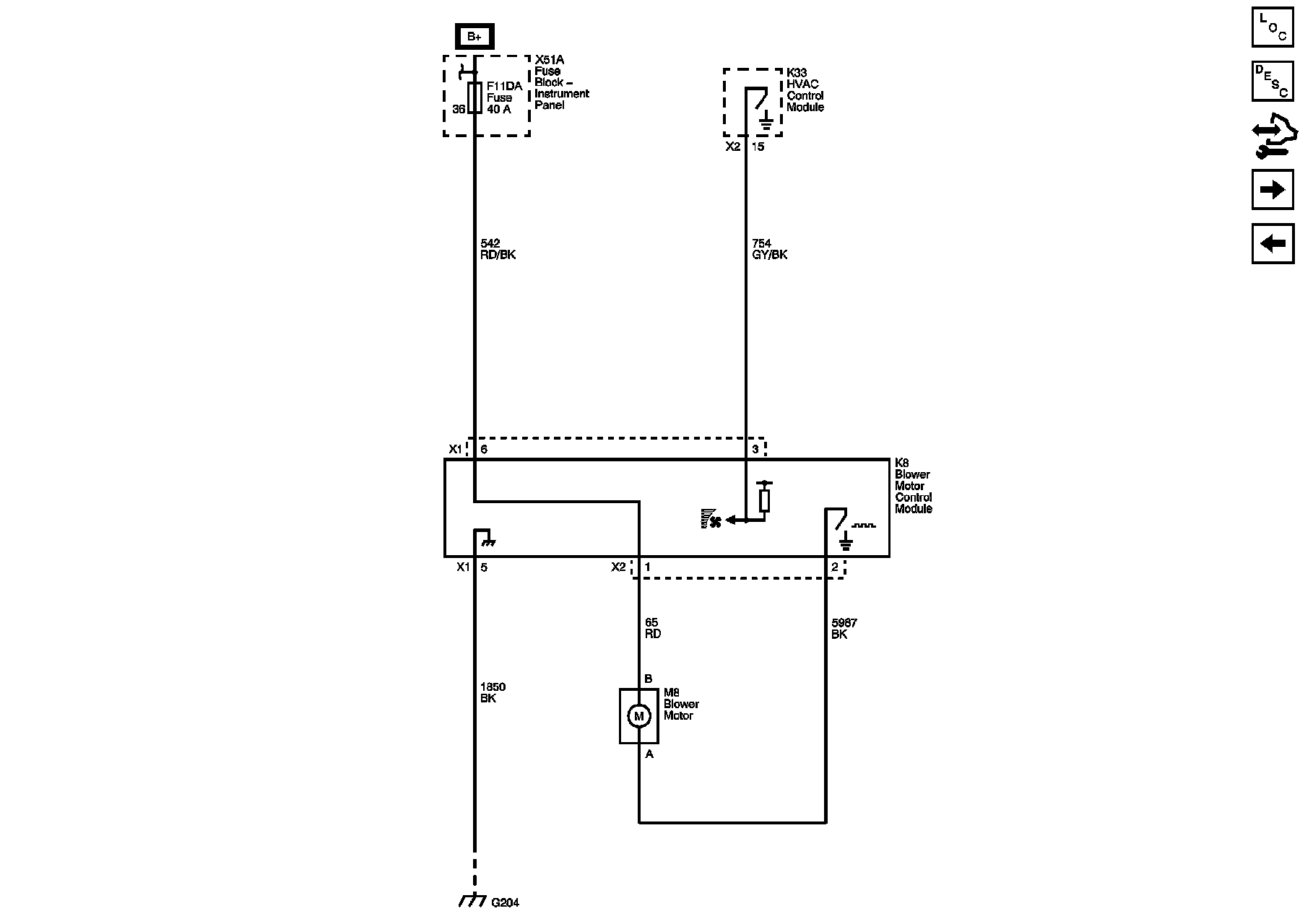

Blower Motor Controls





A/C Compressor Controls

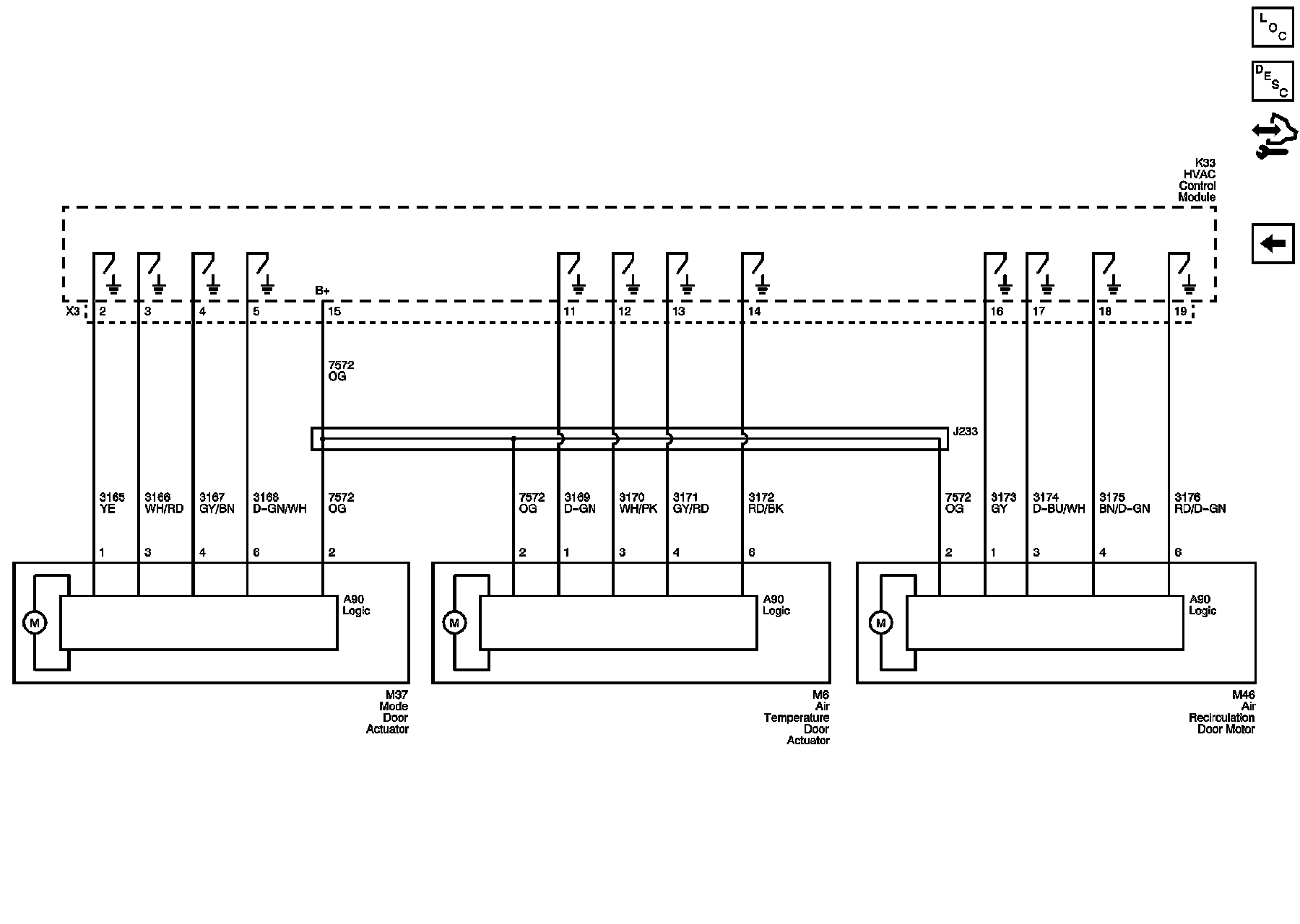

Air Delivery and Temperature Controls
