FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Buick
>>
2010
>>
LaCrosse AWD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Television / Monitor
Television / Monitor
Component Connector End Views

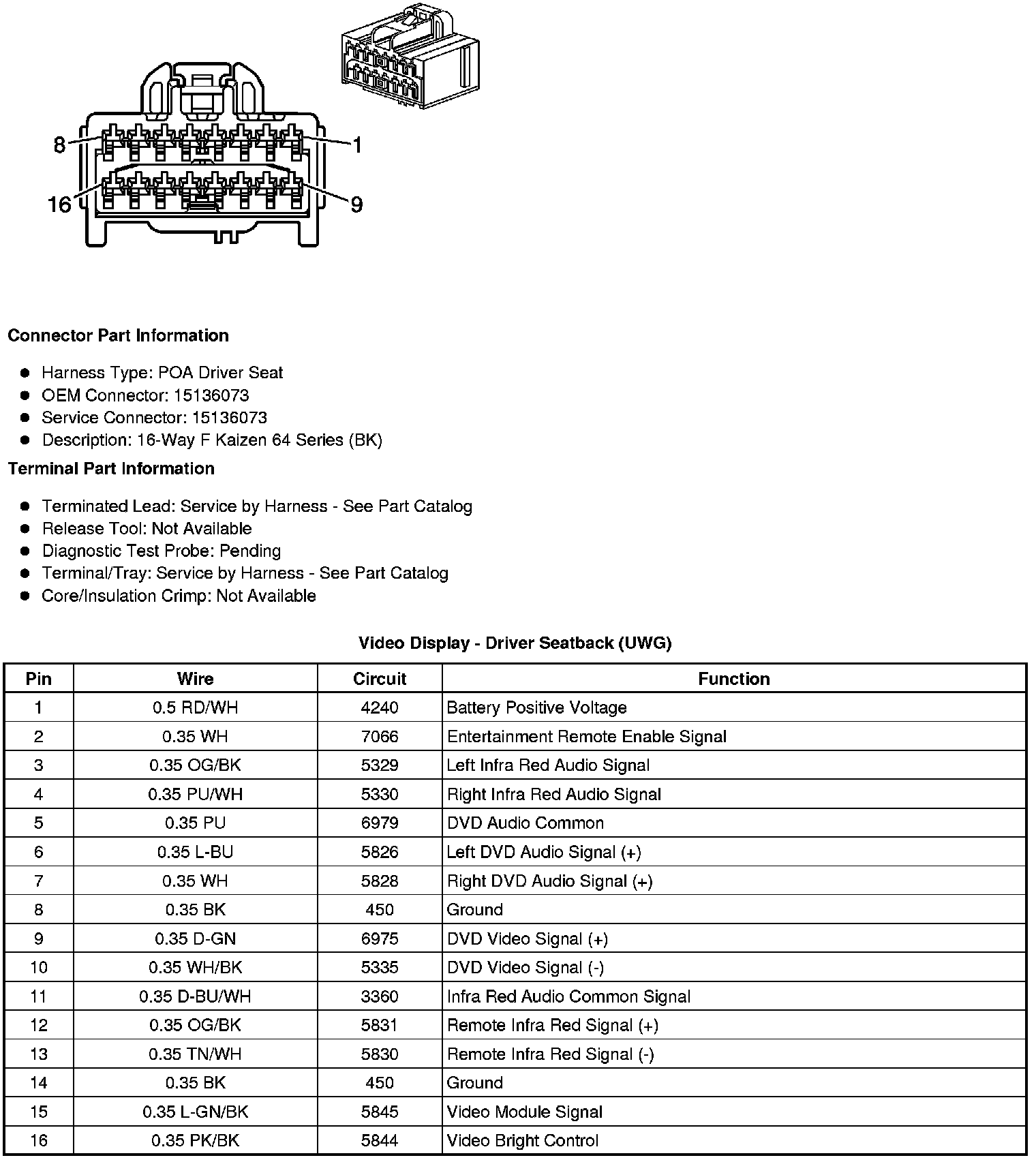

Video Display - Driver Seatback (UWG)

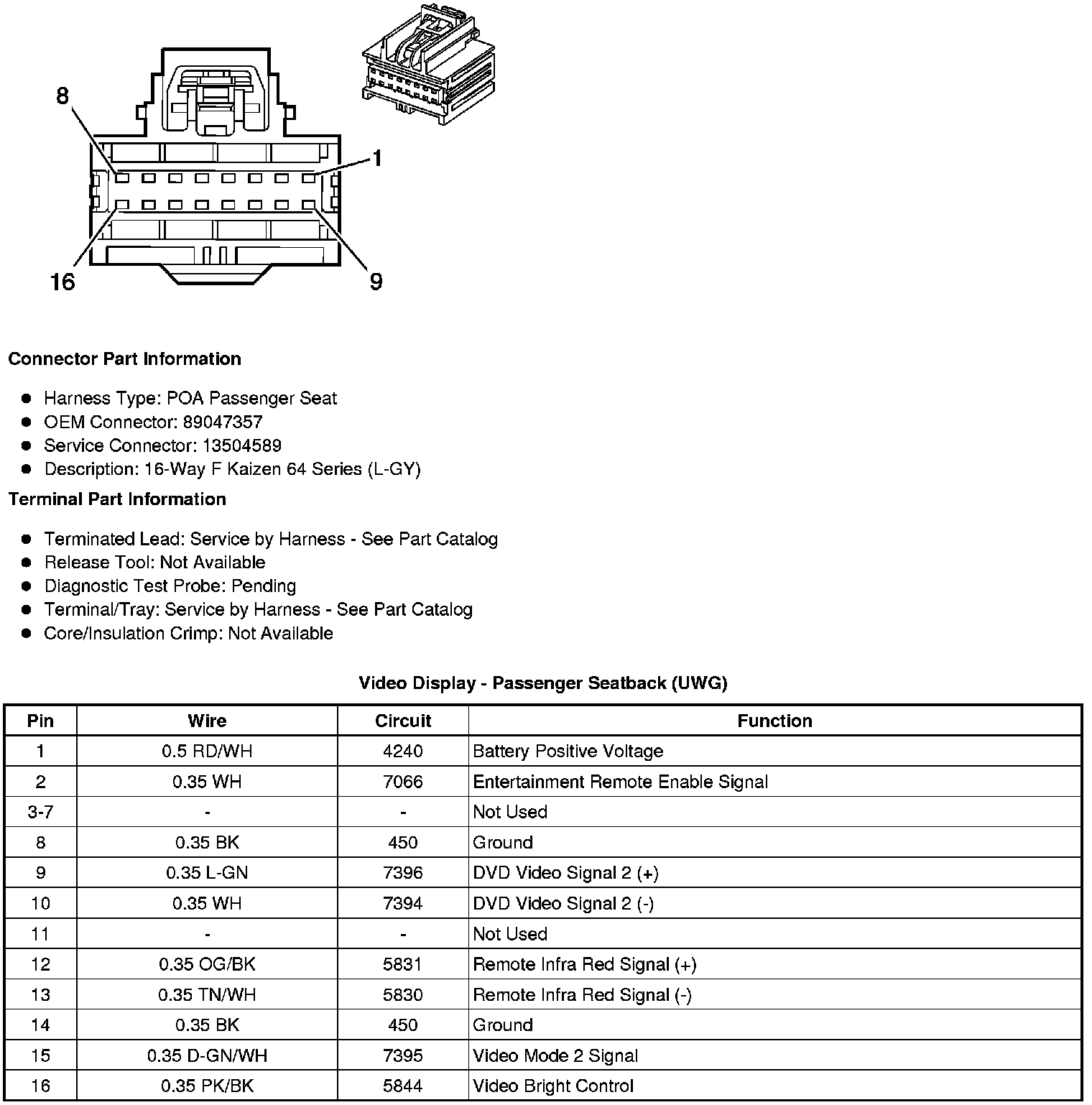

Video Display - Passenger Seatback (UWG)
