Rear Door Handle Switch




Component Connector End Views

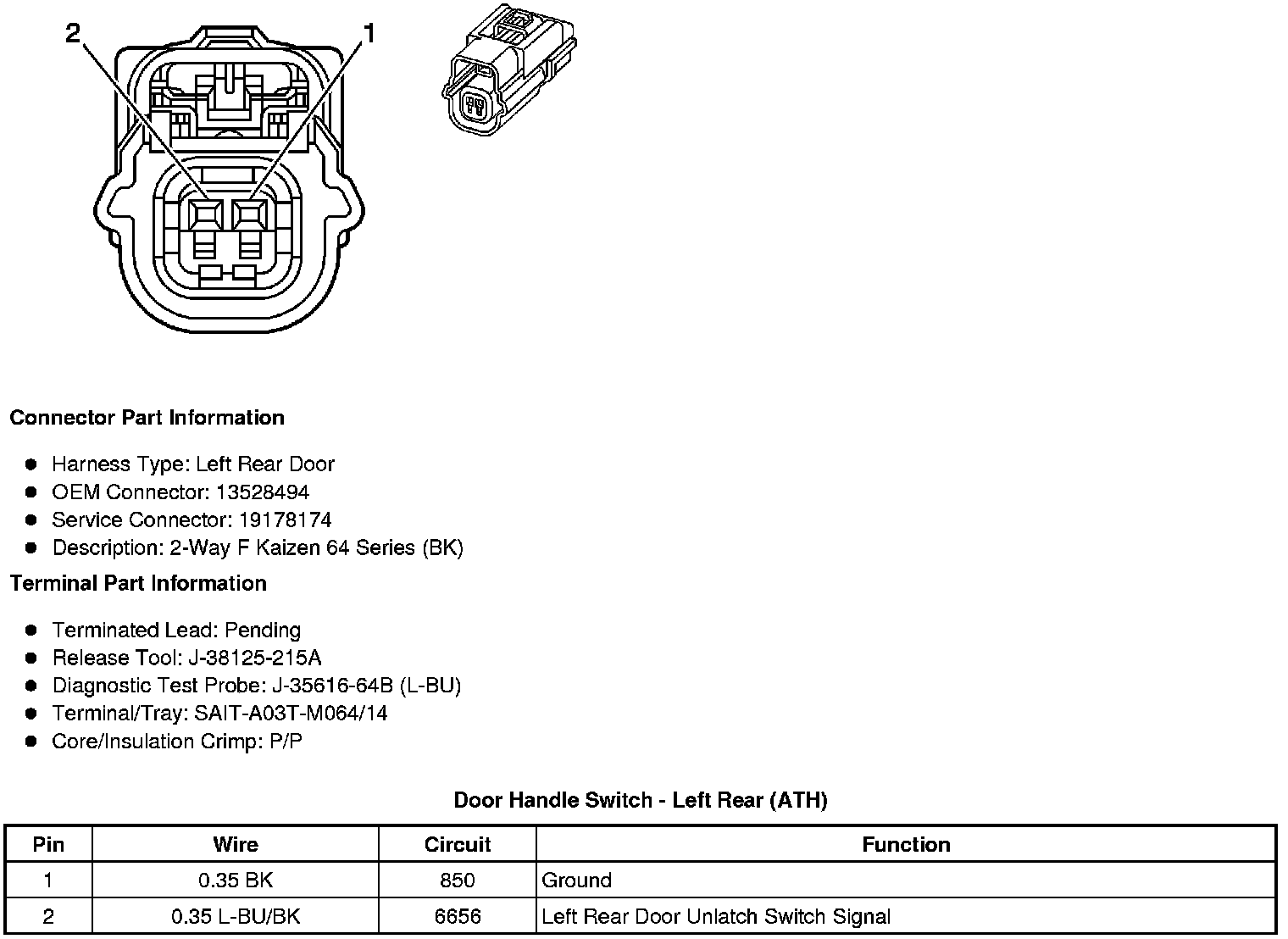

B27LR Door Handle Switch - Left Rear Exterior (ATH)

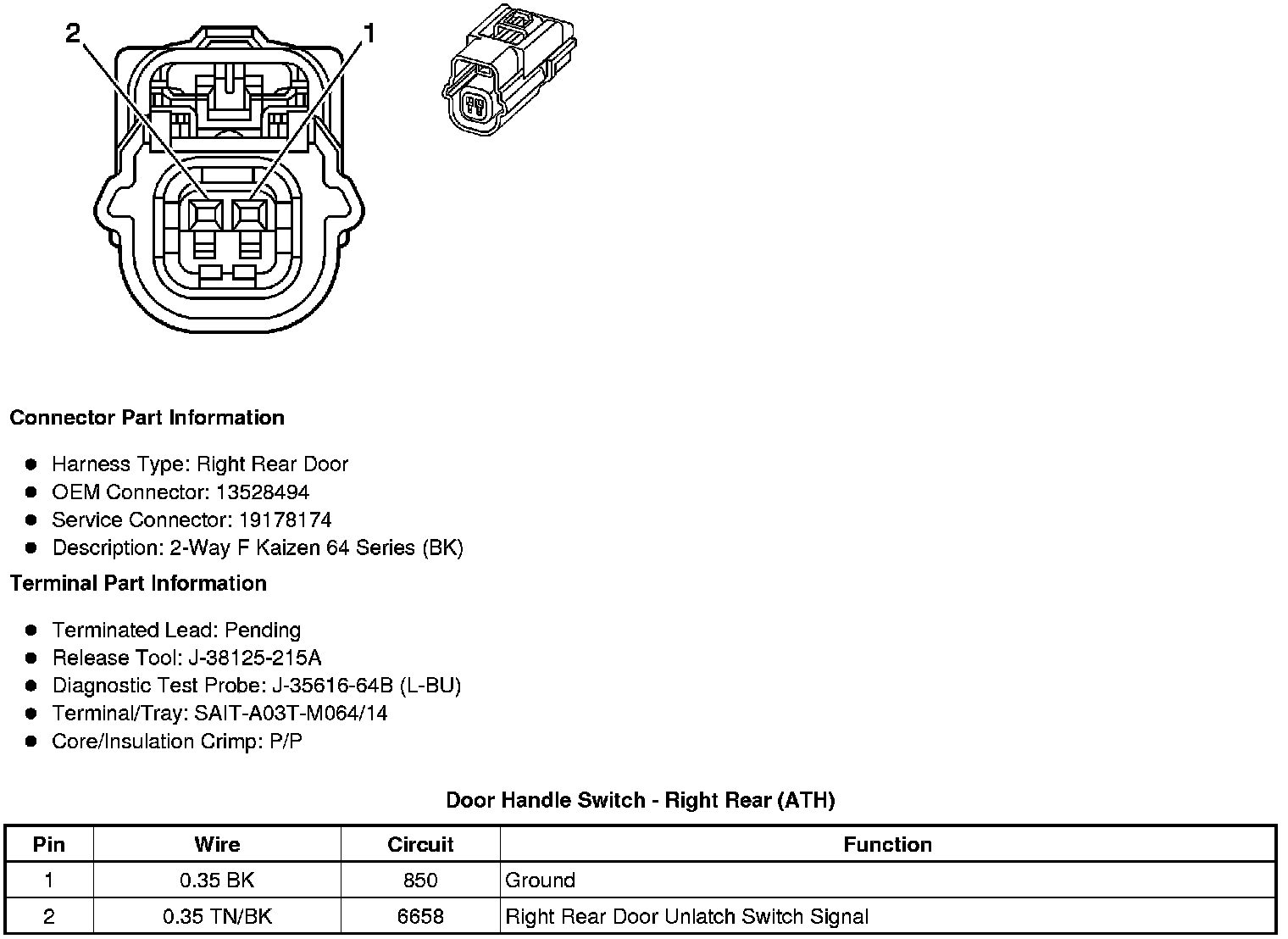

B27RR Door Handle Switch - Right Rear Exterior (ATH)
