Driver/Vehicle Information Display
Driver/Vehicle Information Display
Component Connector End Views
Info Display Module X1

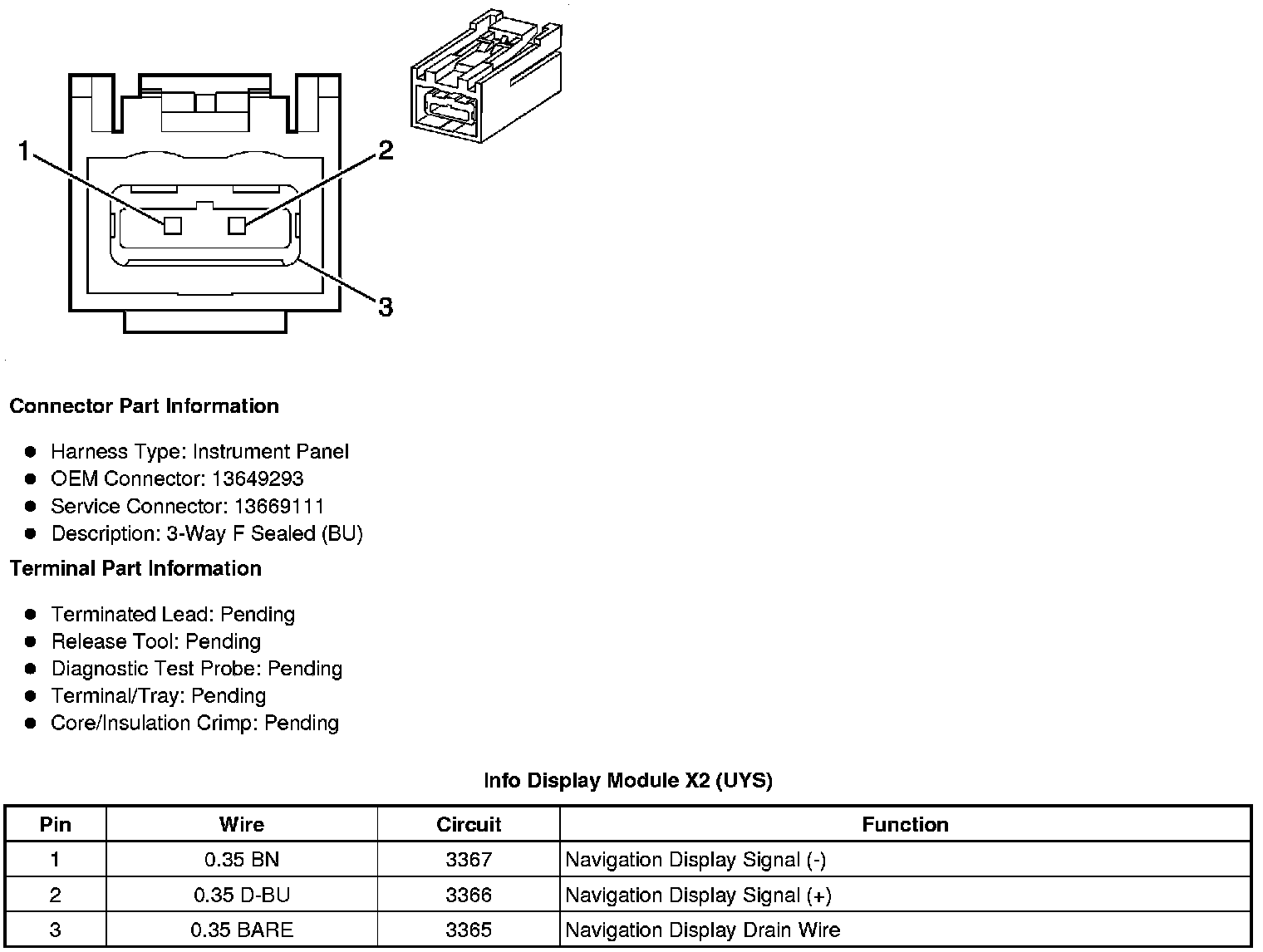

Info Display Module X2 (UYS)
