Rear Door Latch: Diagrams




Component Connector End Views

A23LR Door Latch Assembly - Left Rear

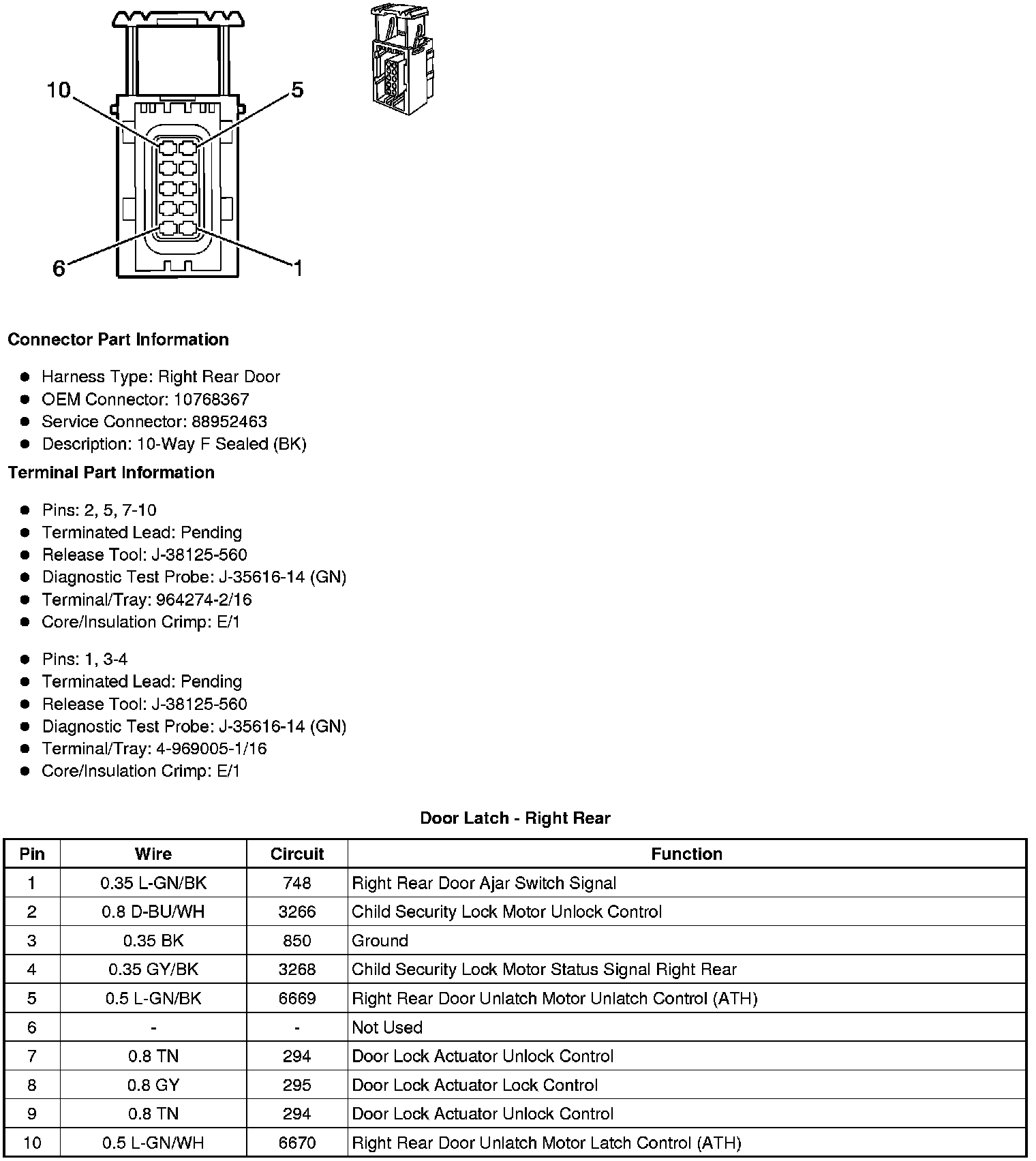

A23RR Door Latch Assembly - Right Rear
