Front Door Latch: Diagrams




Component Connector End Views

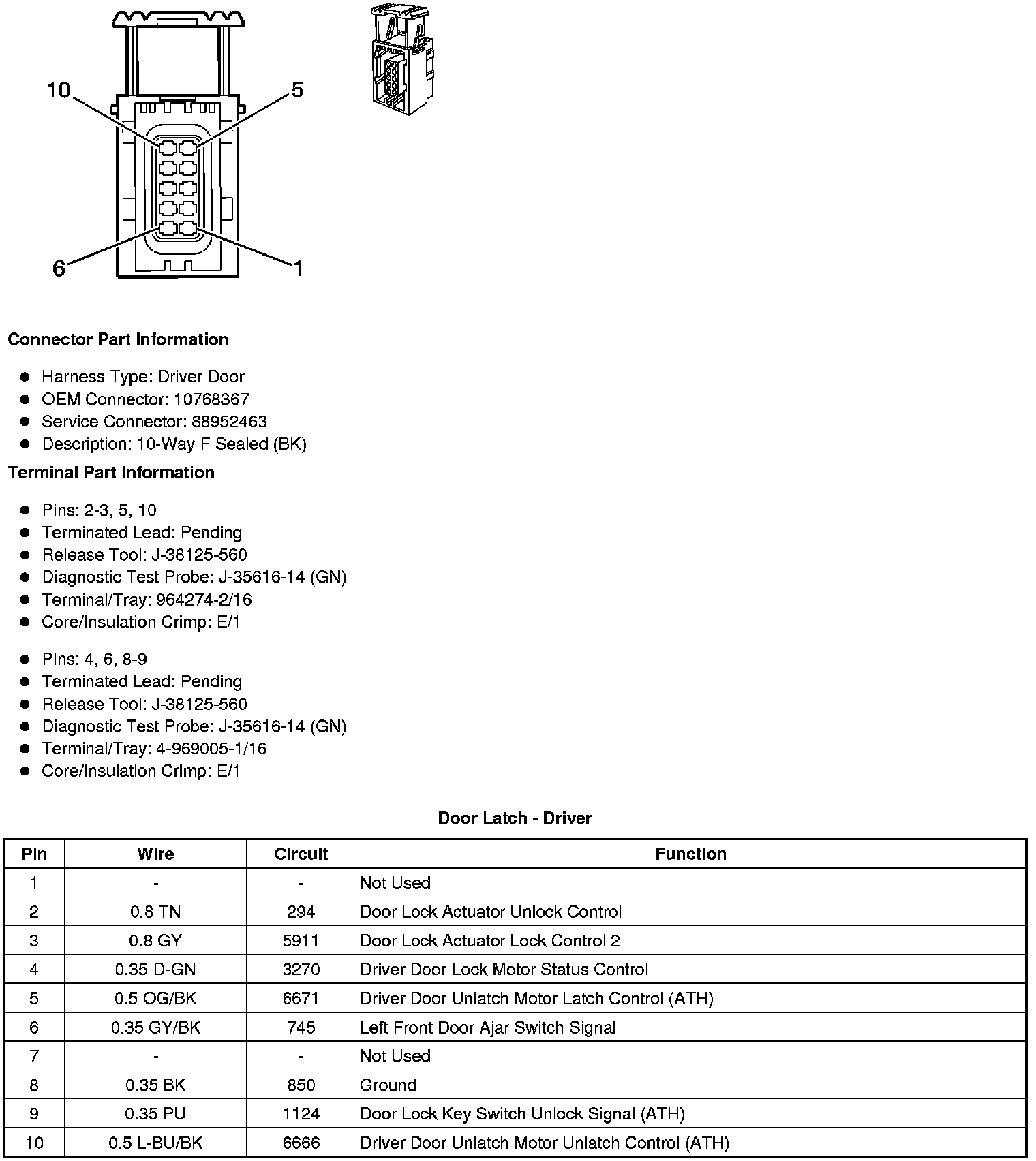

A23D Door Latch Assembly - Driver

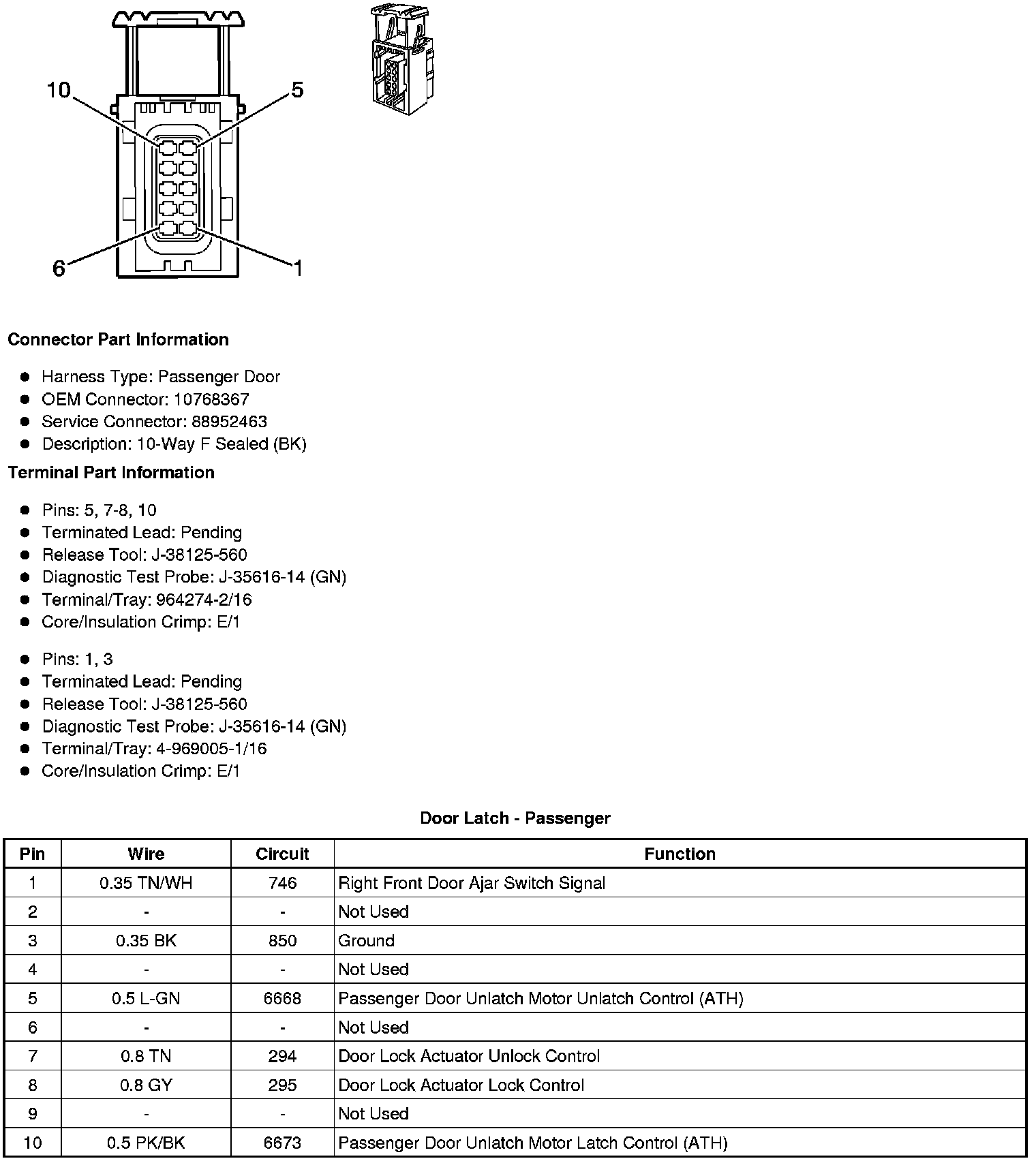

A23P Door Latch Assembly - Passenger
