Front Bumper Impact Bar Replacement

Front Bumper Impact Bar Replacement











2.Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement .

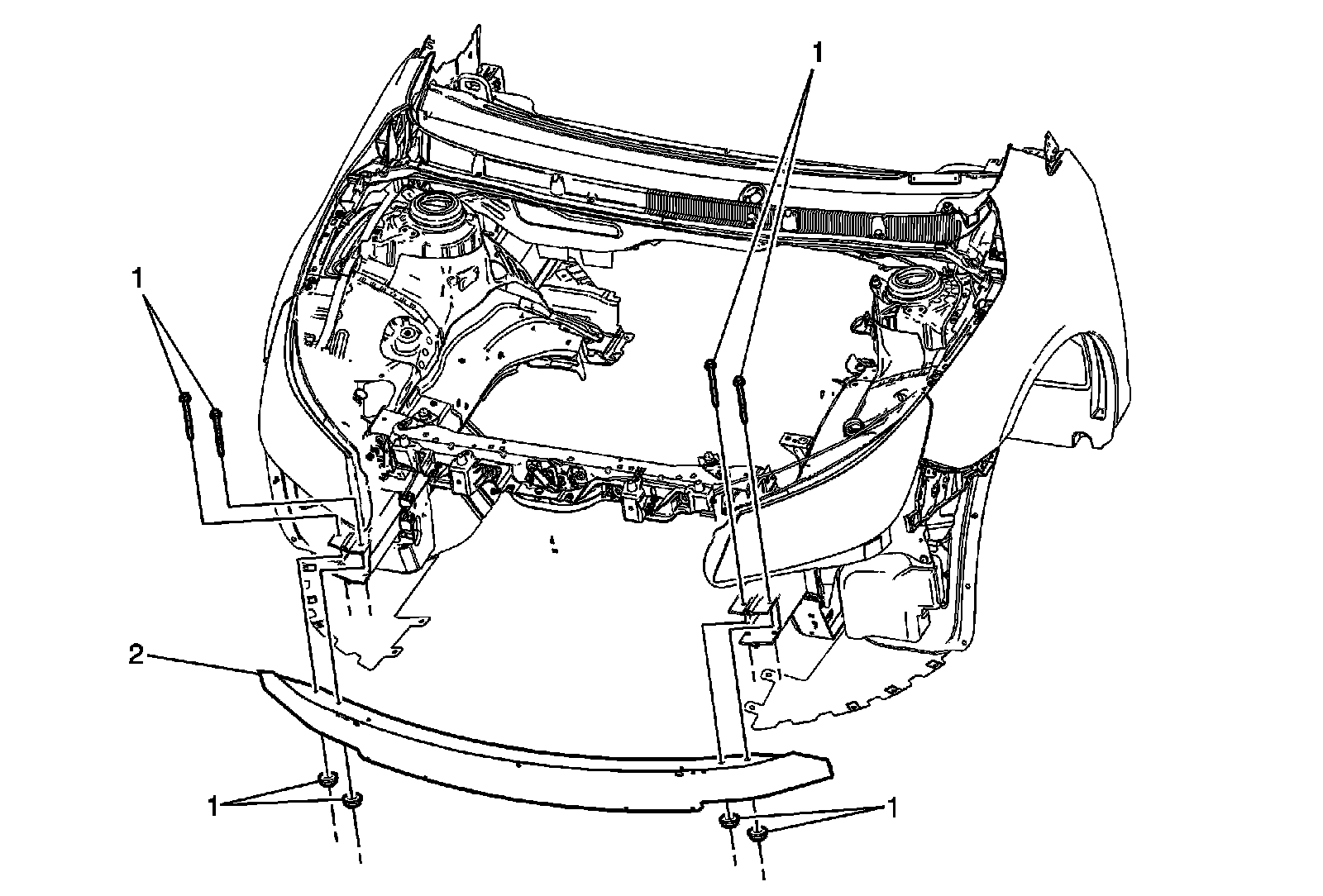

1Front Bumper Impact Bar Bracket Bolt (Qty: 4)
Caution:Refer to Fastener Caution .
Tighten 30 N �m (22 lb ft)

2Front Bumper Impact Bar


Procedure


Disconnect the air cleaner inlet duct, if equipped.
