Connector Views




Component Connector End Views

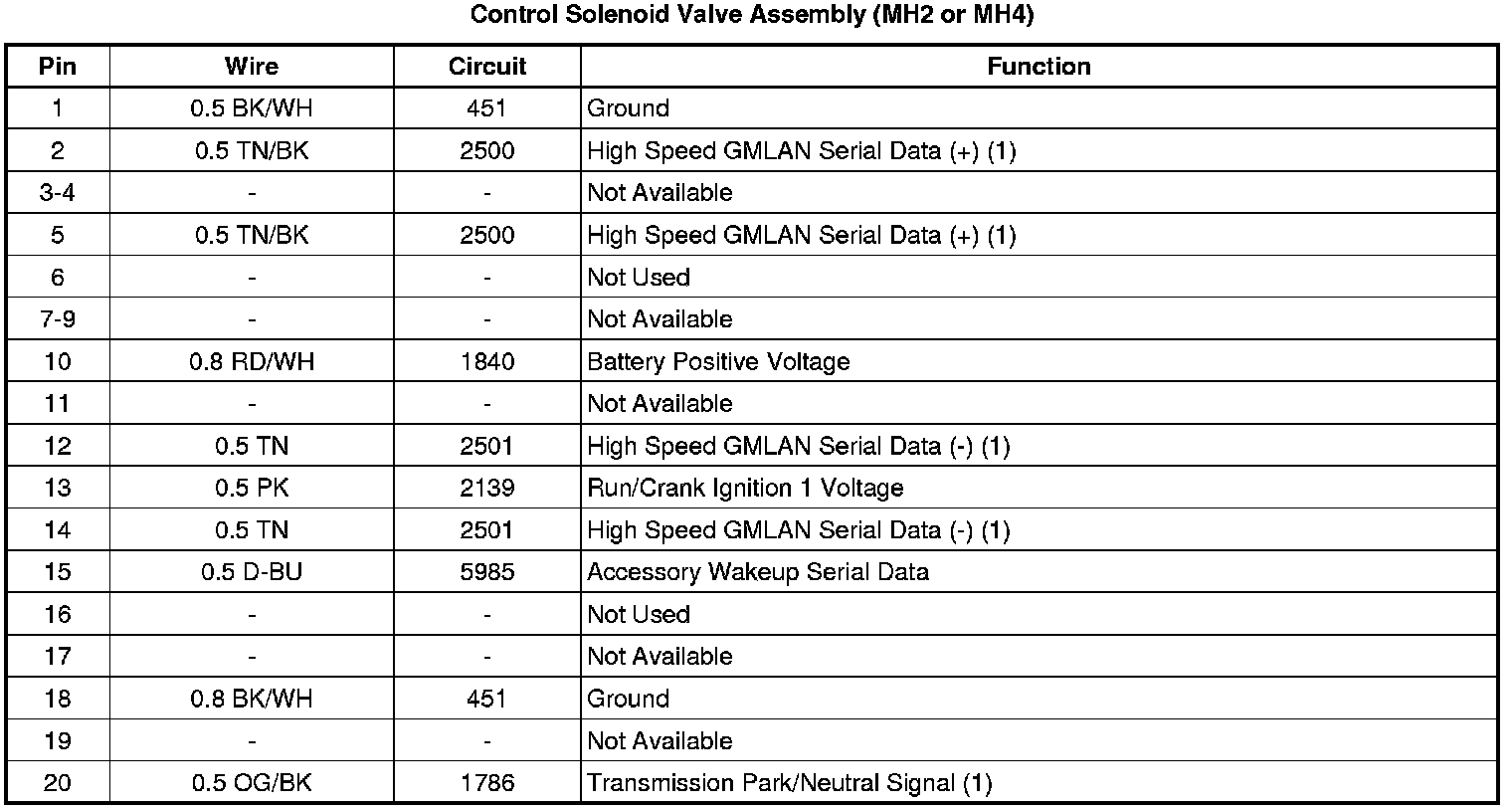

Control Solenoid Valve Assembly (MH2 or MH4)









Control Solenoid Valve Assembly (MH7)
