Home >> Buick >> 2010 >> Allure AWD (CANADA) V6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6T70/6T75 - Automatic Transmission >> 11. Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal

11. Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal

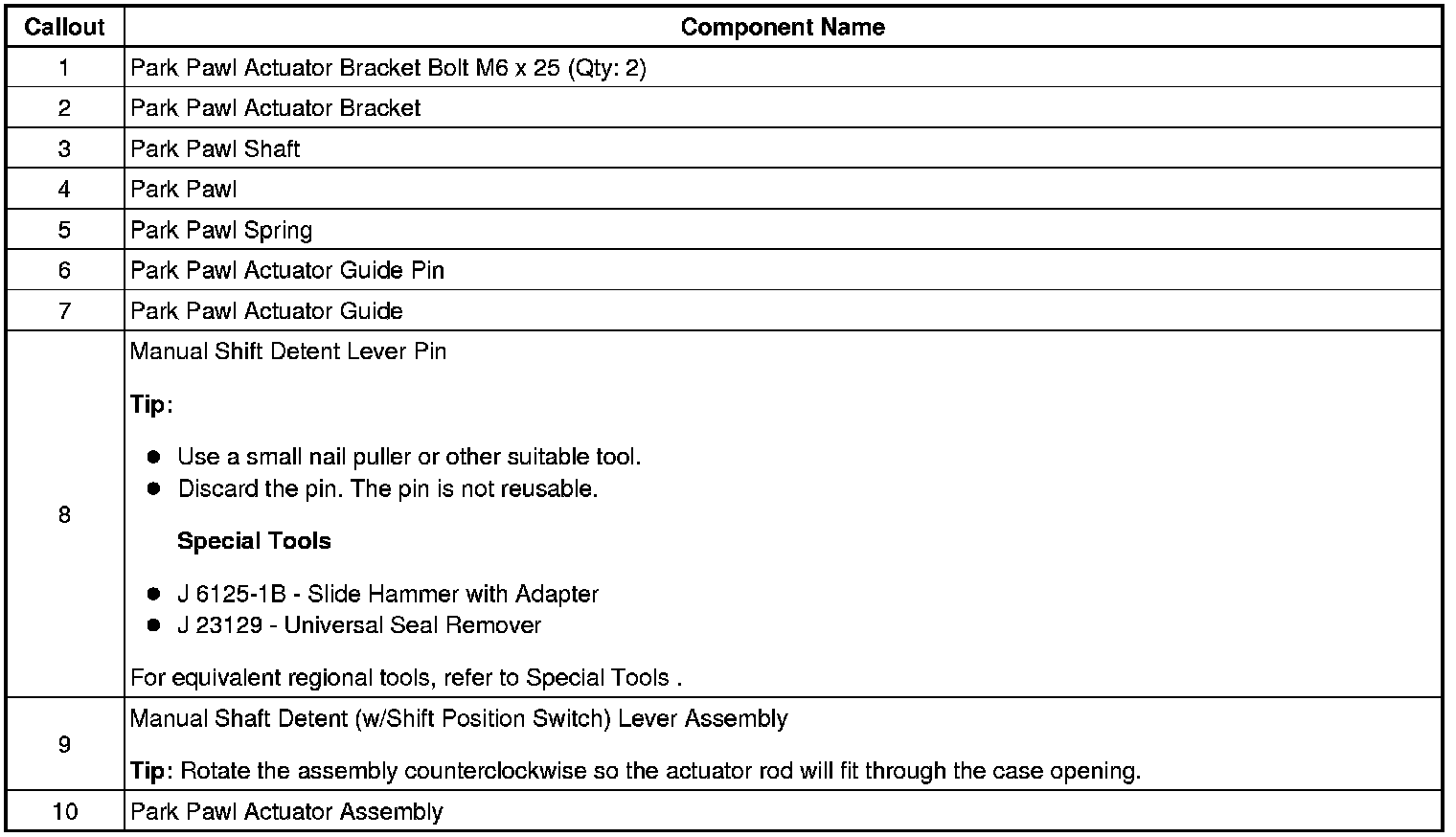

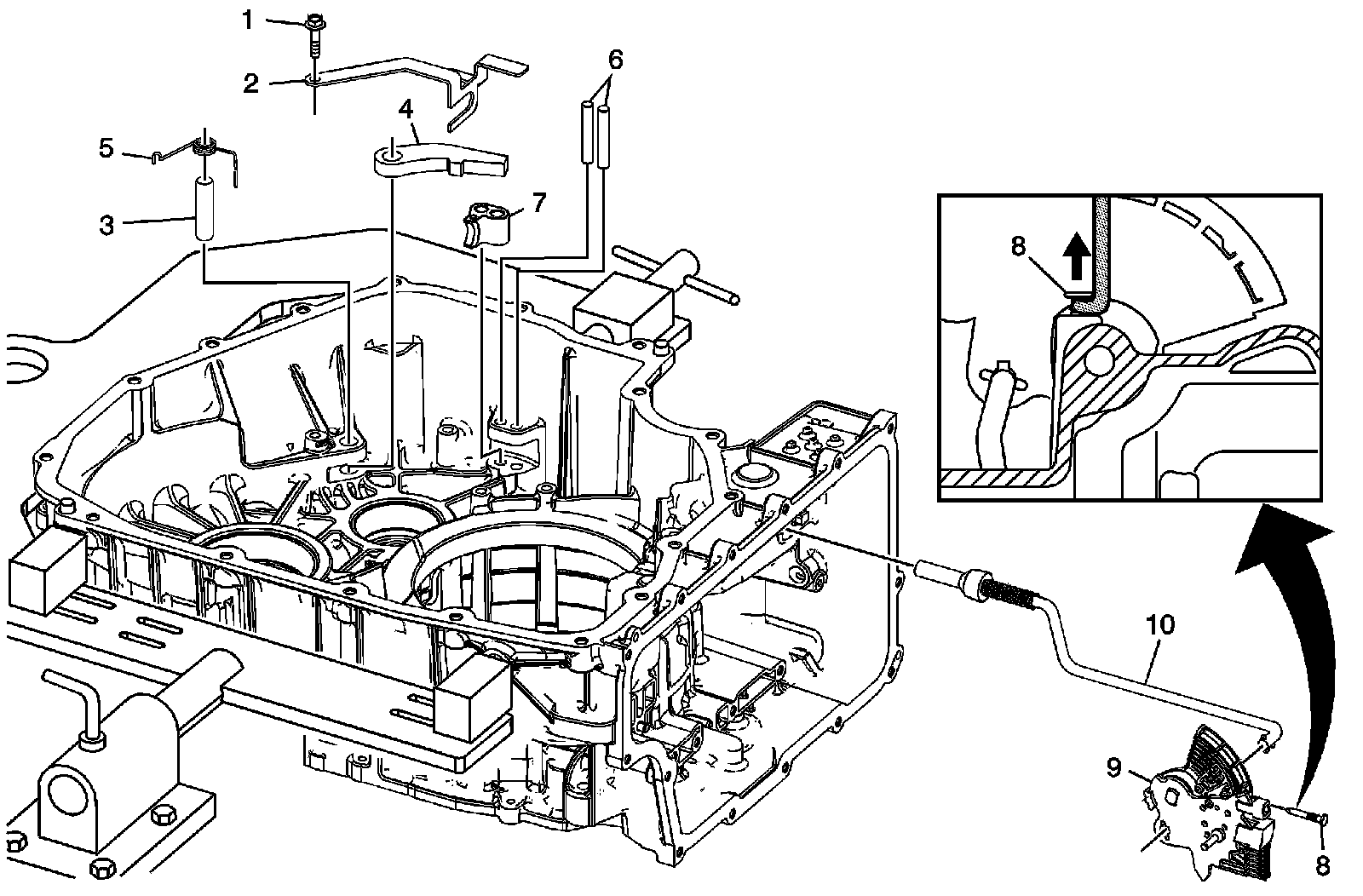

Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal
