Home >> Buick >> 2010 >> Allure AWD (CANADA) V6-3.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X100 - X199 >> X117

X117

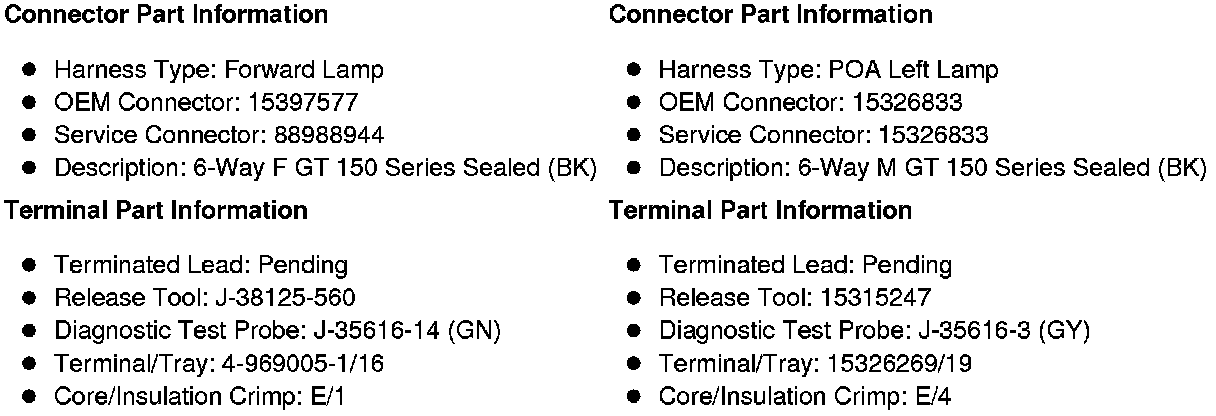

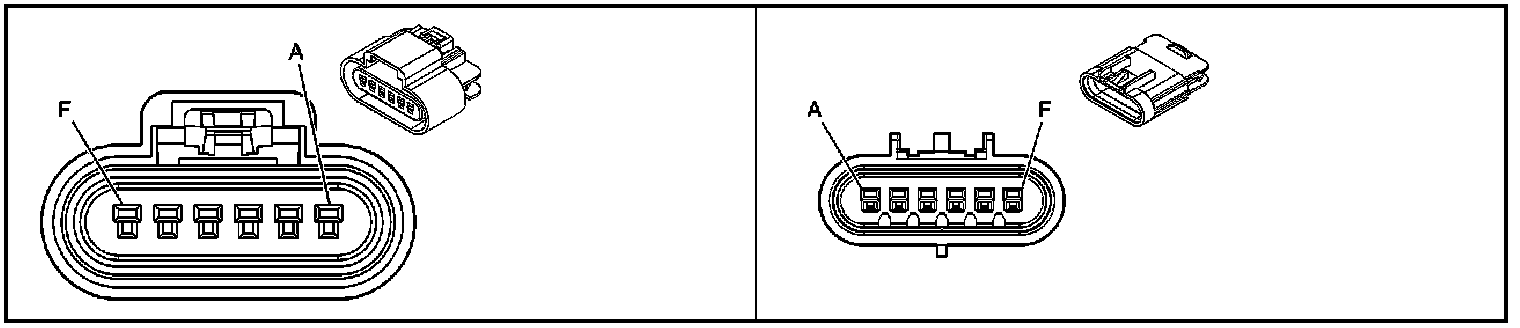

Inline Harness Connector End Views

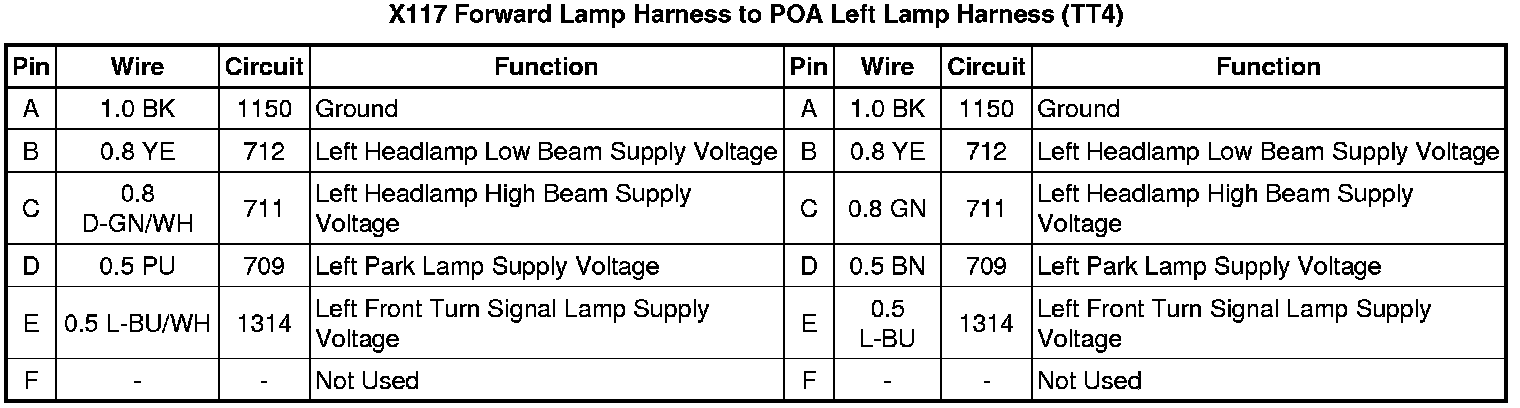

X117 Forward Lamp Harness to POA Left Lamp Harness (TT4)
