Home >> Buick >> 2010 >> Allure AWD (CANADA) V6-3.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Service and Repair >> Removal and Replacement >> Accessory Wiring Junction Block Replacement

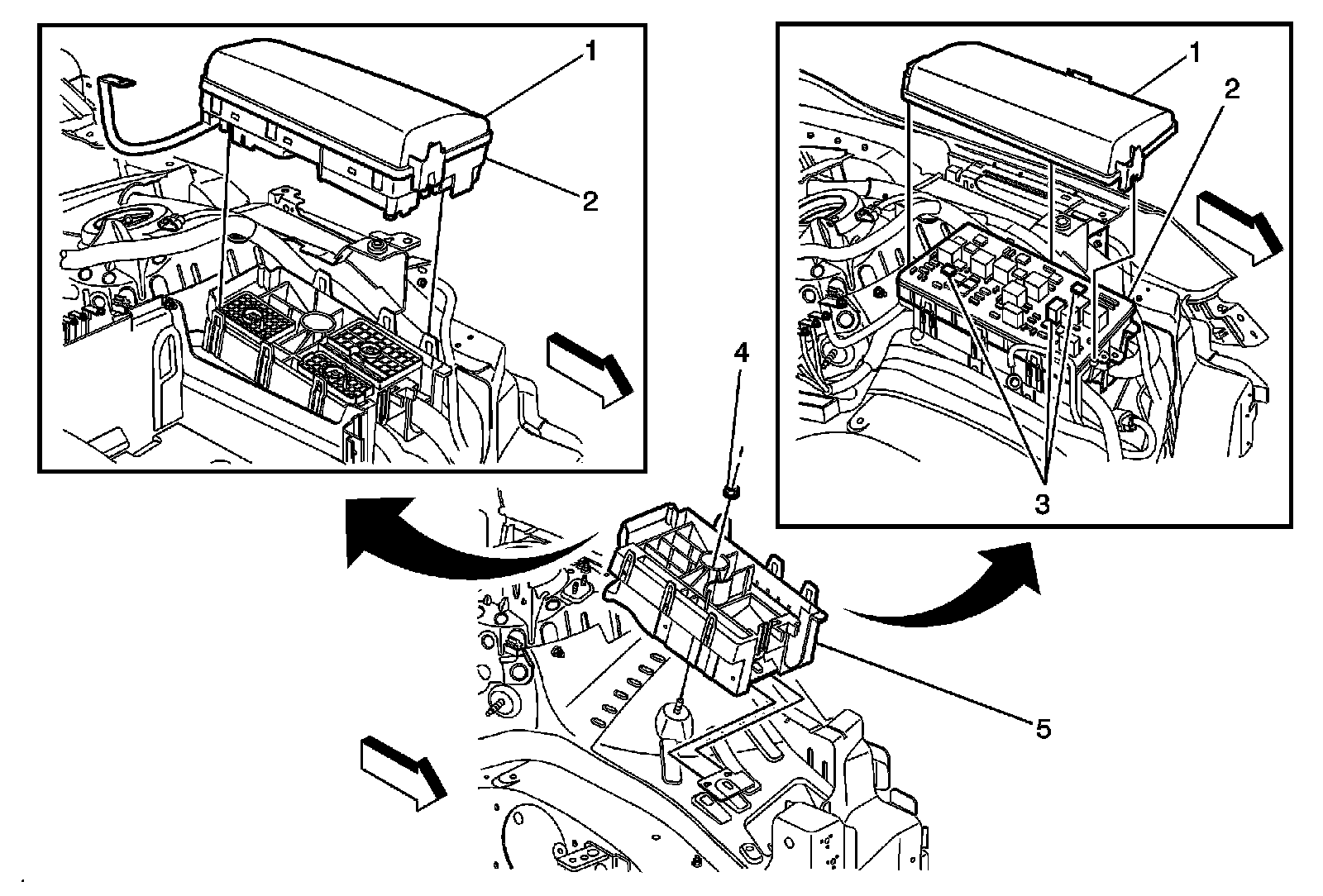

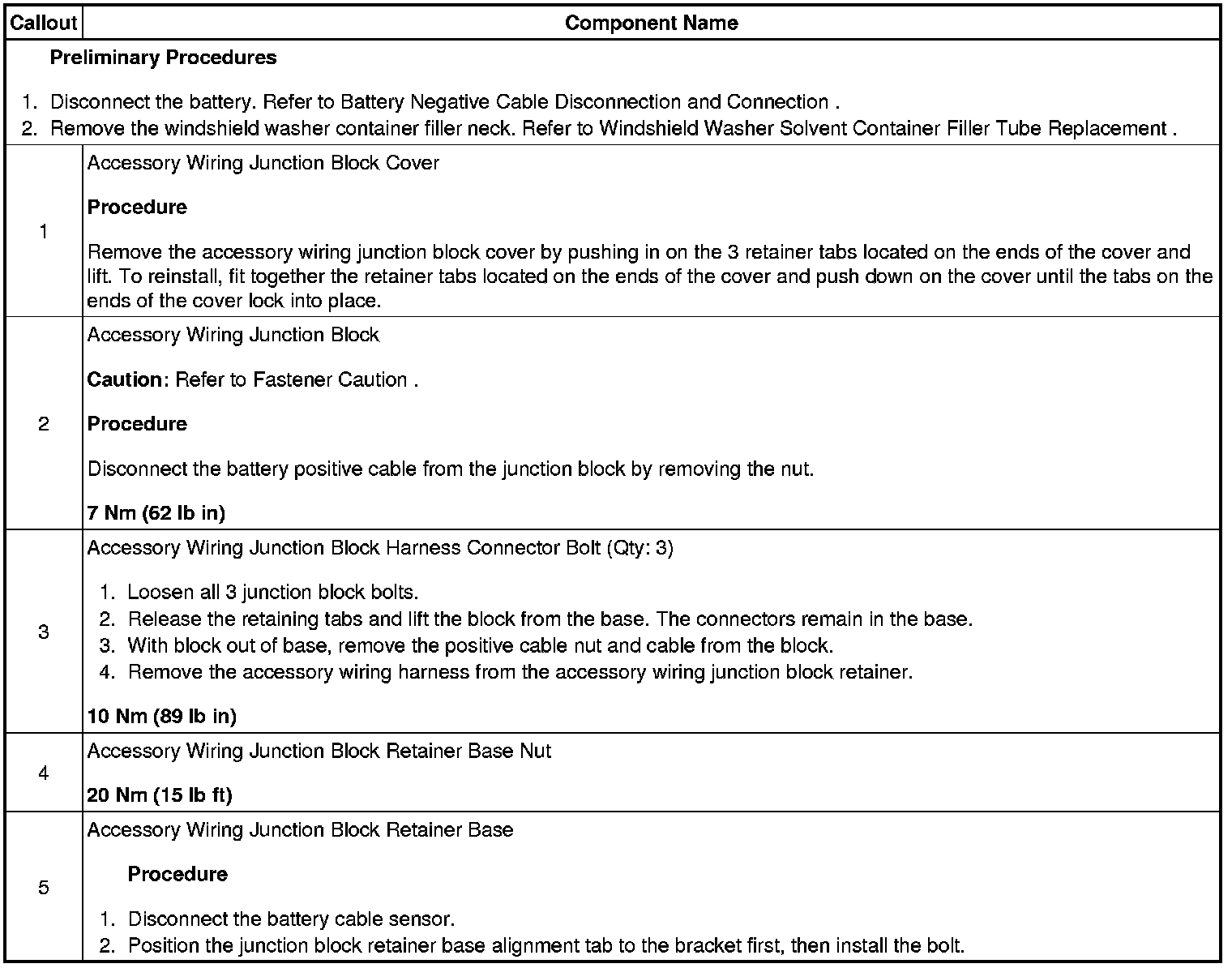

Accessory Wiring Junction Block Replacement




Accessory Wiring Junction Block Replacement
