Power Window Switch: Diagrams

Component Connector End Views

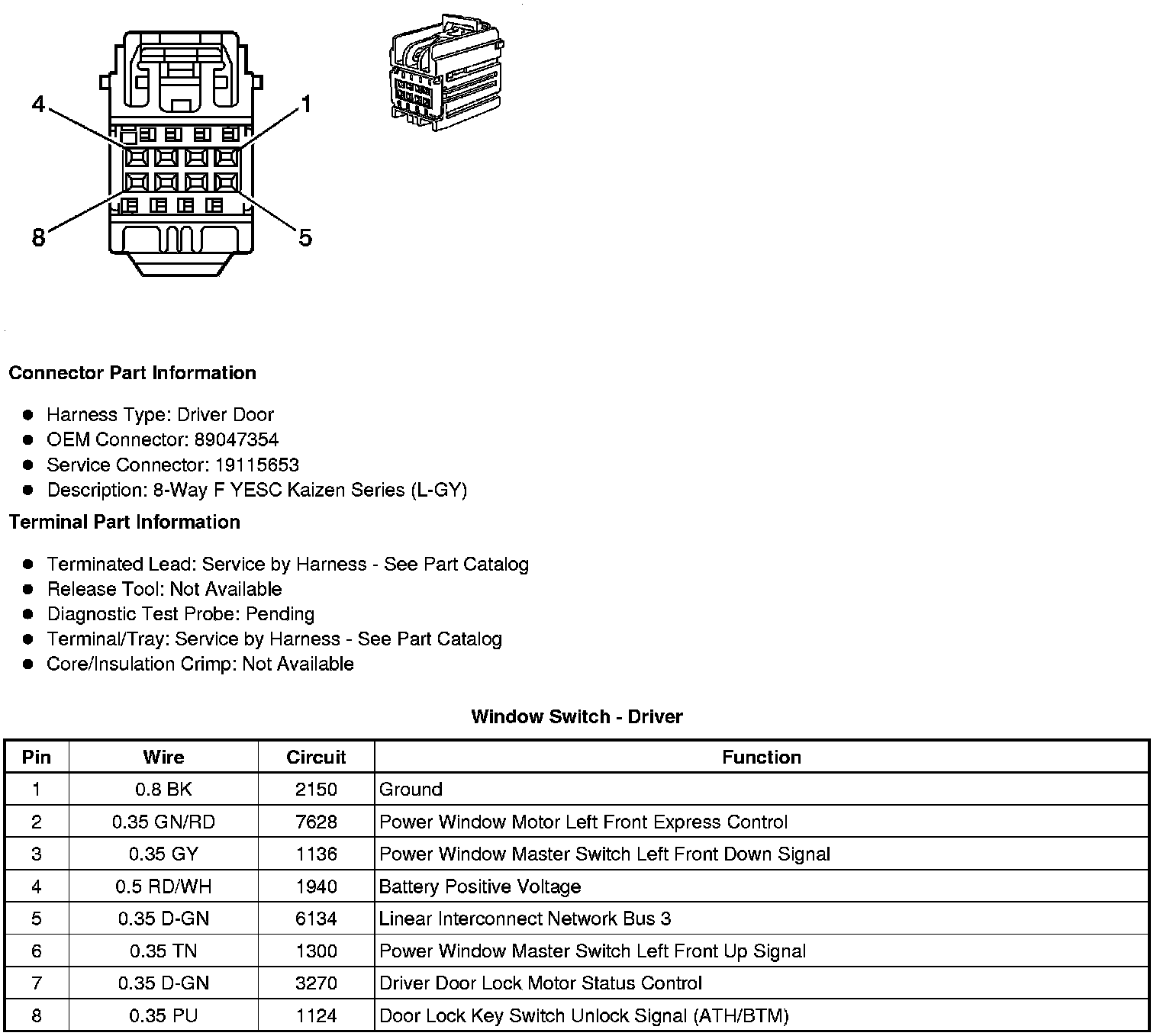

Window Switch - Driver

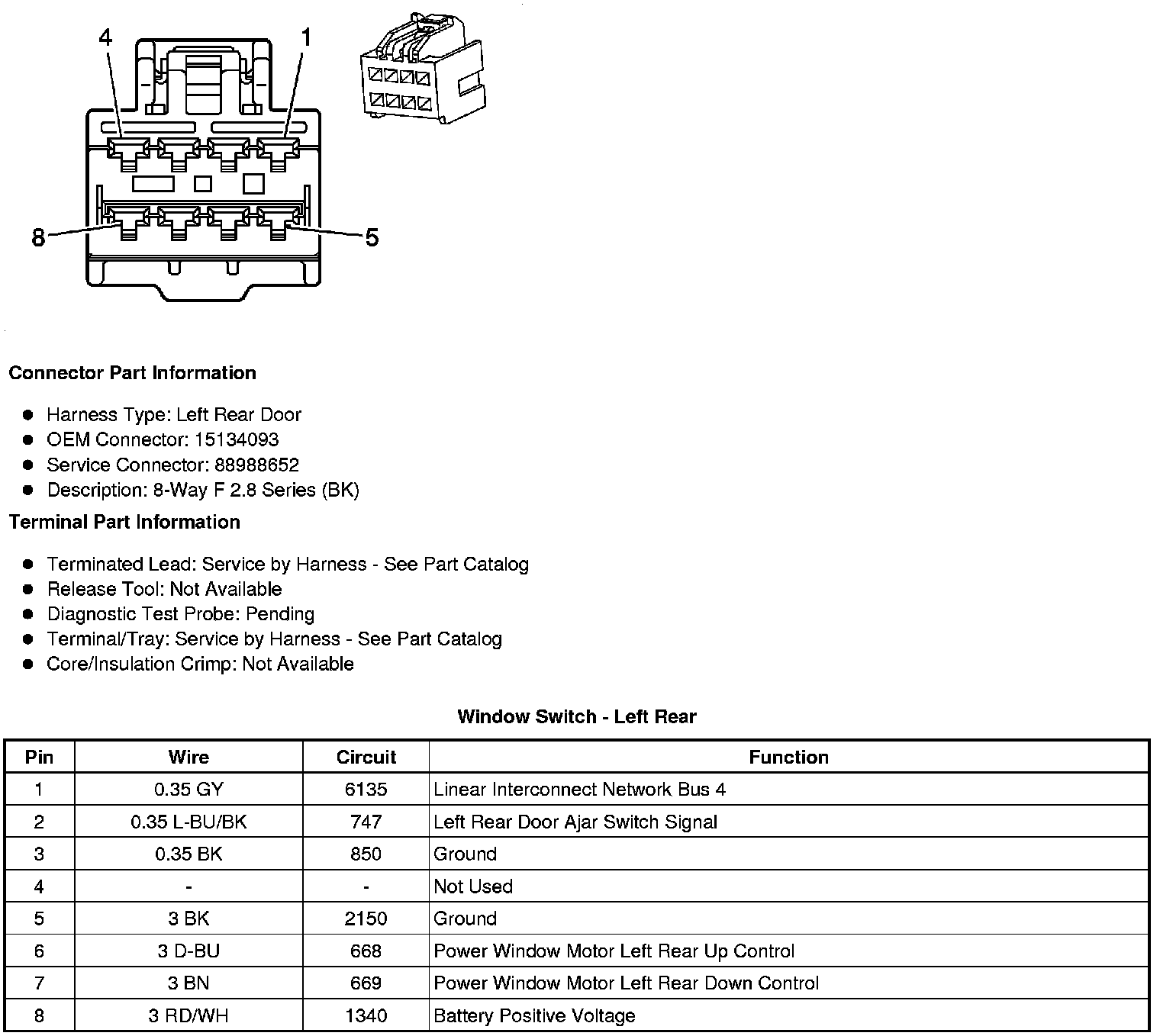

Window Switch - Left Rear

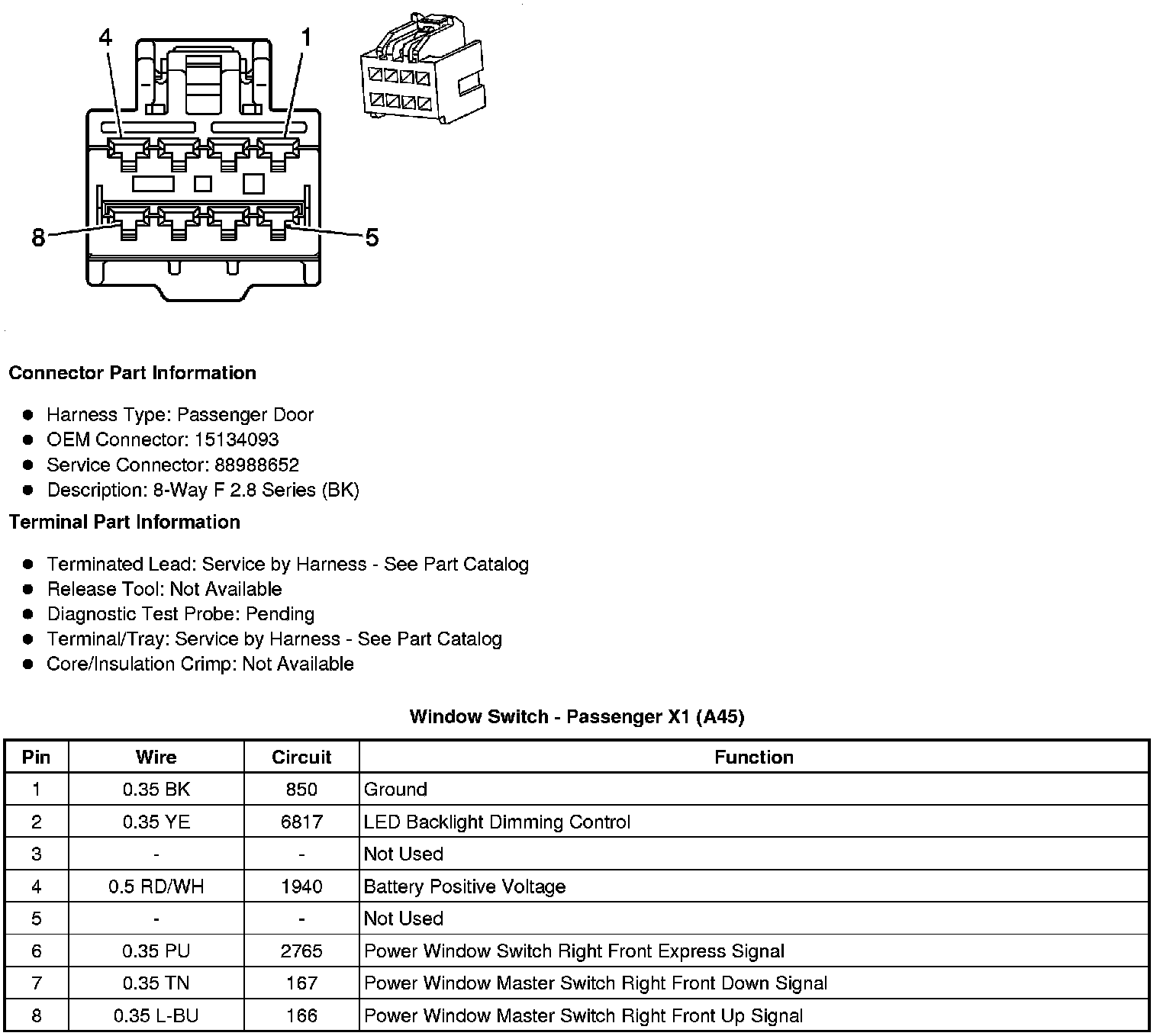

Window Switch - Passenger X1 (A45)

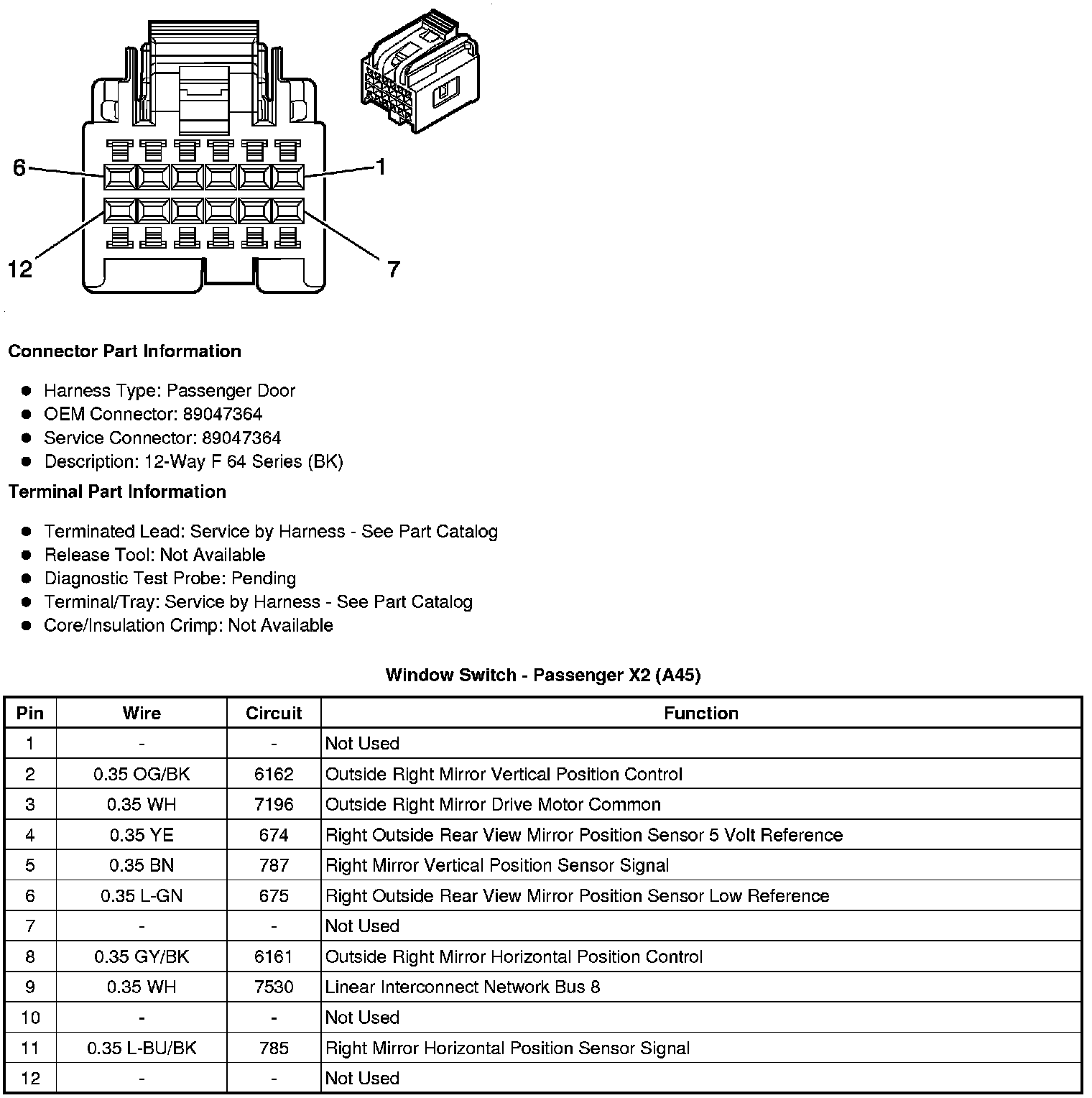

Window Switch - Passenger X2 (A45)

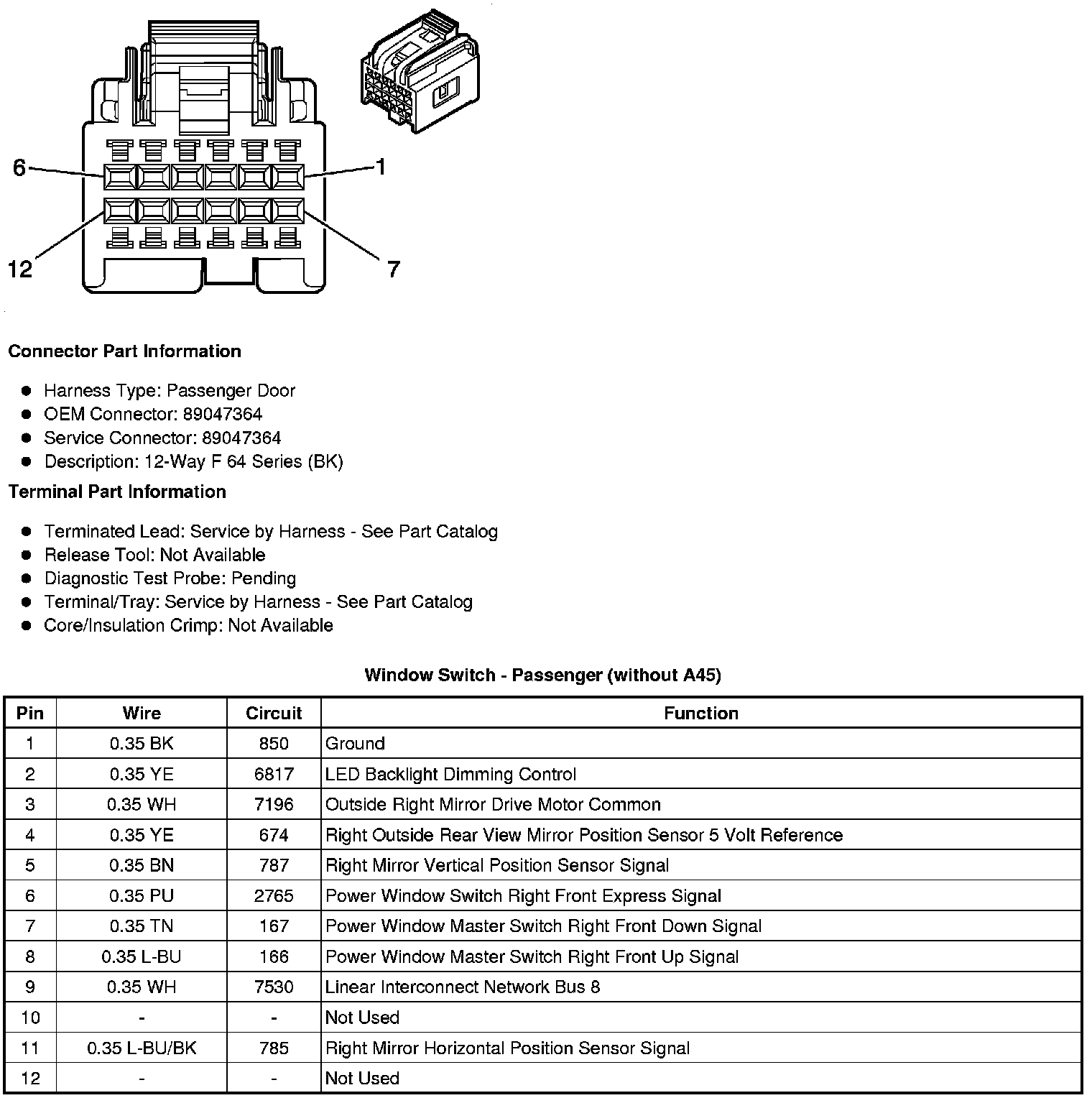

Window Switch - Passenger (without A45)

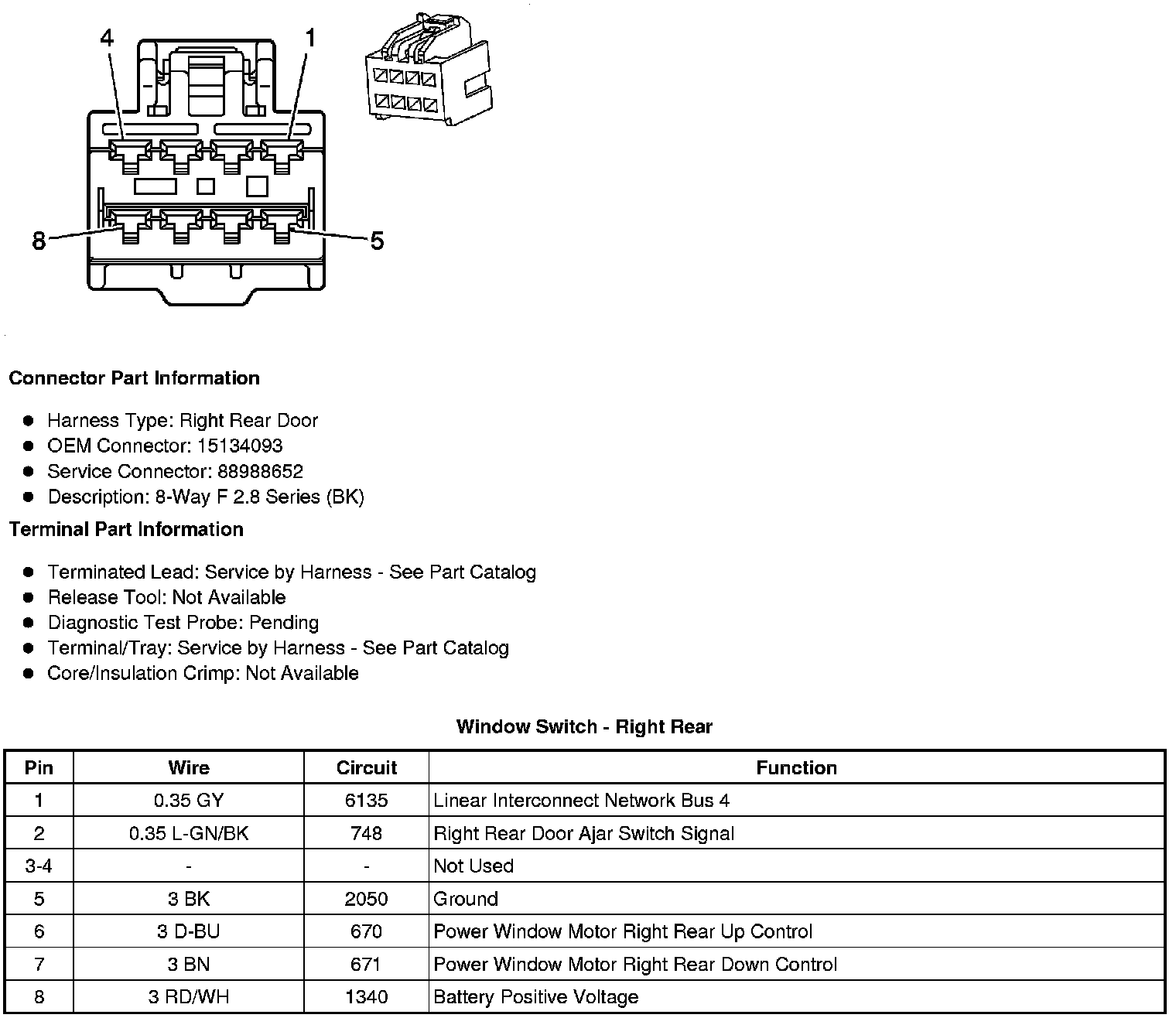

Window Switch - Right Rear
