Manifold Pressure/Vacuum Sensor: Diagrams

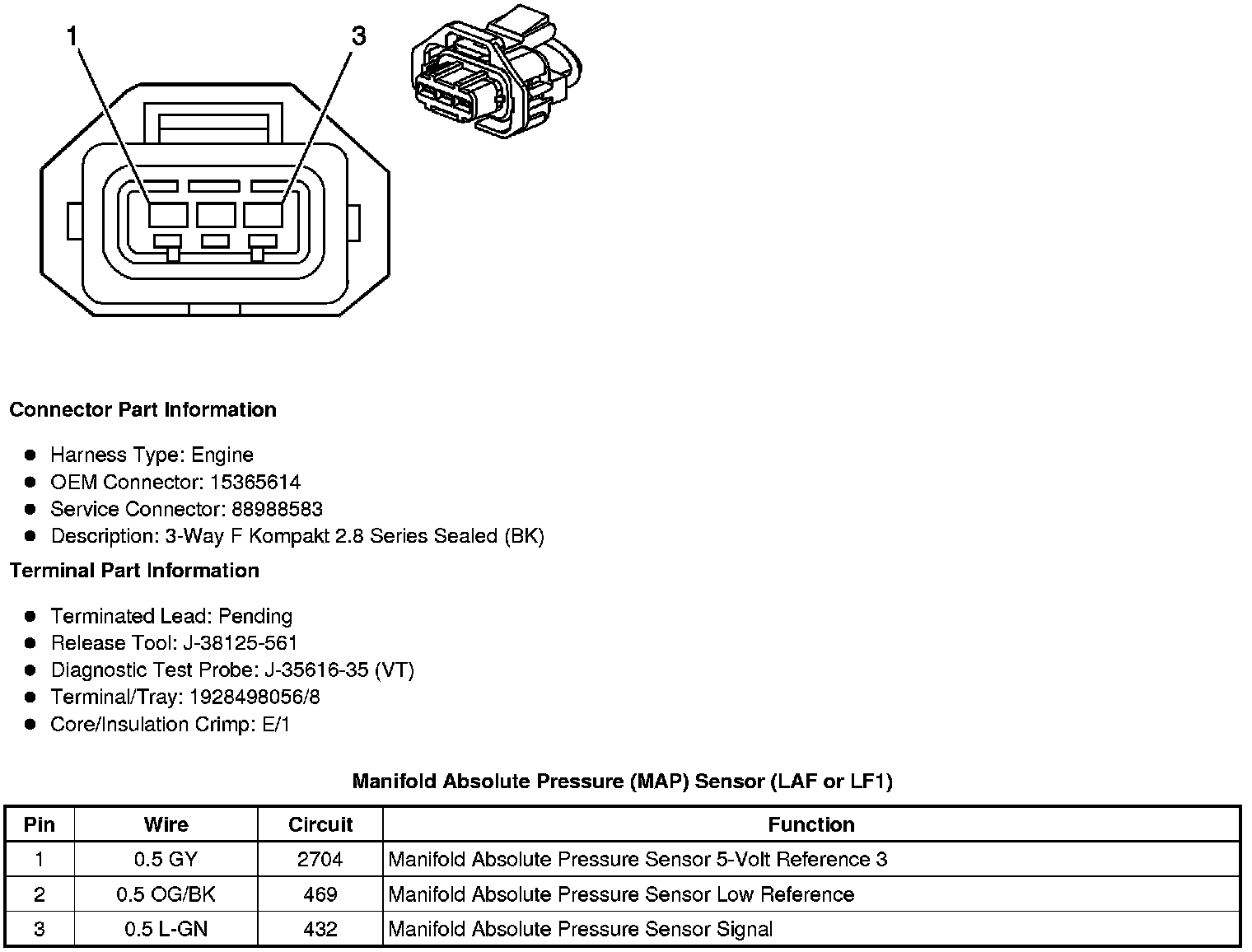

Component Connector End Views

B74 Manifold Absolute Pressure (MAP) Sensor (LAF or LF1)
