Combination Switch: Diagrams




Component Connector End Views

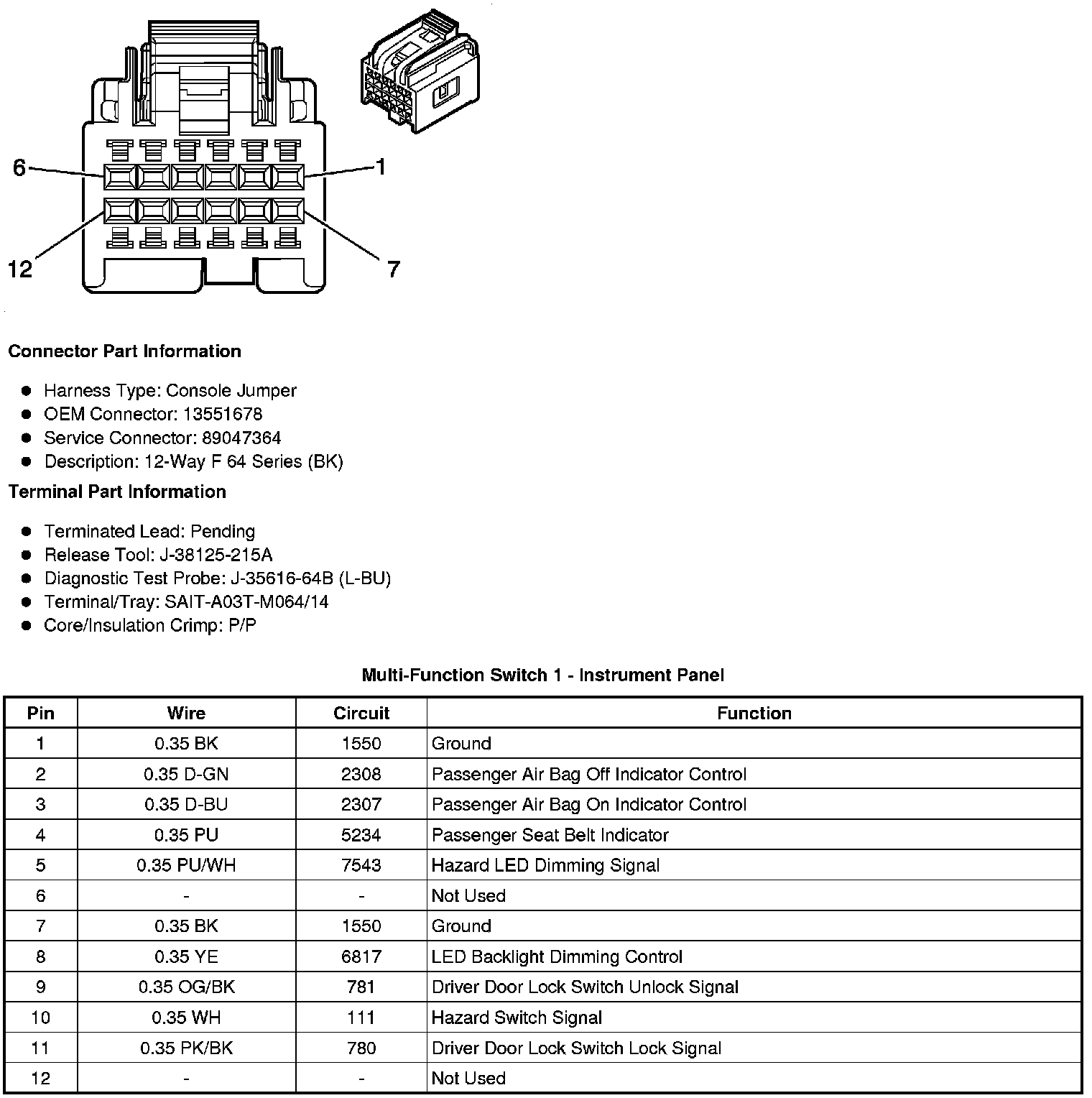

Multi-Function Switch 1 - Instrument Panel

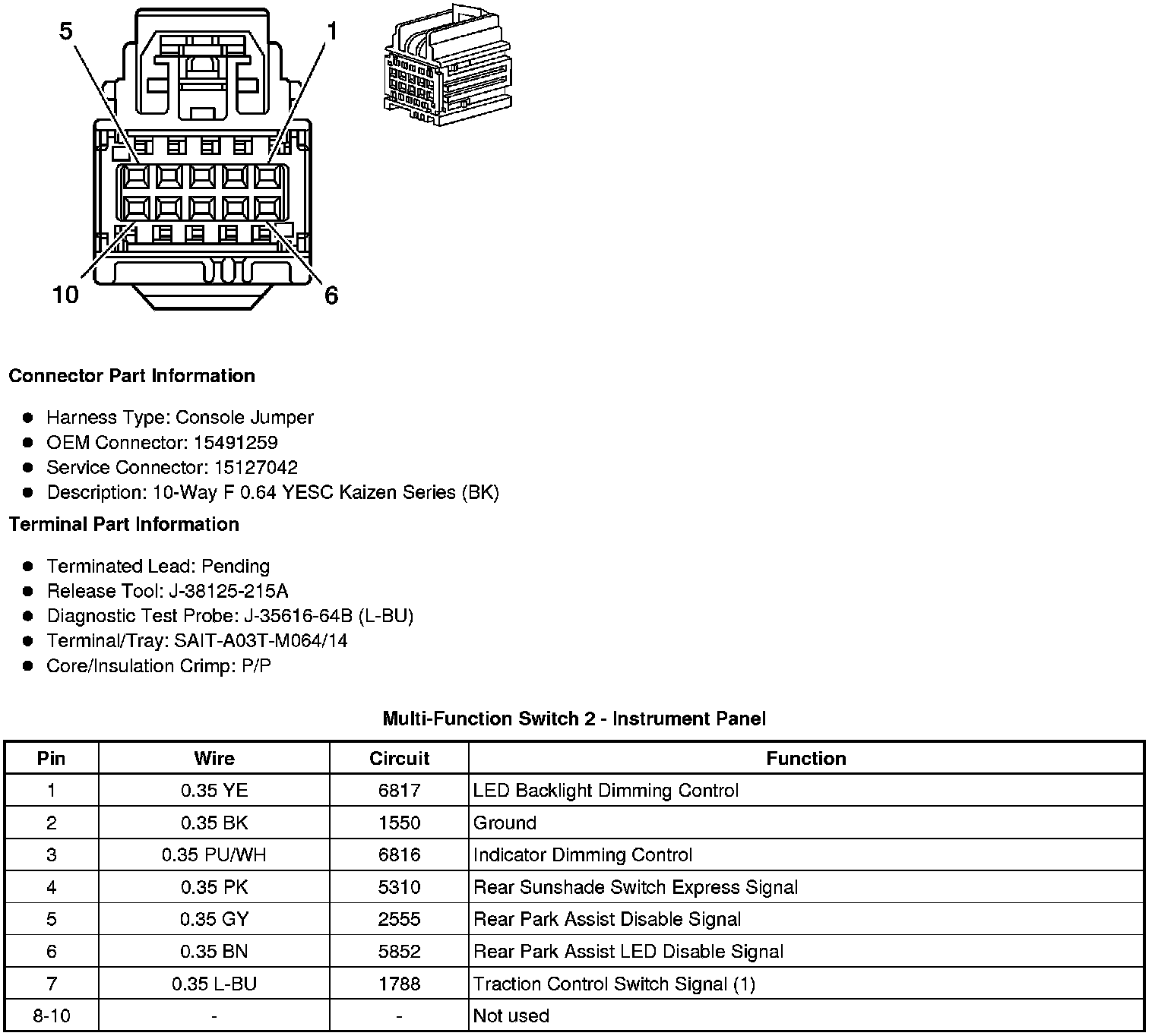

Multi-Function Switch 2 - Instrument Panel
