Steering Wheel Heater Control Module: Diagrams

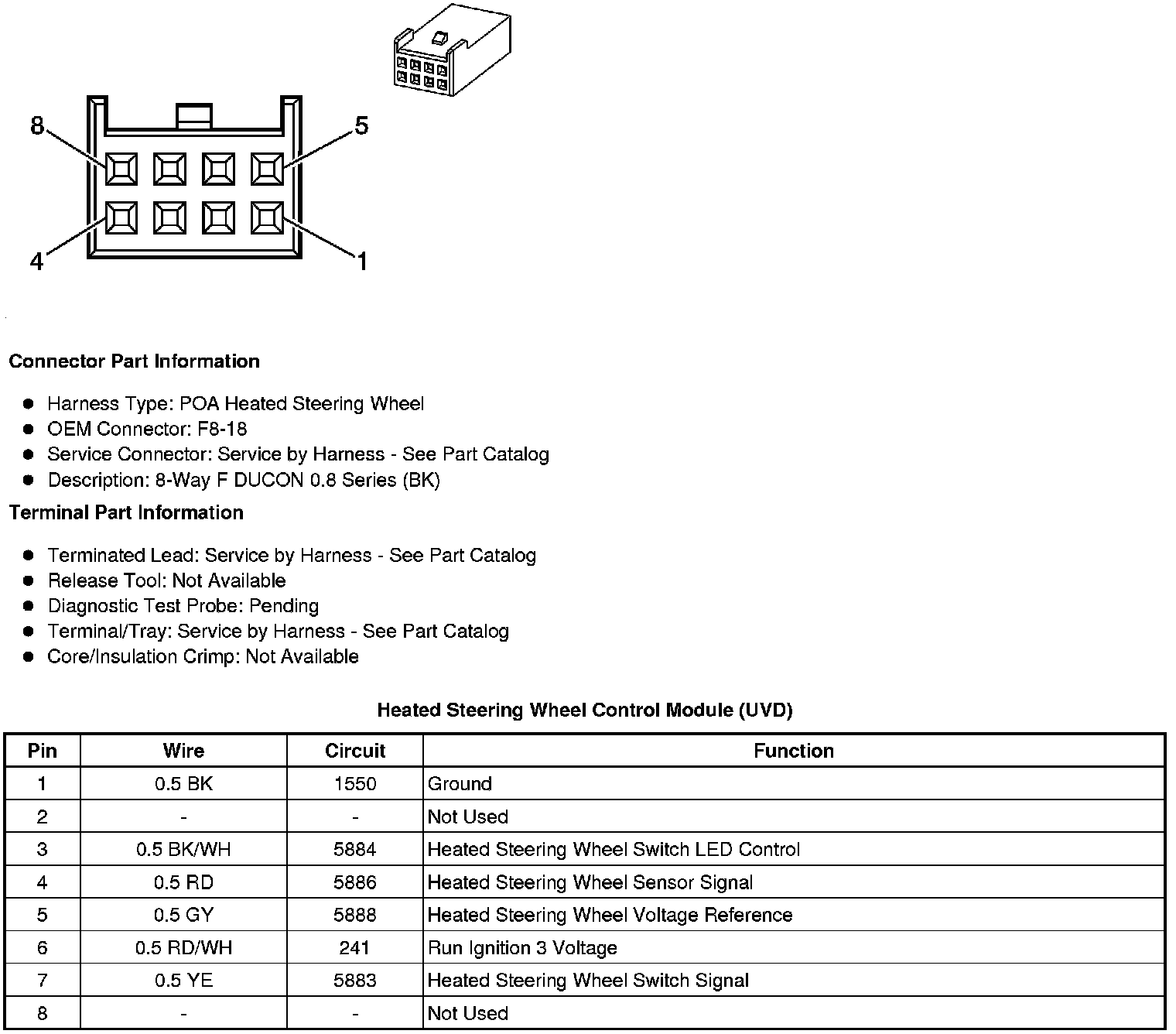

Component Connector End Views

Heated Steering Wheel Control Module (UVD)
