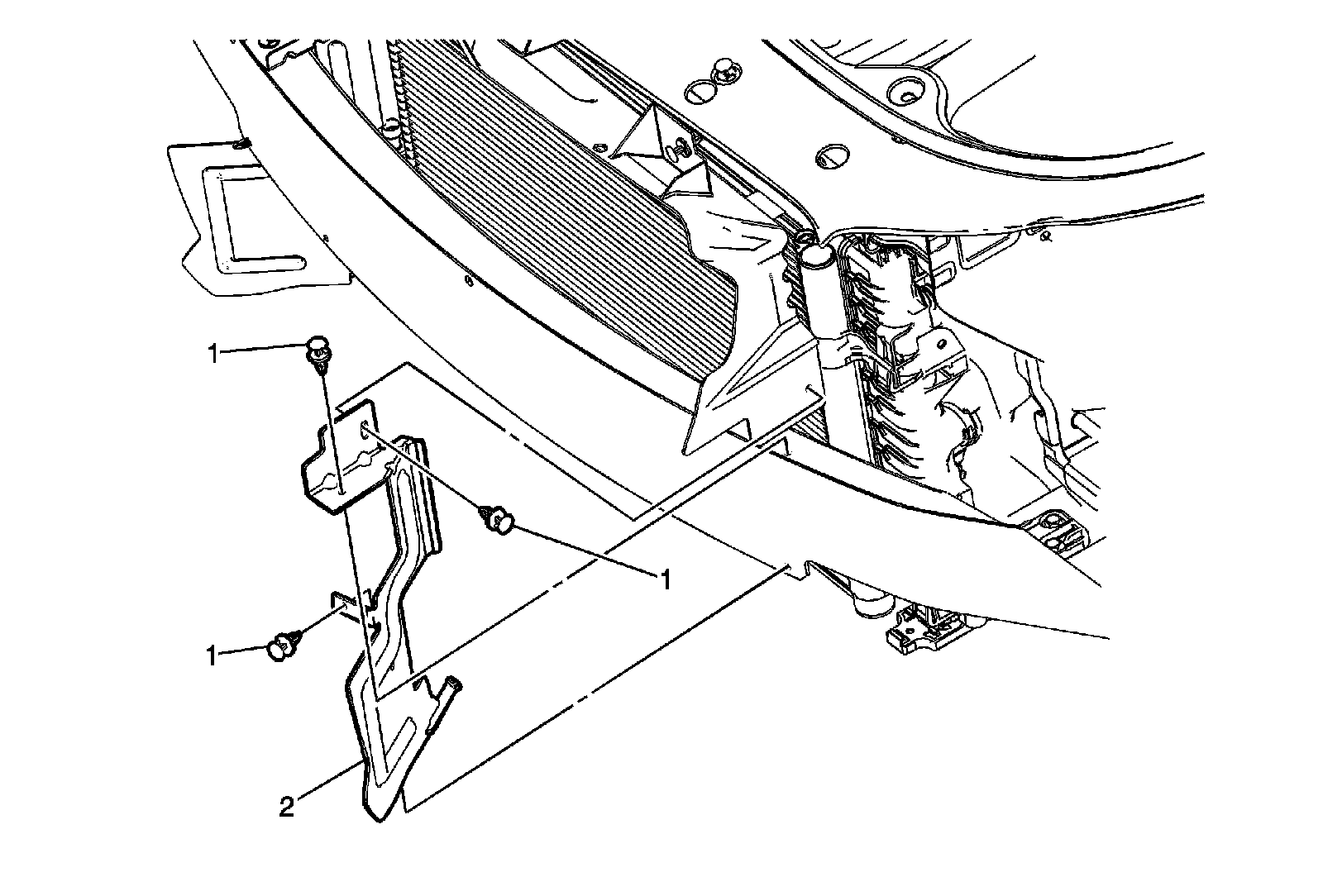

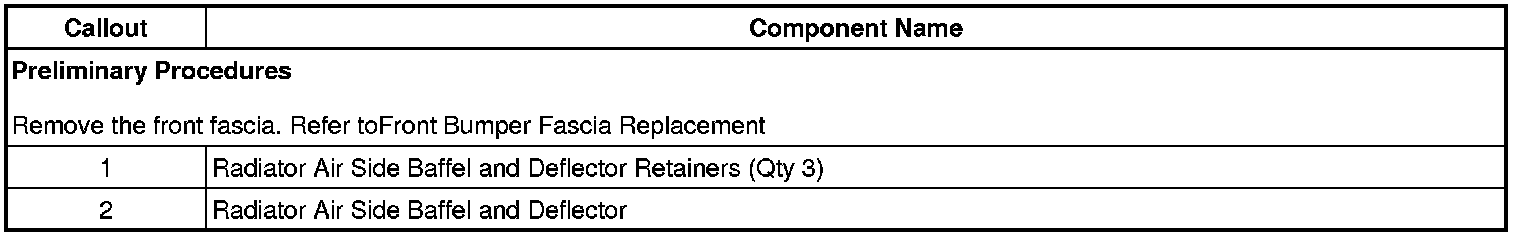

Radiator Air Side Baffle and Deflector Replacement (Left)
Radiator Air Side Baffle and Deflector Replacement (Left)
Radiator Air Side Baffle and Deflector Replacement (Left)
