Electrical Diagrams




Remote Function Schematics

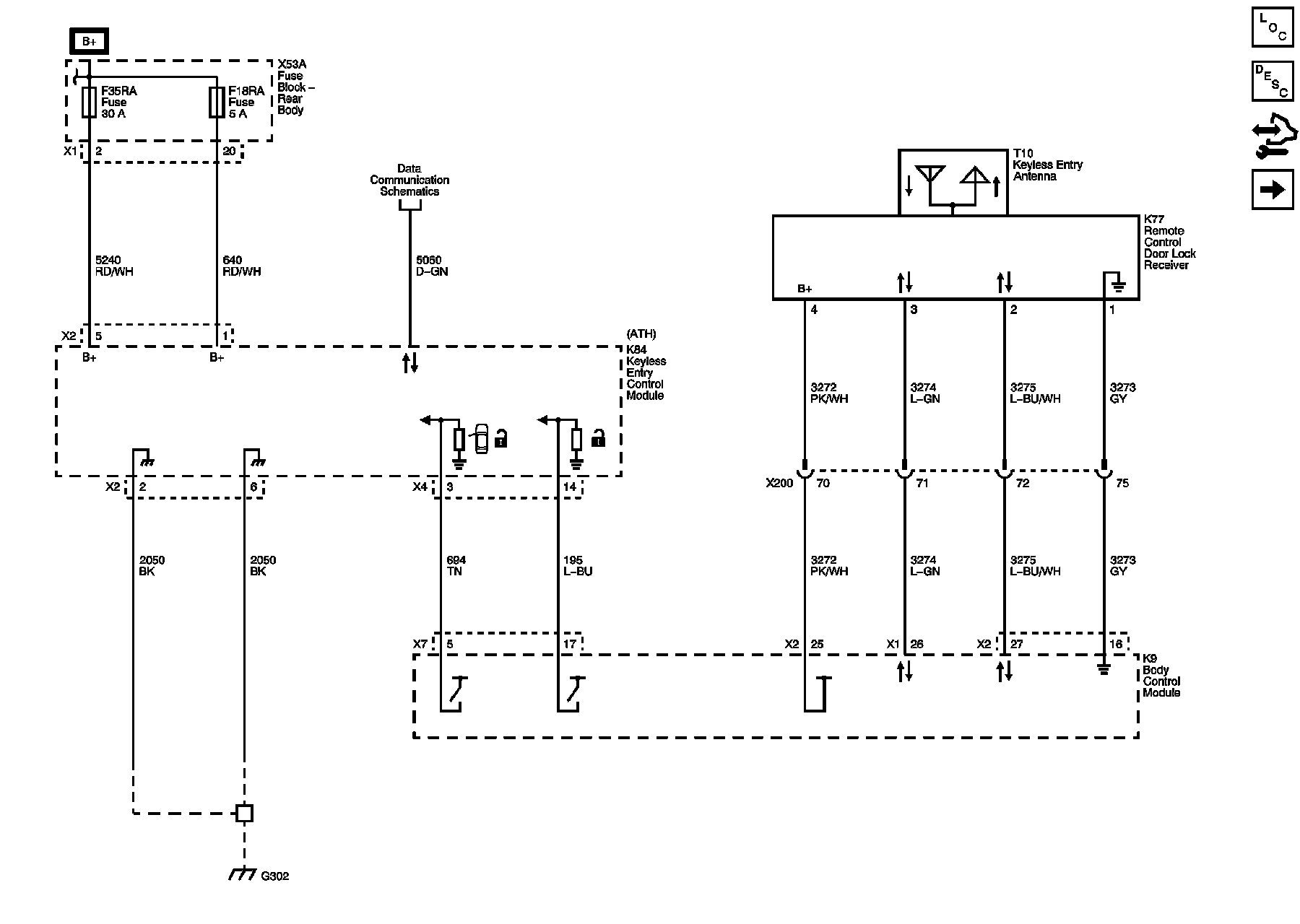

Module Power, Ground, Data Communication, and Controls

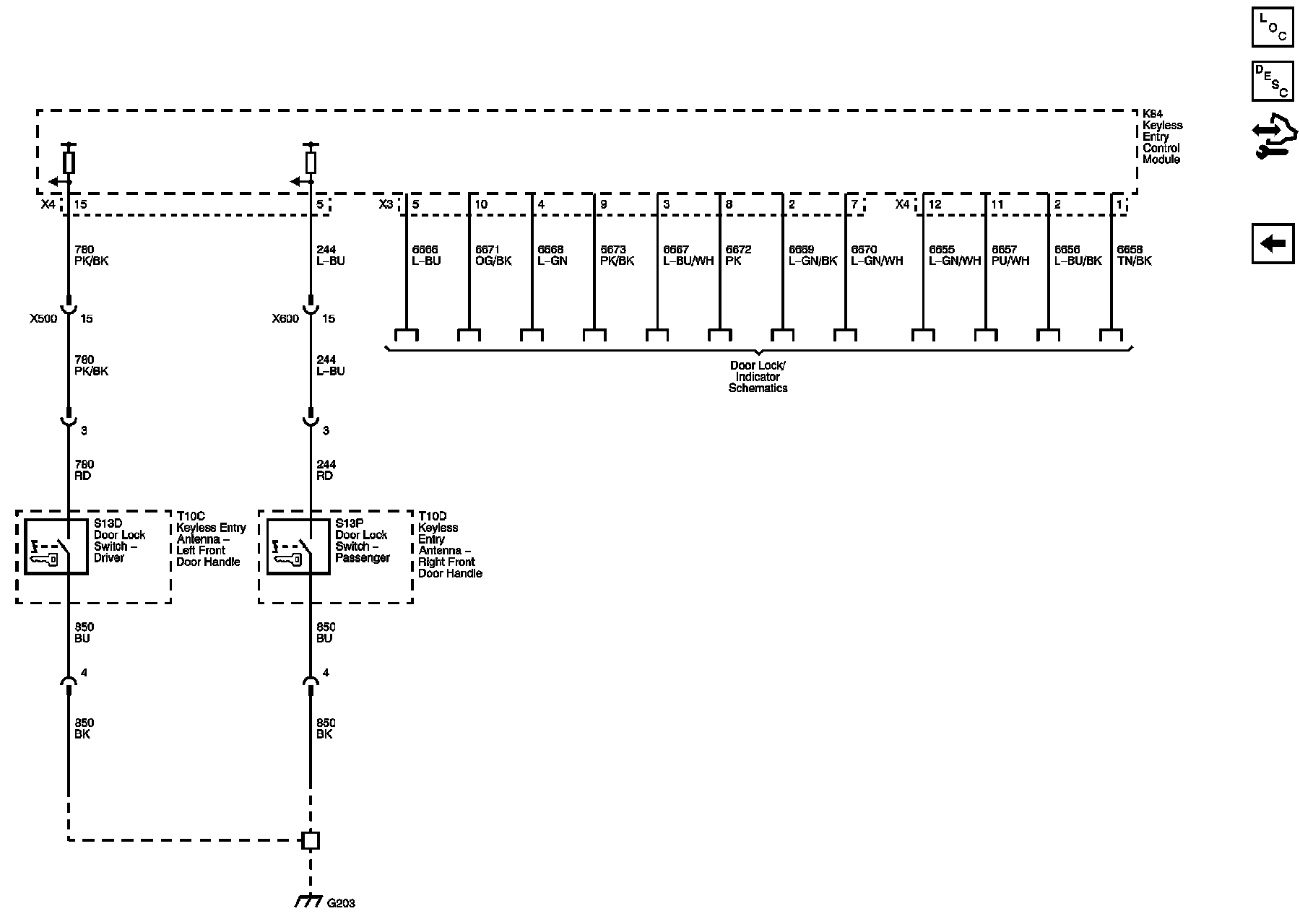

Passive Entry, Passive Start Antenna

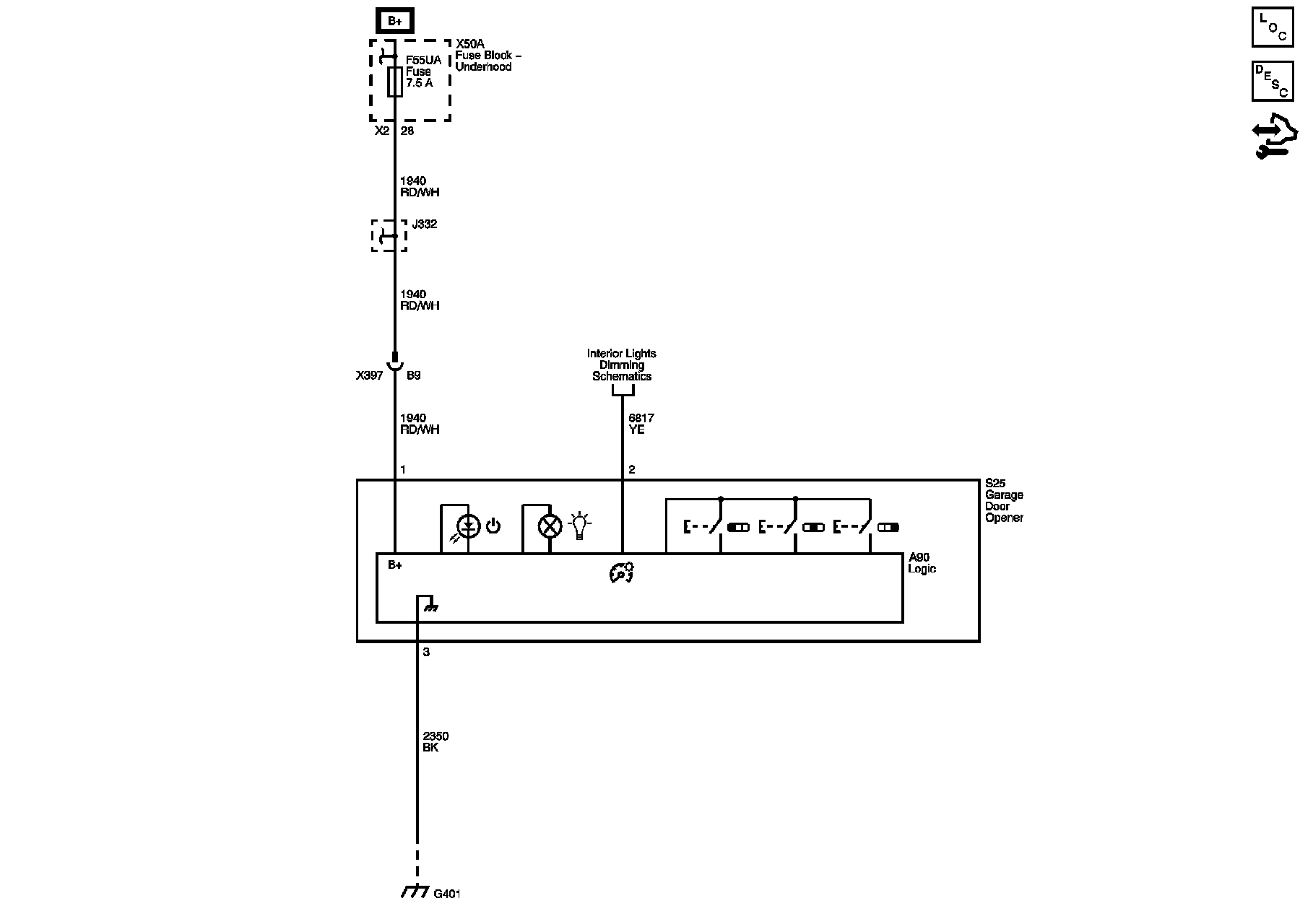

Garage Door Opener





References
