Air Injection Pressure Sensor/Switch
Air Injection Pressure Sensor/Switch

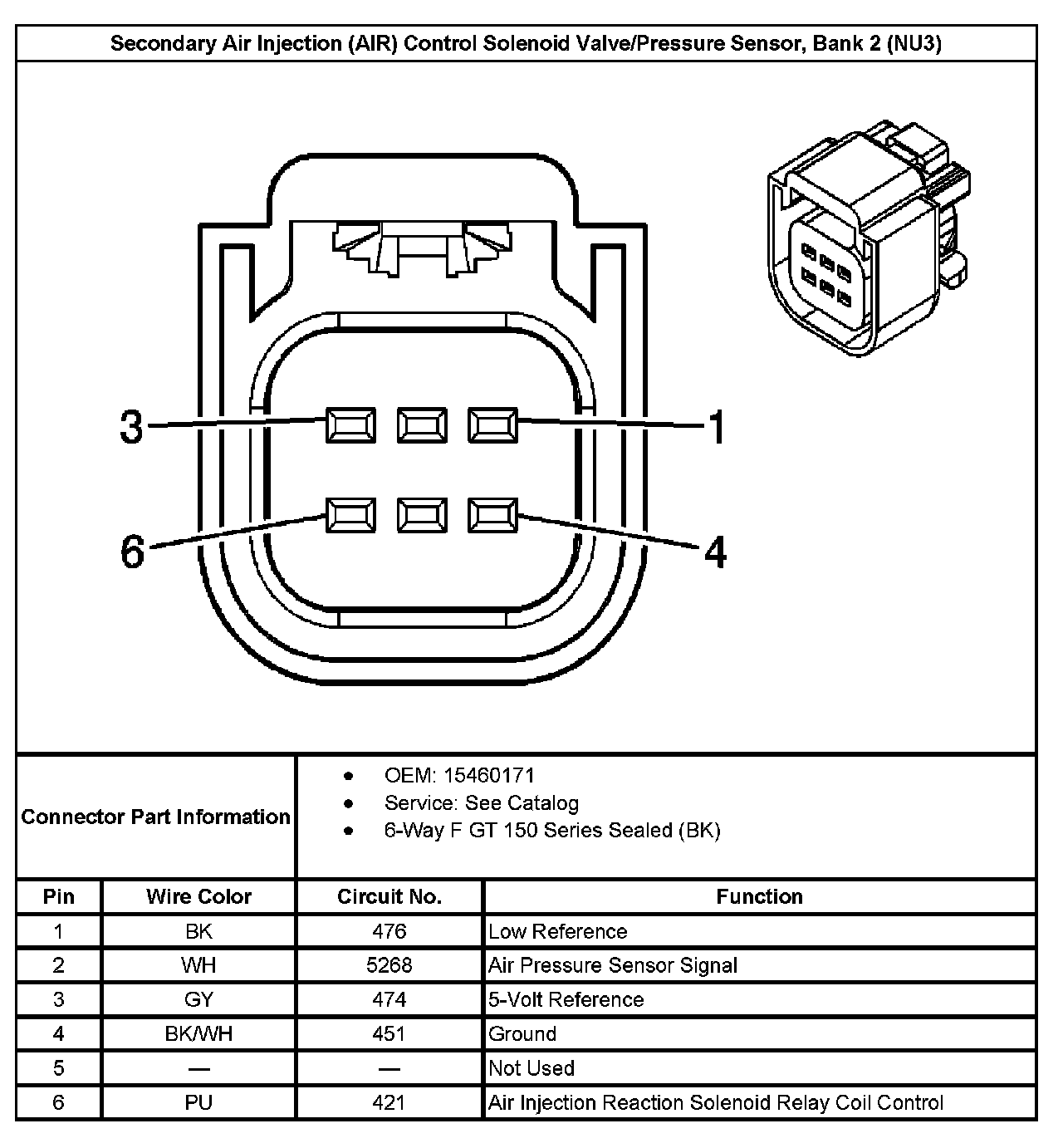

Secondary Air Injection (AIR) Control Solenoid Valve/Pressure Sensor, Bank 2 (With RPO Code NU3):
