Home >> Buick >> 2003 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List >> Electronic Brake Control Module (EBCM)

Electronic Brake Control Module (EBCM)

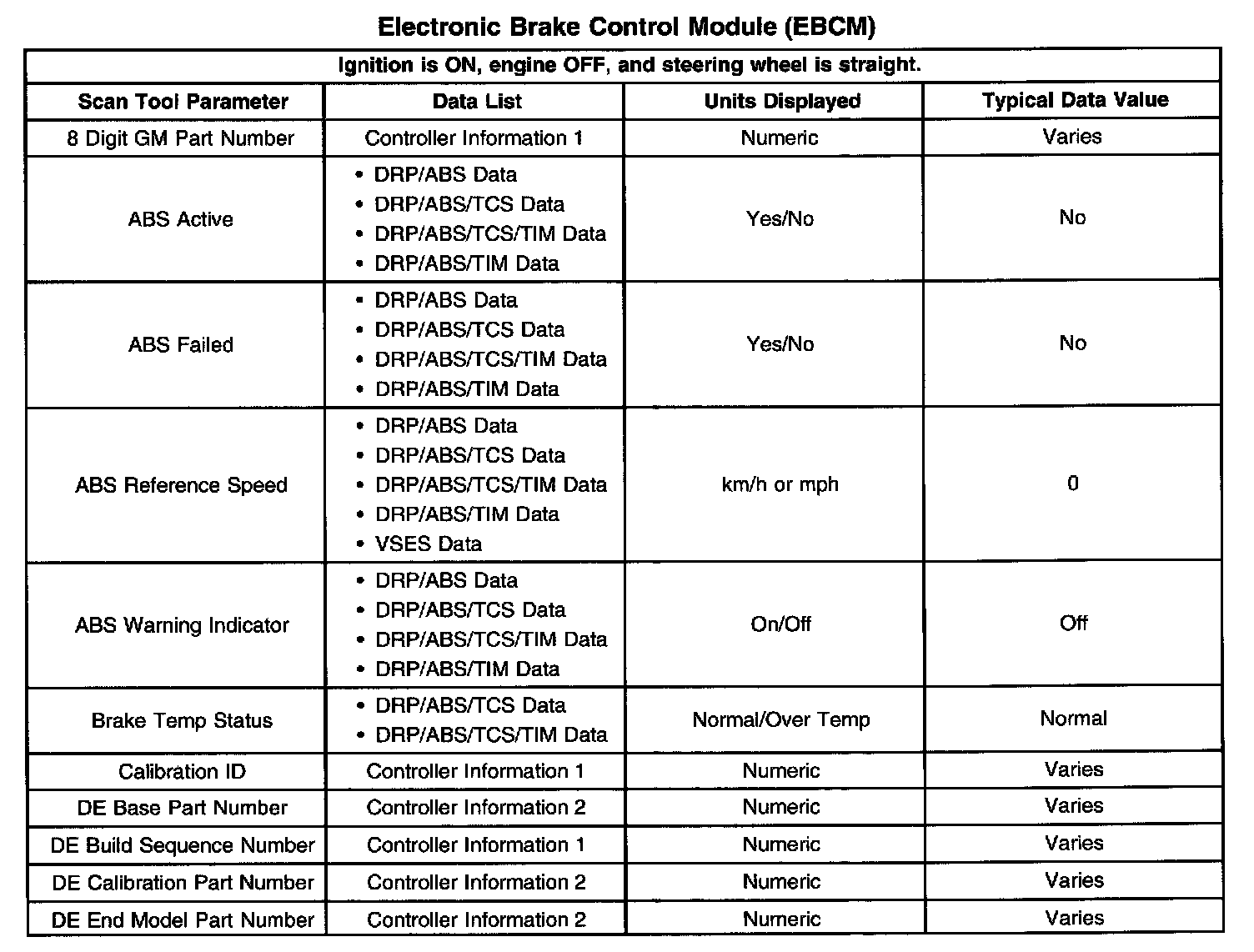

EBCM Scan Tool Data List:

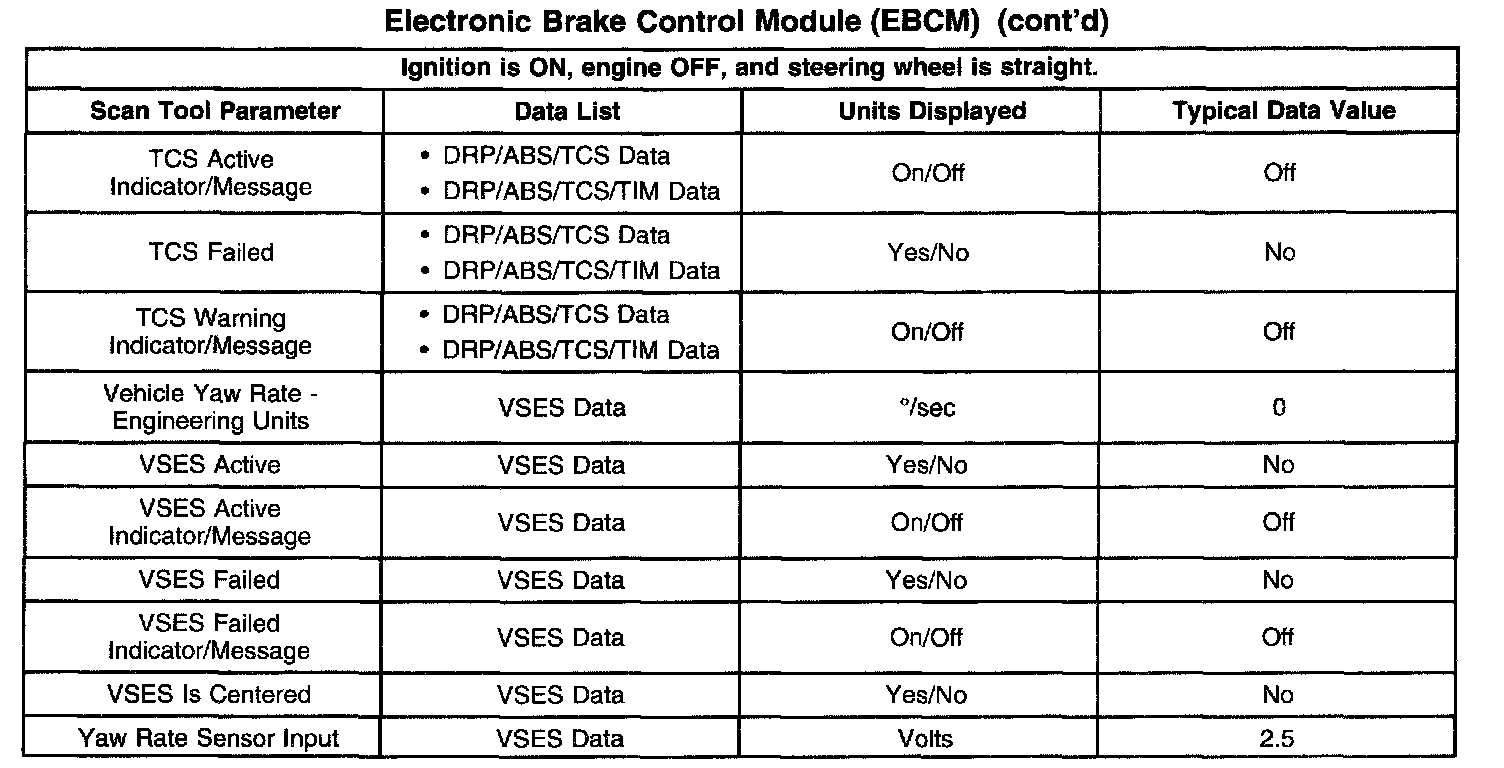

EBCM Scan Tool Data List (cont'd):

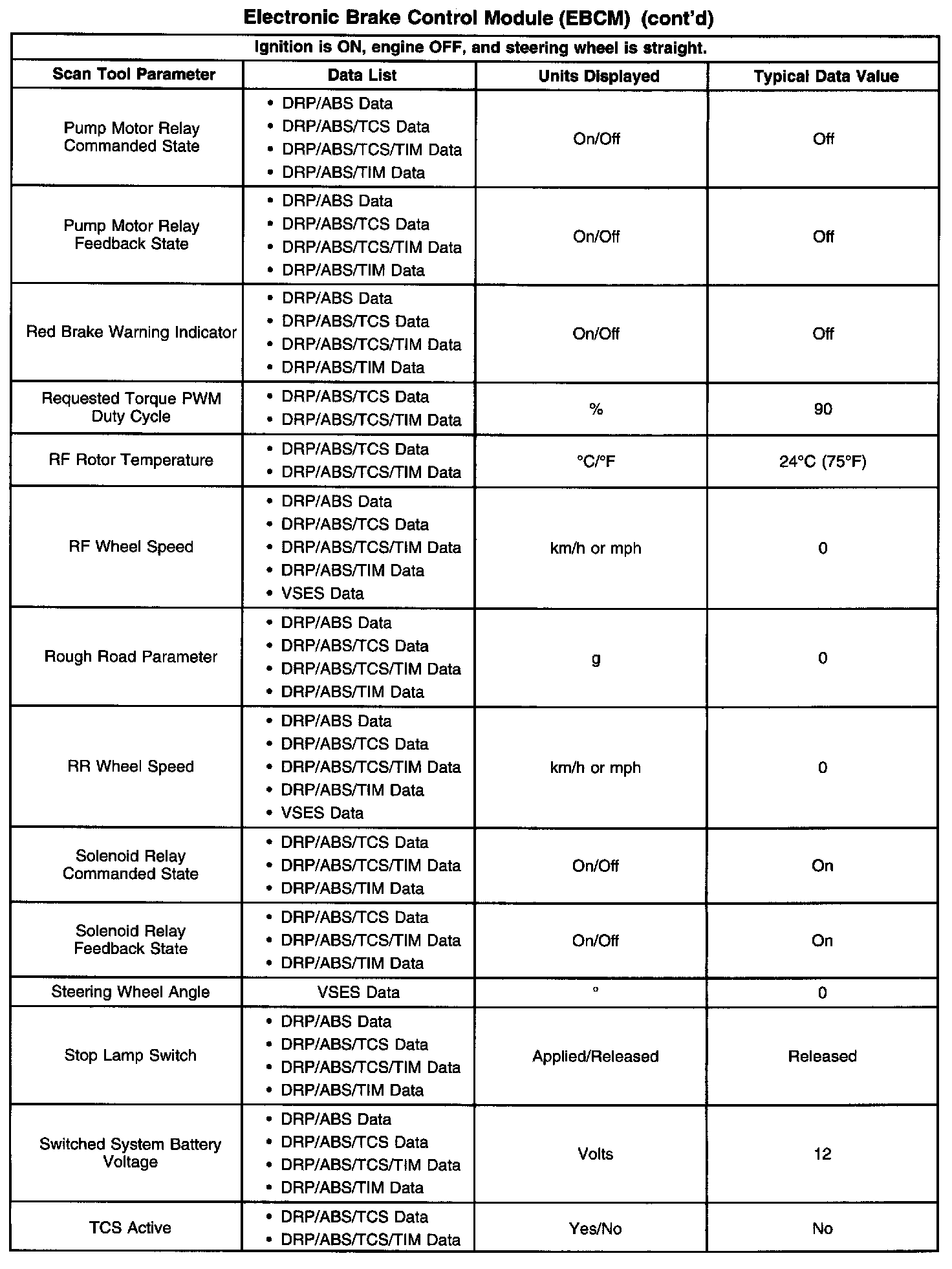

EBCM Scan Tool Data List (cont'd):

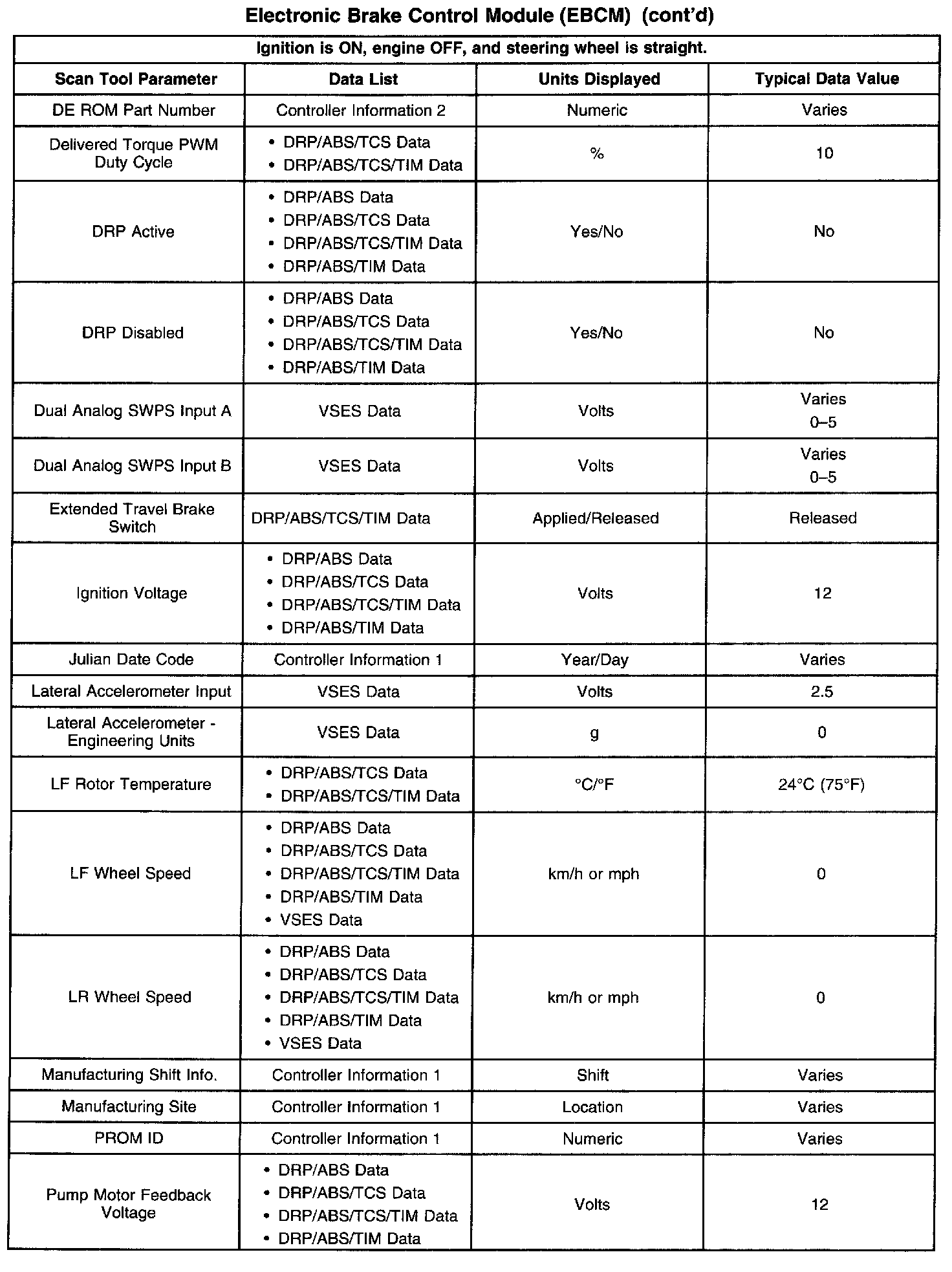

EBCM Scan Tool Data List (cont'd):
