Home >> Buick >> 2002 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Memory Seats Schematics >> Memory Function Switch

Memory Function Switch

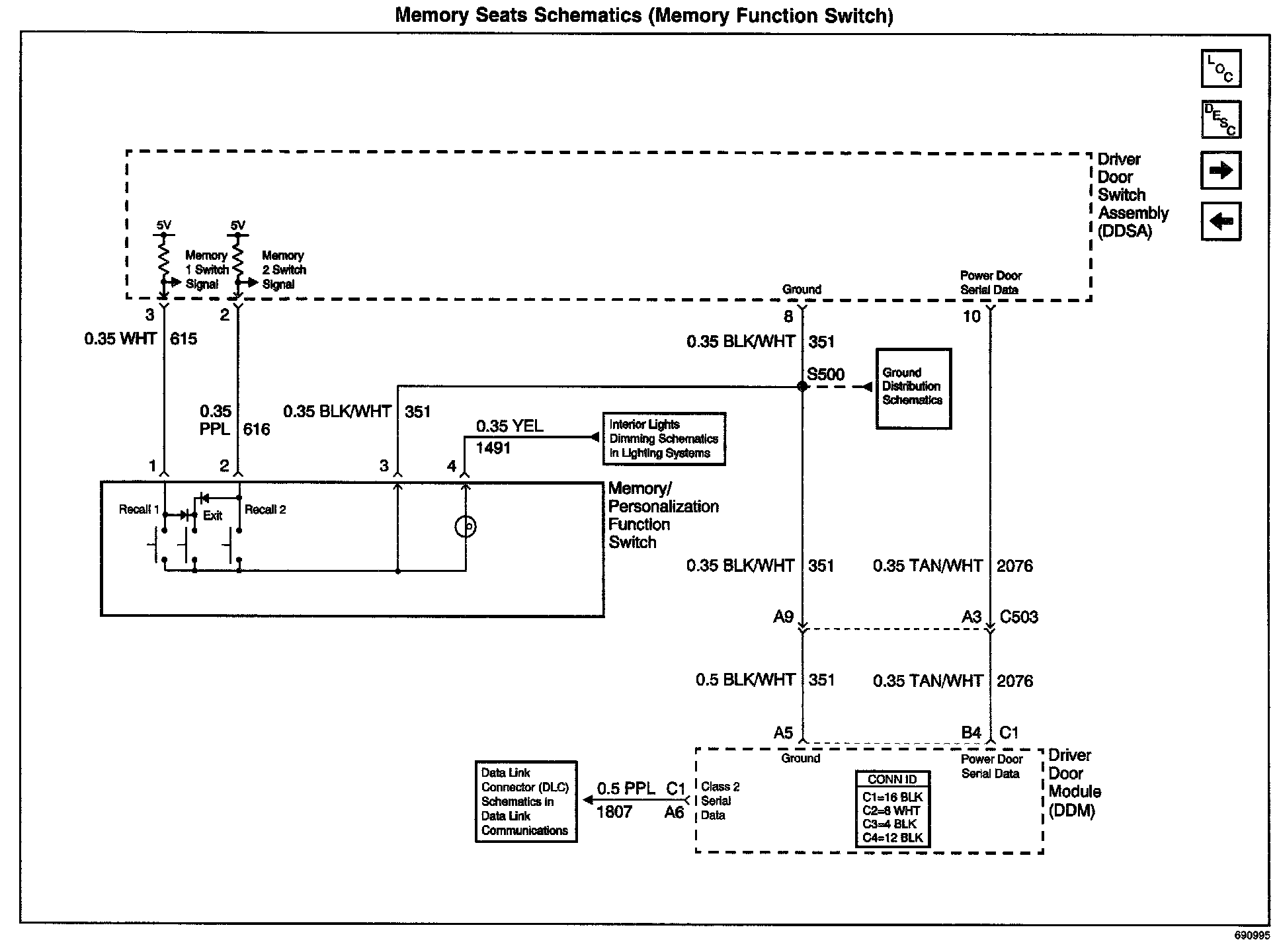

Memory Seats Schematics: Memory Function Switch:
